The "Mini Powerhouse" for Courtyard PV Systems. Compact Size, Massive Power-Fast and Precise Drilling!

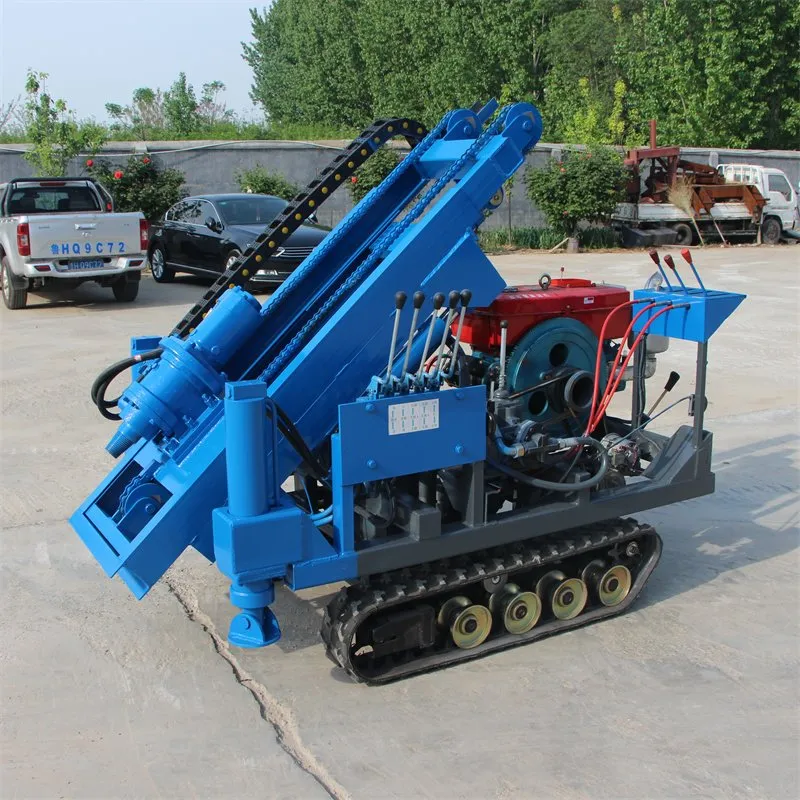

This TZ Courtyard Small Pile Driver is specifically engineered for small-scale photovoltaic projects in settings such as residential courtyards and vegetable gardens. Compact and agile, it delivers robust power; most importantly, it operates with ease even within confined spaces. Join us today as we demonstrate just how "capable" this machine truly is!

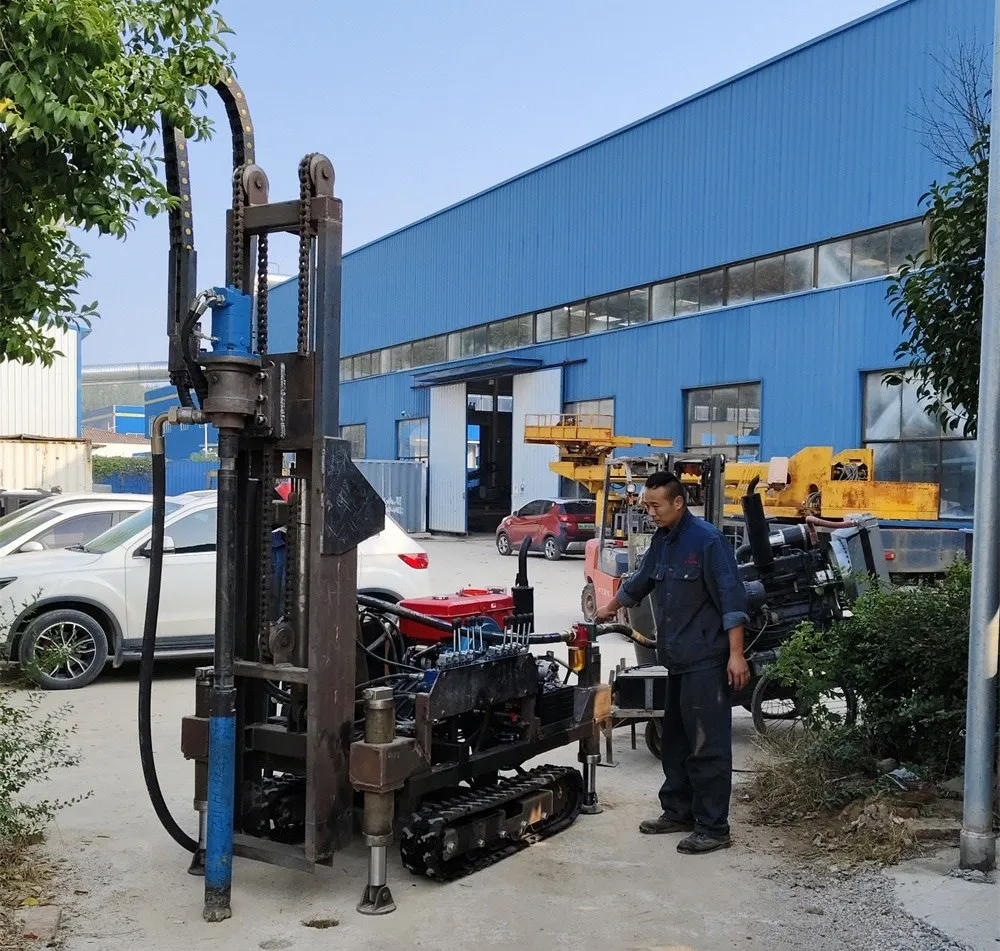

Compact Size, Massive Power
Miniature Dimensions: Measuring 2.5m in length, 1.1m in width, and 1.8m in height-significantly smaller than standard heavy machinery-it maneuvers effortlessly through courtyards, gardens, and narrow alleyways without ever getting "jammed."

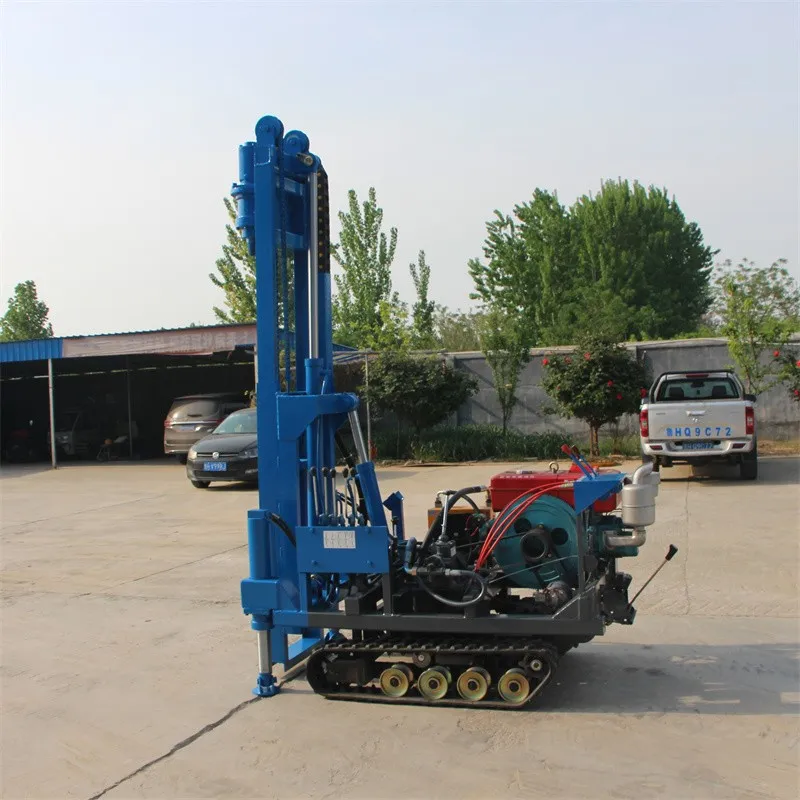

Agile Track System: Equipped with 1m-wide, 1.2m-long tracks that ensure stable ground contact. With a minimum ground clearance of 150mm, it easily traverses small steps and minor potholes. Its travel speed of 0–5 km/h makes repositioning incredibly convenient.
|
No. |
Item |
Specification |
|
1 |
Overall Dimensions |
2.5m (L) × 1.1m (W) × 1.8m (H) |
|
2 |
Crawler Size |
1.0m (W) × 1.2m (L) |
|
3 |
Applicable Rock Hardness |
f = 6–20 |
|
4 |
Drilling Diameter |
50–150 mm |
|
5 |
Economic Drilling Depth |
0–20 m |
|
6 |
Climbing Capacity |
≤ 30° |
|
7 |
Travel Speed |
0–5 km/h |
|
8 |
Min. Ground Clearance |
150 mm |
|
9 |
Mast Angle Range |
Depression 90° / Elevation 45° |
|
10 |
Single Feed Stroke |
1000–2400 mm |
|
11 |
Lifting Force |
0–2000 N |
|
12 |
Rotation Torque |
0–3000 N·m |
|
13 |
Rotation Speed |
0–150 rpm |
|
14 |
Working Air Pressure |
0.7–1.7 MPa |
|
15 |
Air Consumption |
5–18 m³/min |
|
16 |
Power Source |
32 HP single-cylinder diesel engine |
|
17 |
Operating Weight |
Approx. 1200 kg |
|
18 |
Customization |
Custom screw pile driver available on request |

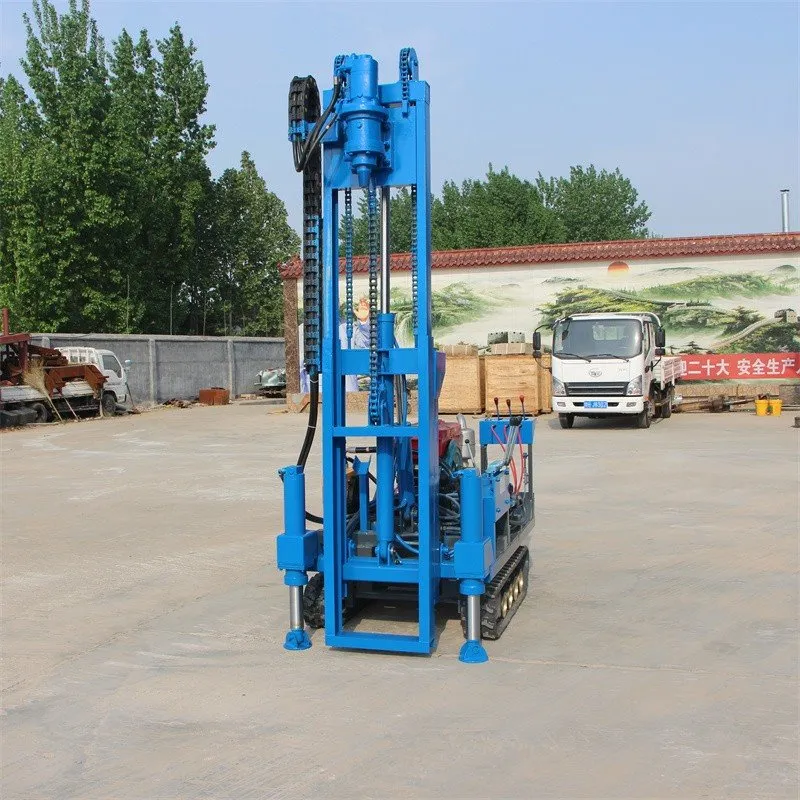

Robust Power
Powerful Engine: Features a 32-horsepower single-cylinder diesel engine that delivers stable power output. It is capable of drilling holes with diameters ranging from 50mm to 150mm (with an economical drilling depth of 0–20 meters), effortlessly penetrating through everything from loose soil to rock formations with a hardness rating of f=6–20.
Stable Hydraulic System: Boasts a rotation torque of 0–3000 N·m, a rotational speed of 0–150 RPM, and a lifting force of 0–2000 N. This ensures fast, steady drilling-preventing hole deviation and drill bit jamming.

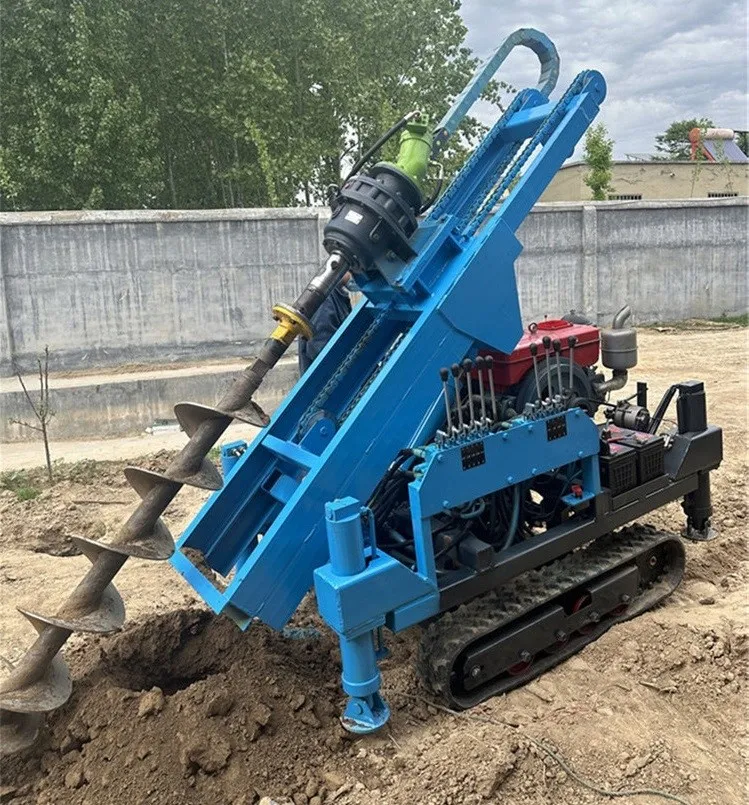

Flexible Adjustment
Flexible Carriage Angle: The drilling carriage offers a wide range of motion-tilting downward 90° and upward 45°. With a single-pass feed length of 1000–2400mm, it can drill both vertical and angled holes, allowing for precise alignment even on courtyard slopes or in tight corners.
Strong Climbing Capability: With a climbing capacity of ≤30°, it easily ascends gentle slopes within courtyards and traverses field ridges without ever getting "bogged down." IV. Thoughtful Details, Customized Service for "Total Peace of Mind"
Low Air Consumption: Operating air pressure of 0.7–1.7 MPa; air consumption of 5–18 m³/min-fuel-efficient and highly productive.
Customized Service: Pile drivers can be custom-built to meet specific client requirements, satisfying the unique needs of various small-scale photovoltaic (PV) projects.

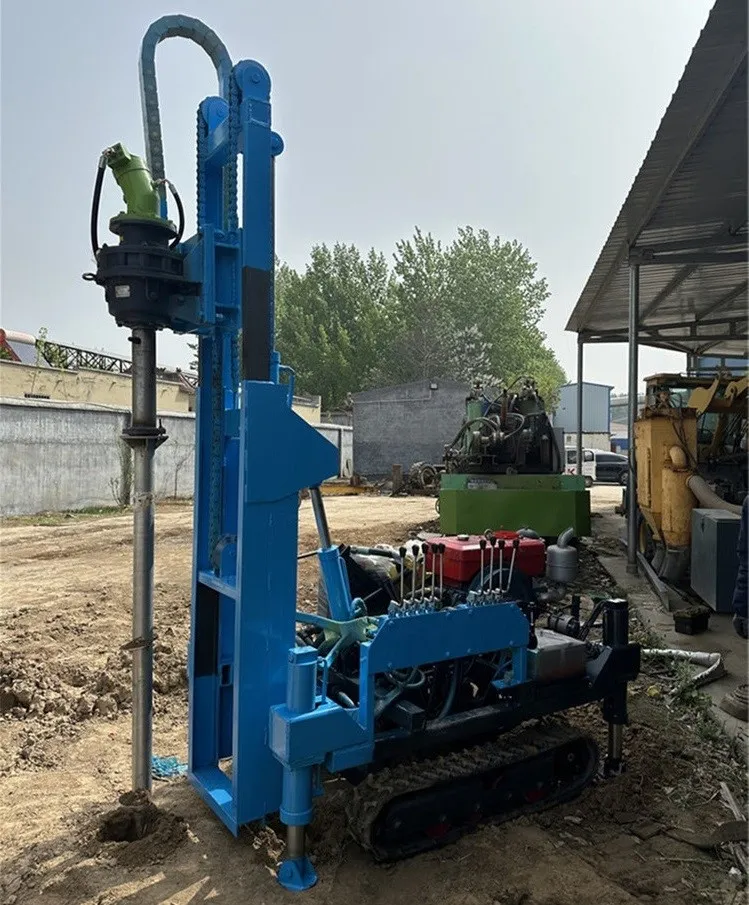

Ideal Applications
Residential PV: Pile driving in small yards-compact and agile, ensuring no damage to the garden environment;
Vegetable Garden PV: Integrating PV systems into vegetable gardens-its small footprint ensures it does not interfere with crop growth;
Small Outdoor Projects: Drilling holes for guardrails, street light foundations, and other small-diameter hole requirements-it handles them all with ease.
In a Nutshell: The TZ "Courtyard" Small Pile Driver-compact size, immense power. It is the ultimate "money-saving tool" for small-scale PV projects-a compact powerhouse ready to tackle your work with maximum efficiency!
