Products Description

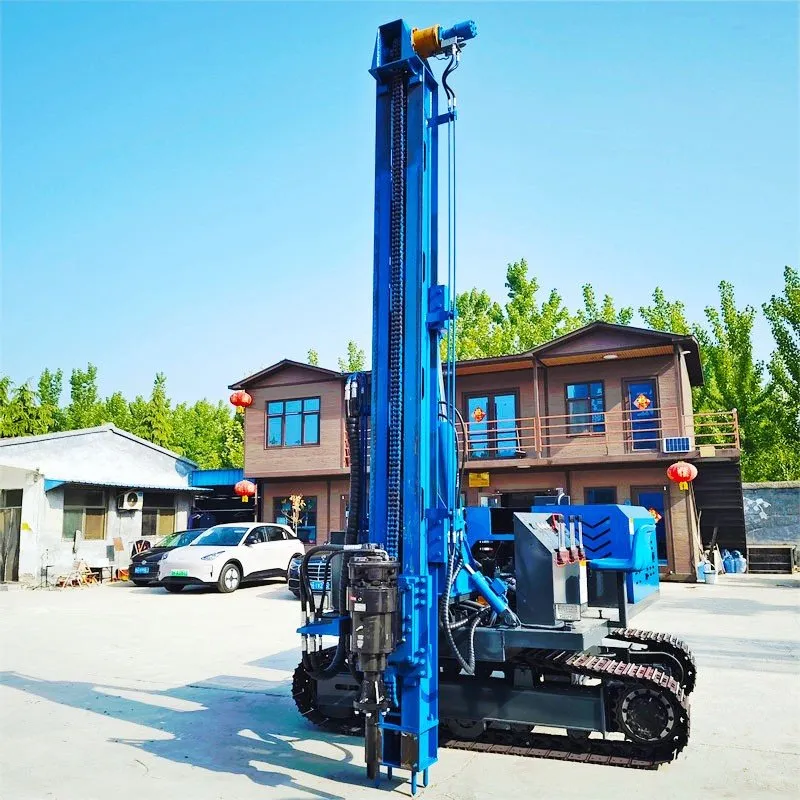

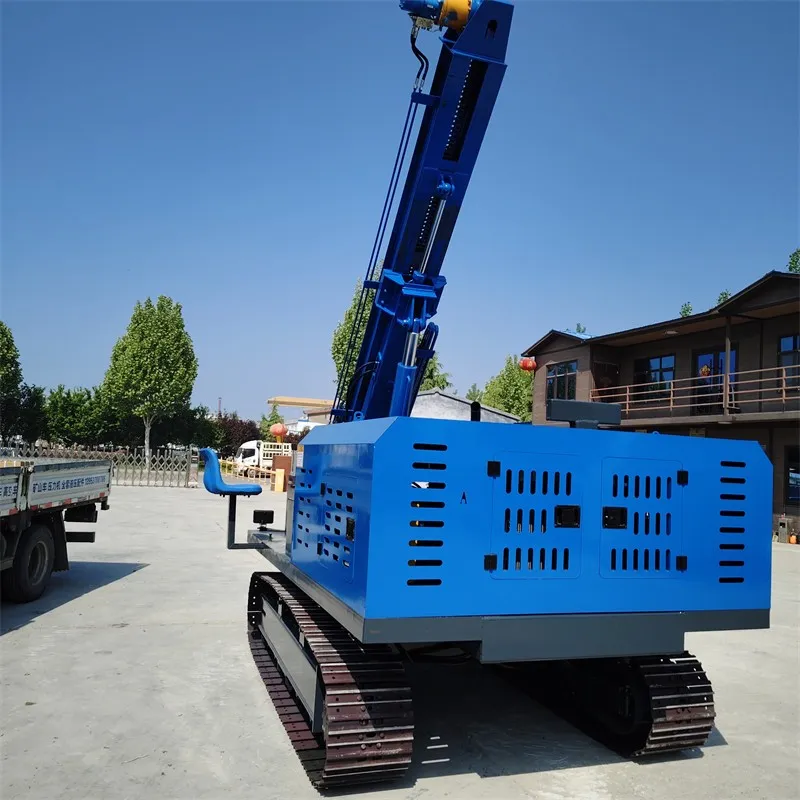

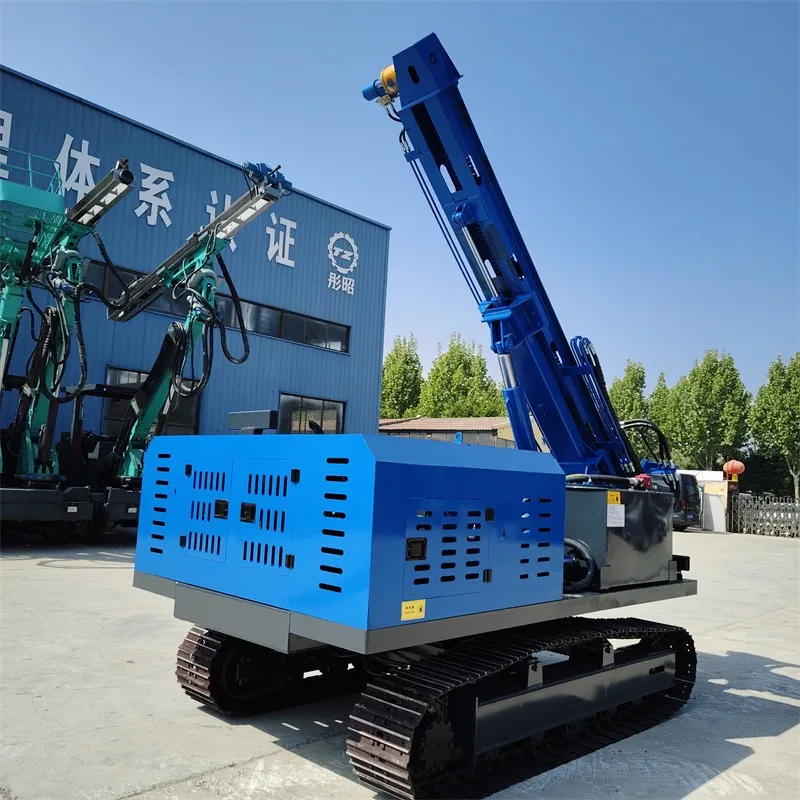

Model TZ-400 Solar Piling Machine:
The Model TZ-400 solar piling machine is engineered specifically for the "tough battles" of photovoltaic power plants and outdoor piling projects. Boasting robust power and smooth operation-and, crucially, exceptional ruggedness and durability-let us walk you through exactly what makes this machine so "impressive"!
|
Parameter |
Specification |
|
Model |
TZ-400 |
|
Chassis |
8 ton excavator chassis |
|
Travel motor |
TM10 |
|
Lower swing angle |
360° |
|
Swing bearing |
1 m internal tooth |
|
Upper swing angle |
45° |
|
Diesel engine (options) |
6105 Yuchai power / 4015 Yuchai power |
|
Hydraulic motors |
Dual hydraulic motor / five star motor |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
4 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |
Fierce Power: Drilling Without Lagging Behind
Robust Engine: Powered by either a Yuchai 6105 or 4015 diesel engine-both "veterans" of the construction site known for their immense power and resilience-this machine handles everything from loose soil to harder gravel layers with ease. With a simple press of the accelerator, the drill rod plunges rapidly and decisively into the ground, getting the job done without any hesitation.

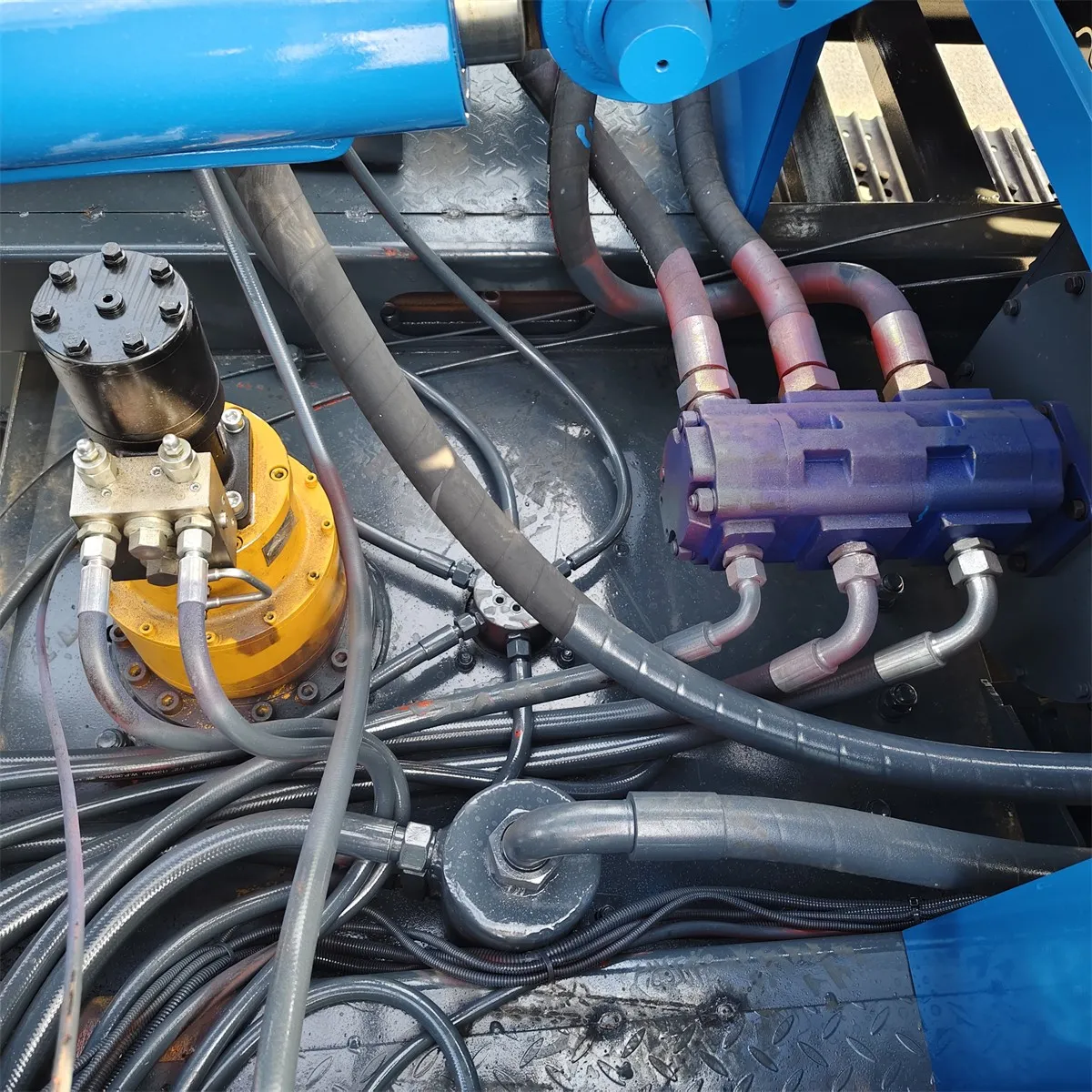

Powerful Hydraulic System: Driven by dual hydraulic motors (or a five-star motor) powering the rotary head, the system delivers a hydraulic oil flow of 80–158 liters per minute at a pressure of 20 MPa. This acts like a "turbocharger" for the drill rod, ensuring rapid drilling speeds while significantly reducing the risk of jamming.
Agile Mobility: Stable Footing on Any Terrain

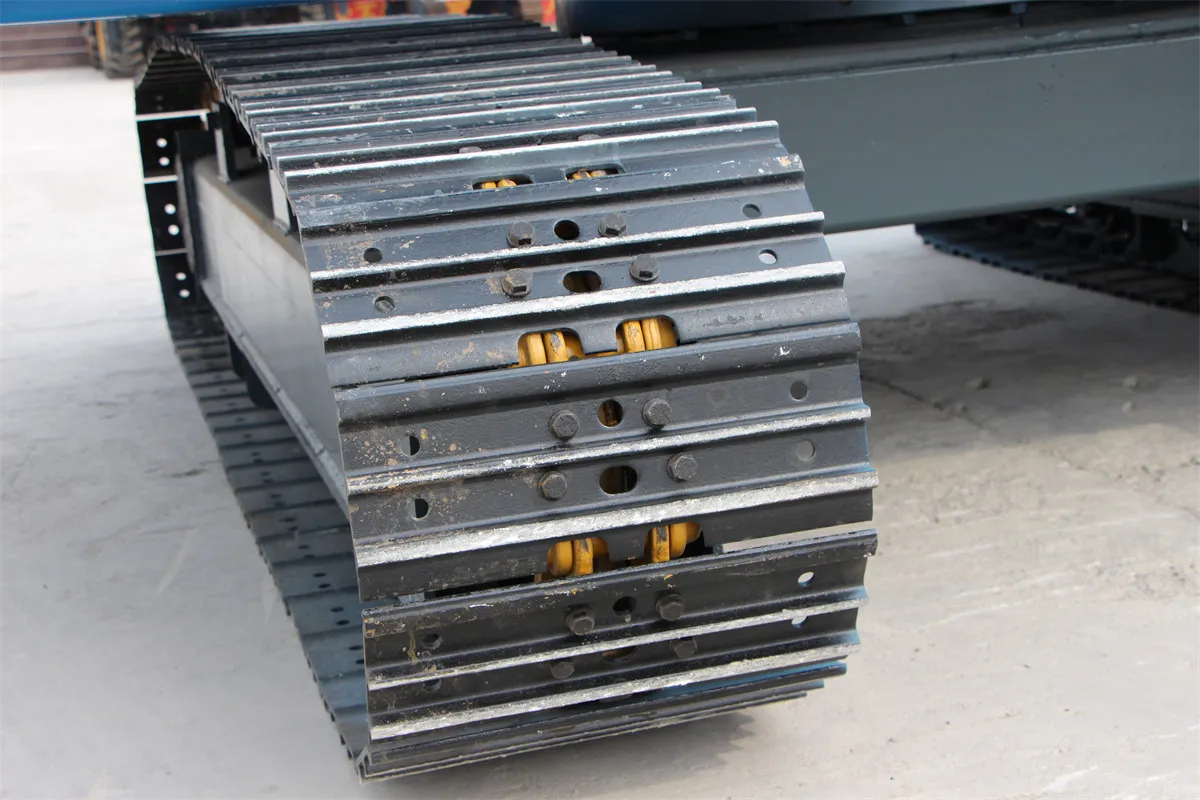

Solid Chassis: Built upon an 8-ton excavator chassis, the machine features wide tracks that provide a stable ground grip. It can traverse muddy fields and gravel-strewn sites without getting bogged down. With a travel speed of 2.5–3 km/h, it can reposition itself within a job site or move short distances between locations under its own power, eliminating the need for a separate transport vehicle.
Flexible Steering: Featuring a 360° lower rotation range, a 45° upper rotation range, and an internal-gear slewing bearing with a 1-meter diameter, the rig can effectively "turn in place." This allows for easy angle adjustments and precise alignment with drilling points, even in tight corners or narrow alleys. Additionally, the boom can be adjusted both fore-and-aft and in terms of angle, making it perfectly capable of drilling both inclined and deep holes.
Reliable Details: No "Strikes" Even During Long Shifts

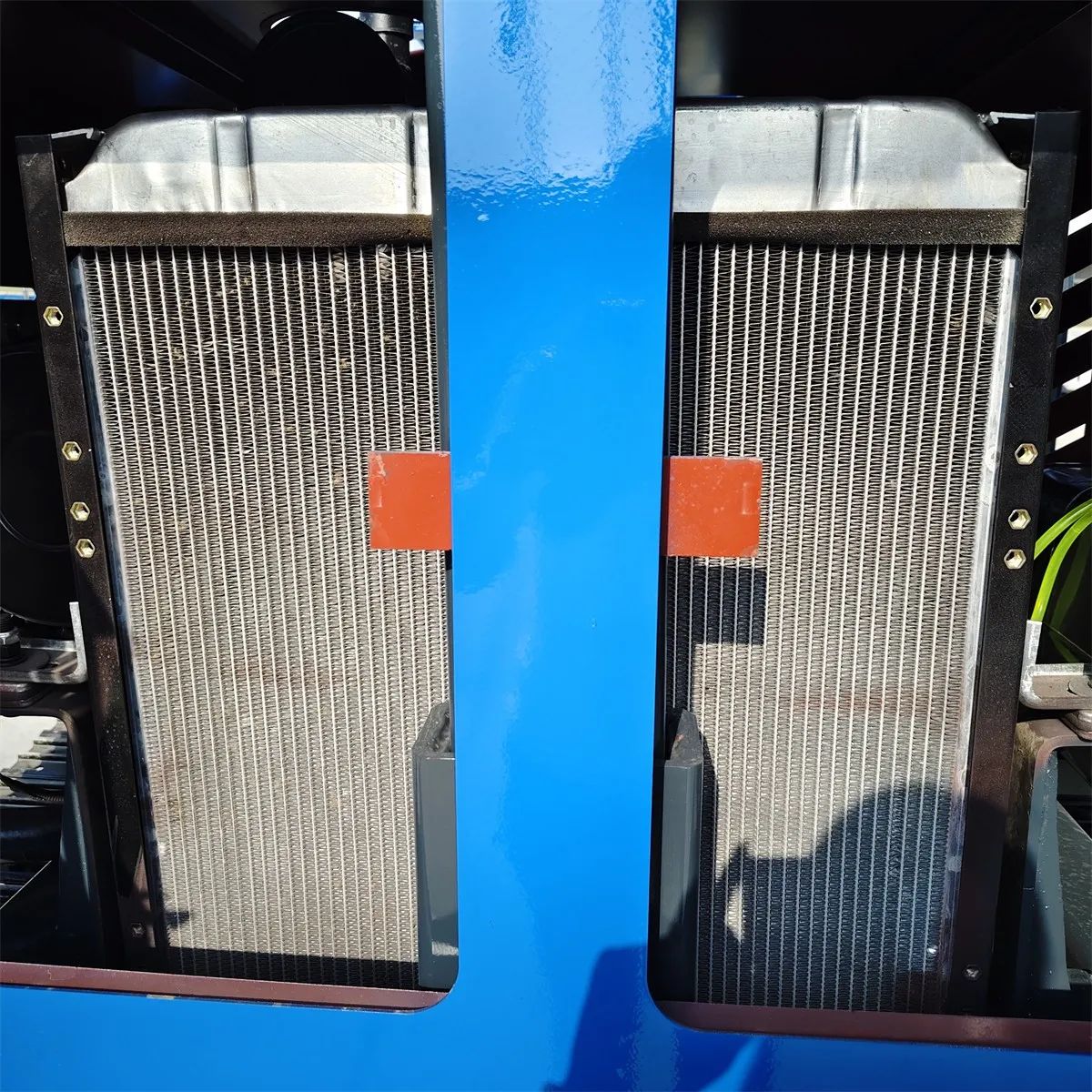

Effective Cooling: Equipped with dual electronic hydraulic oil radiators, the machine ensures that hydraulic oil temperatures remain within safe limits even during continuous operation in the summer heat. This prevents the machine from "overheating," thereby maximizing its overall durability and service life. Drilling Capability: Capable of drilling to a depth of 4 meters (custom depths are available upon request). With a hole diameter range of 300–500 mm, it can effortlessly handle a wide variety of tasks-whether drilling holes for solar piles, guardrail posts, or small-scale foundations.
Convenient Transport & Compact Footprint
Our solar piling machine weighs approximately 5 tons in total. With a chassis measuring 3 meters by 2.2 meters and an overall length of just 3 meters, it occupies minimal space-whether being transported on a flatbed truck or repositioned around a job site. Its compact size allows for flexible operation even in confined or limited-space environments.
Summary: Who is this Solar Piling Machine for?
For Solar Power Developers: Ideal for high-volume pile drilling; offers high efficiency and precise hole positioning, performing the work of several manual laborers in a single day.
For example, in the construction of a photovoltaic power station in a mountainous area, Our equipment is particularly well-suited for mountainous and hilly terrain; featuring a low center of gravity and excellent resistance to tipping, it ensures safer operations on slopes.
In Short: The TZ-400 is the ultimate "workhorse" for solar construction sites-powerful, agile, and built to last. It's a rugged, reliable partner that you can count on to help you generate revenue!
