Products Description

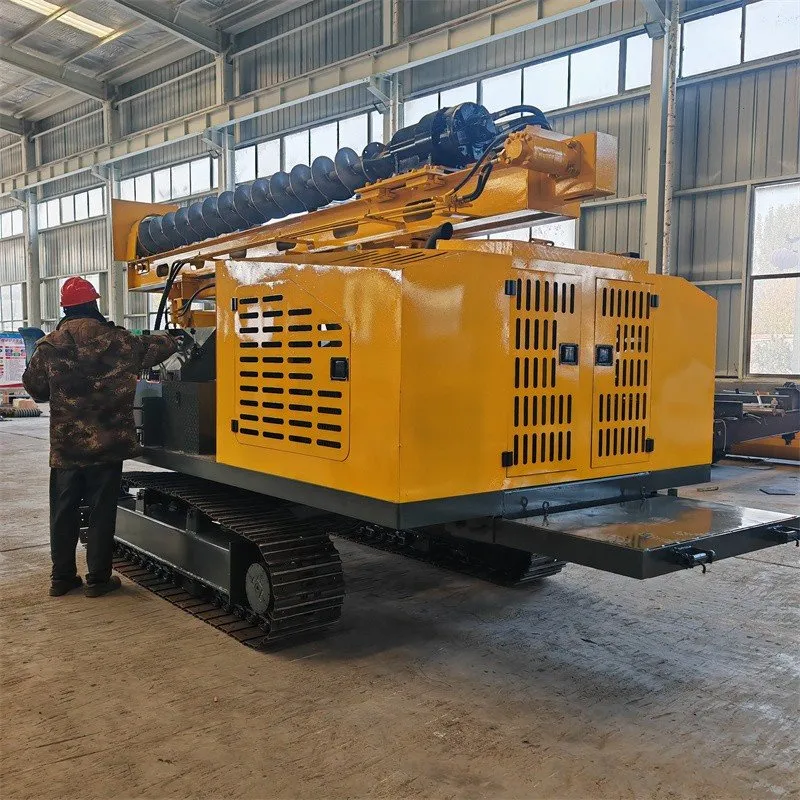

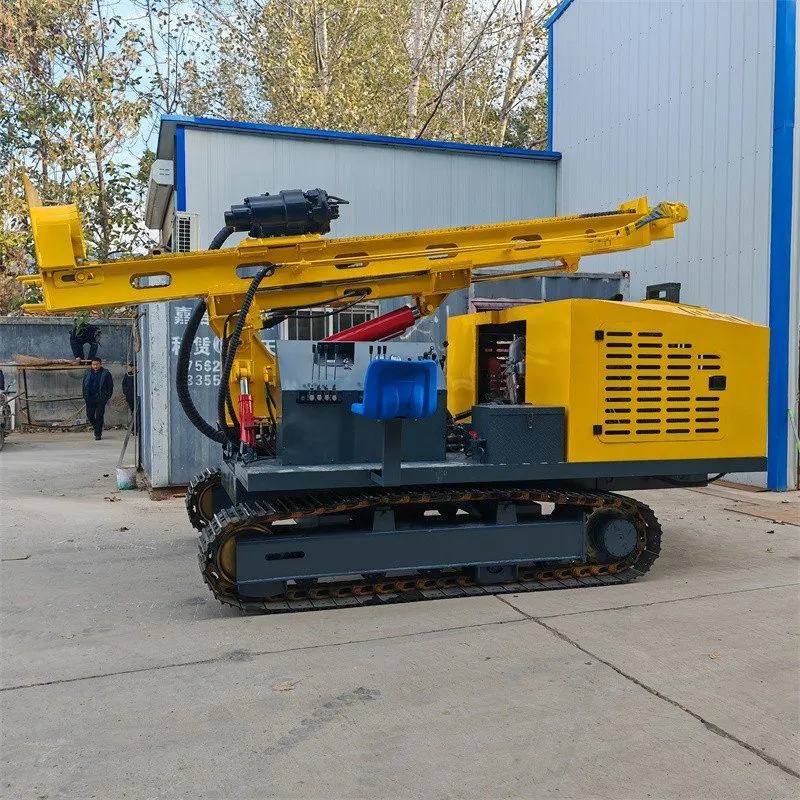

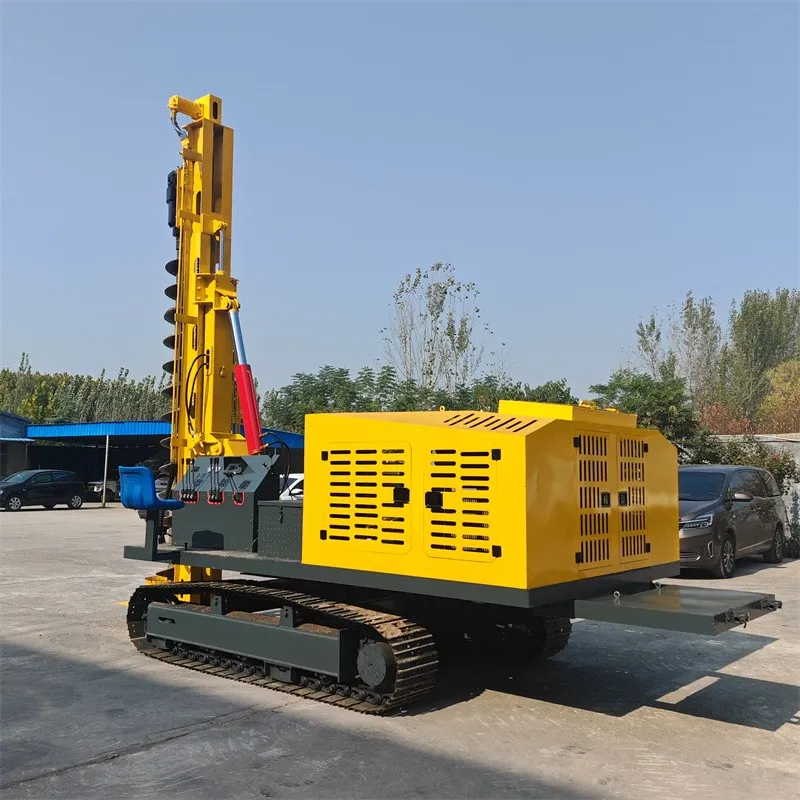

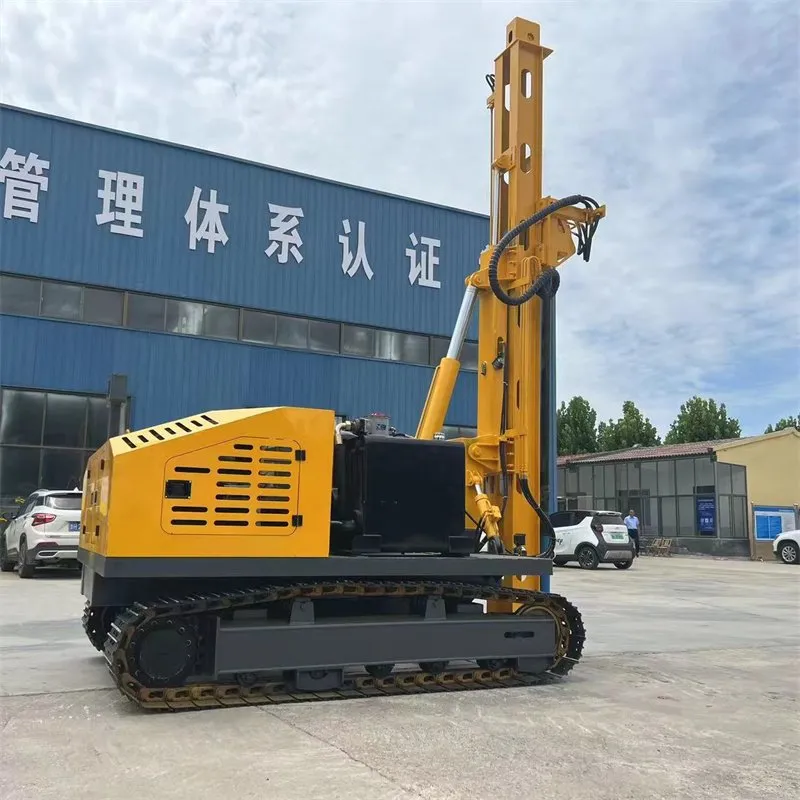

Model TZ-300B diesel powered pile driver: The Jobsite's "Fuel-Efficient Powerhouse"-Robust Power, Stable Chassis, Effortlessly Handles Deep Holes in Hard Ground
The Model TZ-300B diesel powered pile driver is engineered specifically for the "tough battles" of photovoltaic construction sites and outdoor deep-hole piling projects. Its core design centers on a "diesel engine + excavator chassis" combination-delivering immense power and rock-solid stability, while remaining remarkably fuel-efficient and durable. Today, let's take a closer look at just how "hardcore" this machine truly is!
|
Parameter |
Specification |
|
Model |
TZ-300B |
|
Chassis |
8-ton excavator chassis |
|
Travel motor |
TM10 |
|
Engine |
Yuchai Power(options: 6105 Yuchai / 4015 Yuchai) |
|
Hydraulic motors |
Dual hydraulic motor / five-star motor |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
3 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |
The Champion of Fuel Efficiency-Powerful and Built to Last
A "Hardcore" Engine: It is equipped with either a Yuchai 6105 or 4015 diesel engine-both are "old reliable" partners on construction sites, known for their stable power output. Whether working in loose soil or hard gravel layers, a simple press of the accelerator ensures the drill rod penetrates "steadily and smoothly," without the "lack of force" often associated with lower-powered machines.
Robust Hydraulic System: Dual hydraulic motors (or a five-star motor) drive the power head, delivering a hydraulic oil flow of 80–158 liters per minute at a pressure of 20 MPa. This acts like a "turbocharger" for the drill rod, enabling rapid drilling speeds while minimizing the risk of jamming. It is also significantly more durable than electric-powered machines of equivalent output.
Excavator Chassis
Stable as a Mountain-Unafraid of Muddy or Sloped Terrain
Solid Foundation: Built upon an 8-ton excavator chassis, it features wide tracks that ensure stable ground contact. It can traverse muddy ground and gravel-strewn areas without getting bogged down. The complete unit weighs approximately 5 tons, with a chassis footprint of 3m x 2.2m (3 meters in length), making site-to-site transfers convenient and allowing for flexible operation even in confined spaces.

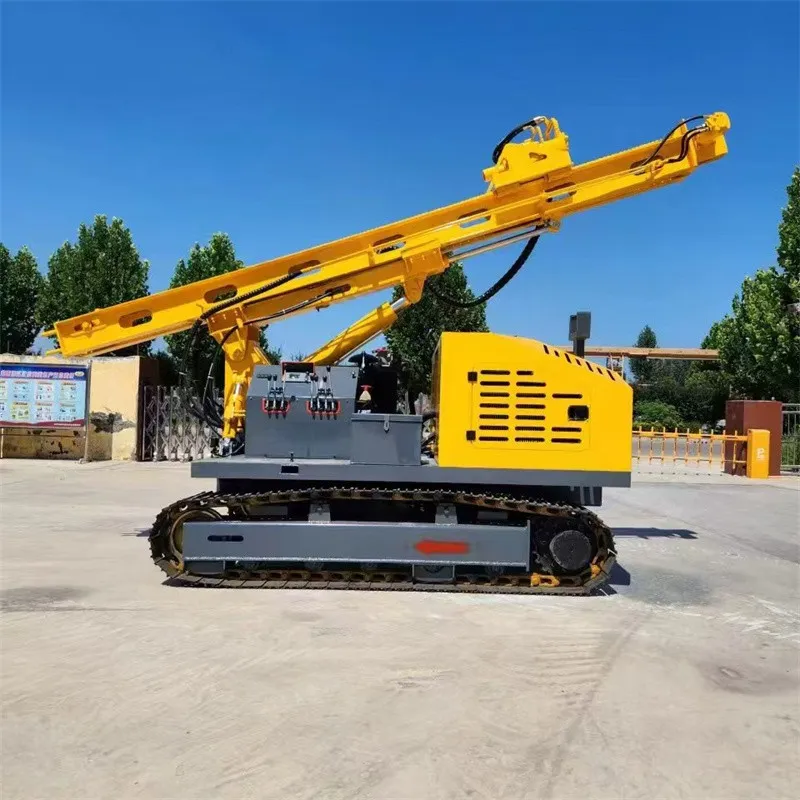

Agile Mobility: With a travel speed of 2.5–3 km/h, the machine can reposition itself within the jobsite or handle short-distance transfers under its own power, eliminating the need for a separate transport vehicle. Furthermore, the boom arm can be adjusted both fore-and-aft and in terms of angle, making it effortless to drill angled holes or deep vertical holes.

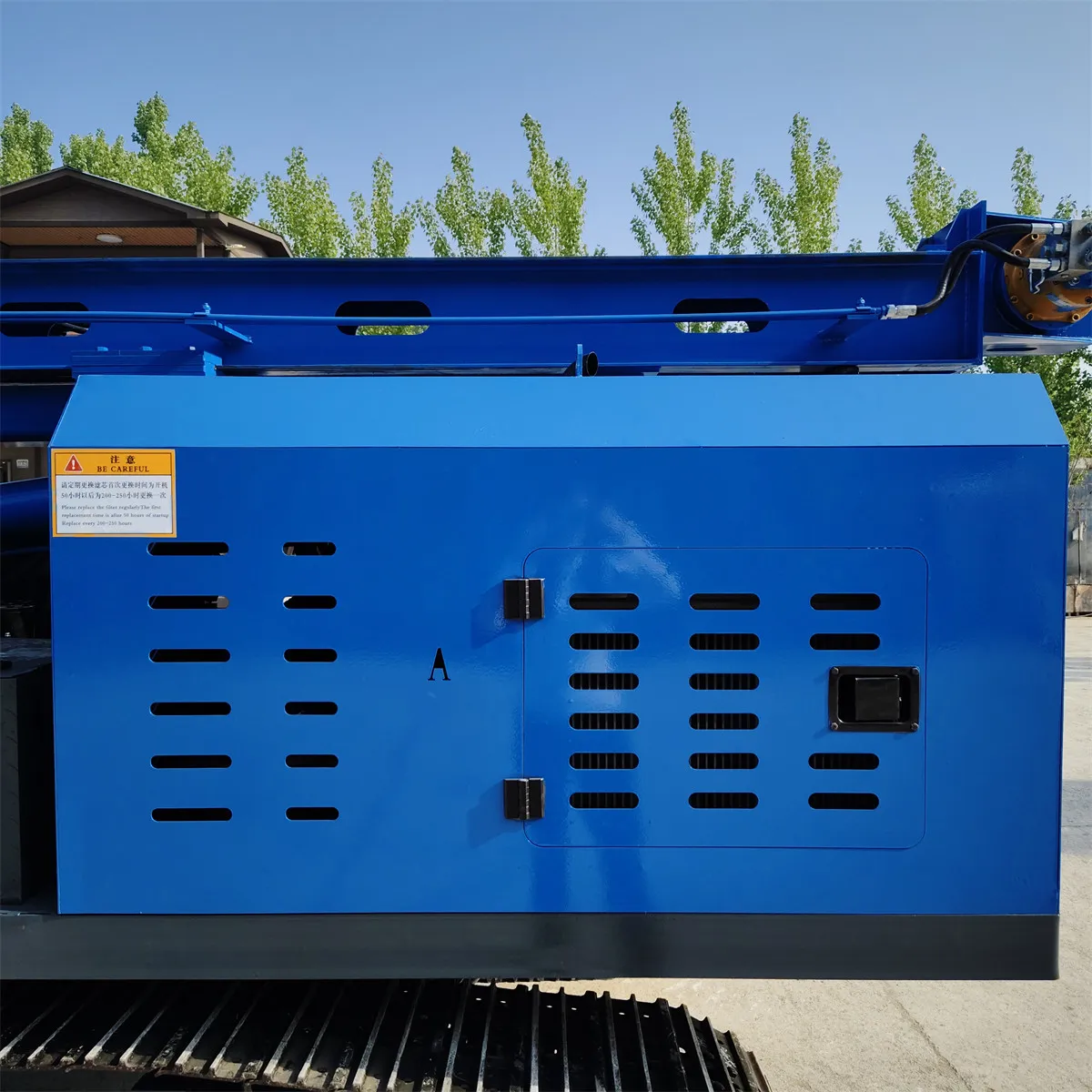

"Thoughtful Design" Features of the Diesel Engine
Fuel-Efficient and Economical-Keeping Operating Costs Low

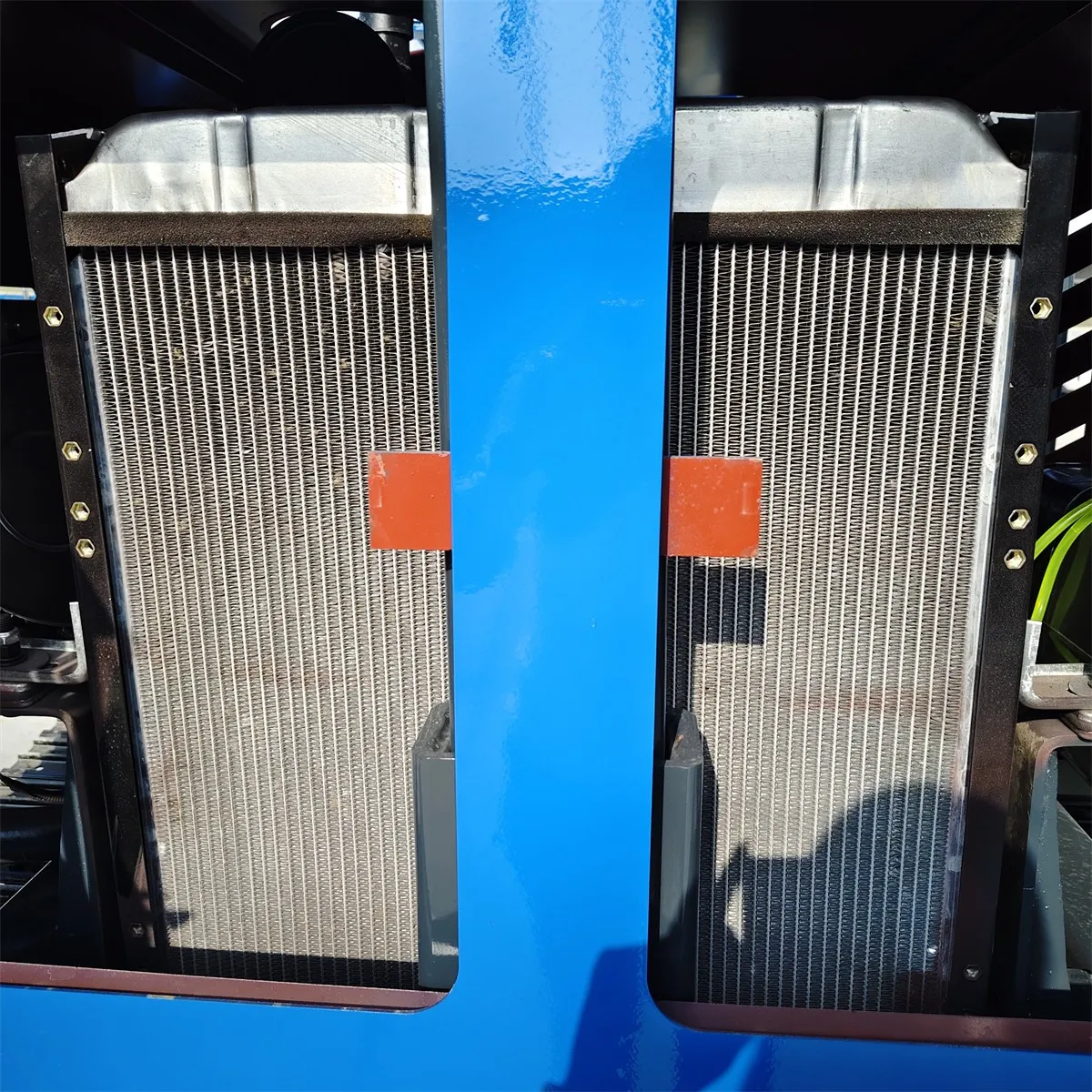

Efficient Cooling: Equipped with dual electronic hydraulic oil coolers, the system ensures that even during continuous operation in the summer heat, the hydraulic oil temperature remains within safe limits. This prevents the machine from "overheating," thereby maximizing its overall durability and service life. Powerful Drilling Capability: Capable of drilling to a depth of 3 meters (custom depths are available upon request), with a hole diameter ranging from 300 to 500 millimeters. Whether the task involves holes for photovoltaic piles, fence posts, or small-scale foundations, this machine handles it all with ease.
Ideal Applications
Photovoltaic Sites: Perfect for mass pile drilling; the diesel engine power source is adaptable to any environment-even sites without electricity-ensuring high efficiency and precise hole positioning.
Outdoor Engineering: Ideal for drilling foundation holes for guardrails and streetlights; it meets demands for both deep and large-diameter holes while remaining fuel-efficient and highly productive.
Rural Construction: Suitable for drilling small foundations and irrigation wells; the 300–500 mm diameter range is perfectly adequate for these tasks. With its stable chassis, it operates effectively even on sloped terrain.
In Short: The TZ-300B diesel powered pile driver is the ultimate "fuel-efficient workhorse" for any job site. Boasting robust diesel power, a rock-steady chassis, and deep-drilling capabilities, it is a reliable "iron partner" designed to save you money and get the job done!
