Products Description

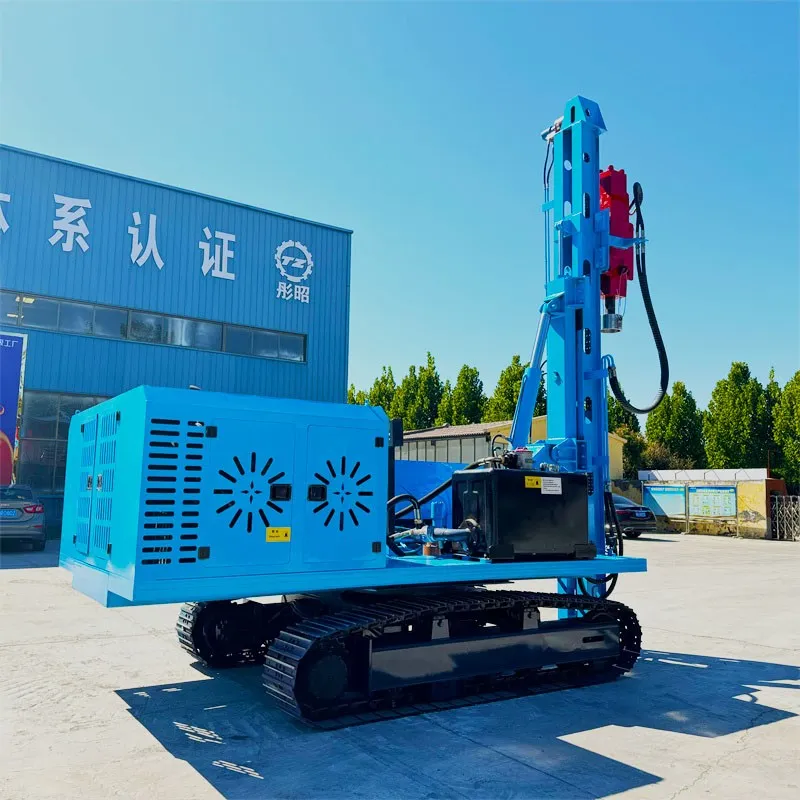

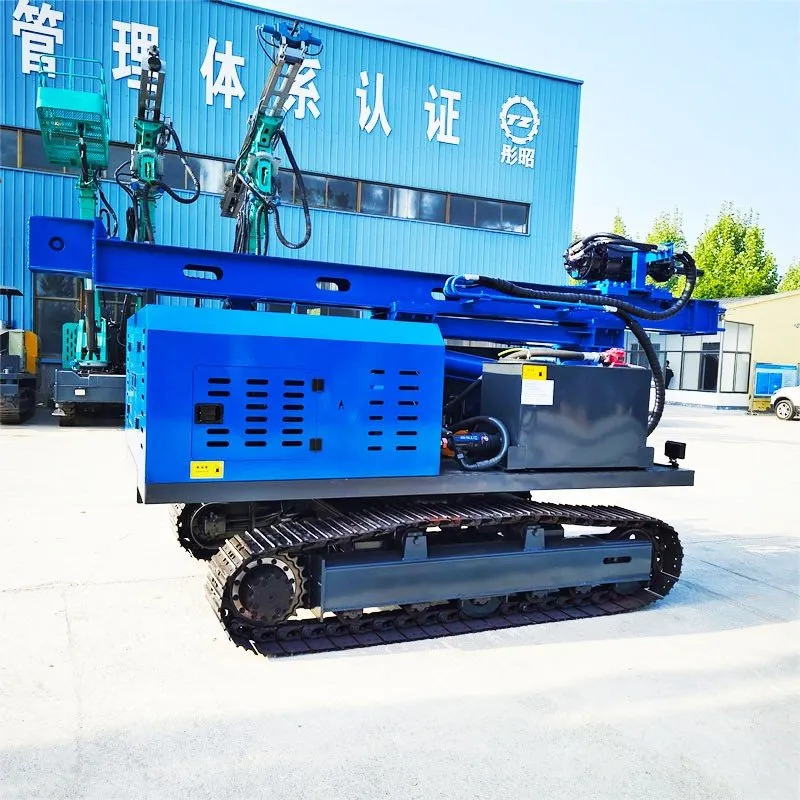

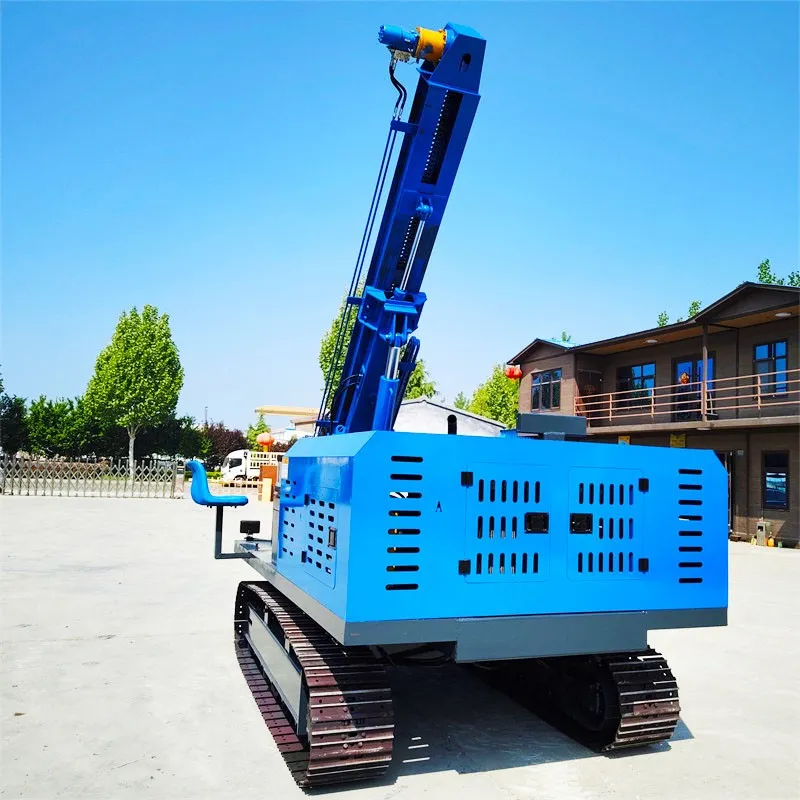

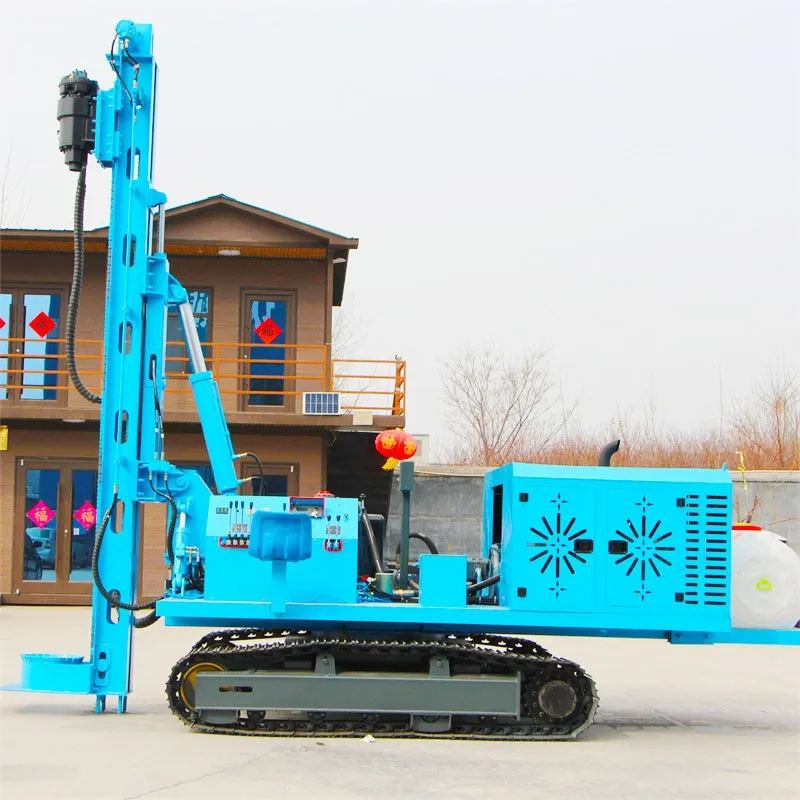

Hello! Welcome to check our TZ-300A pile driver solar
It is a high-efficiency machine specially designed for pile foundation construction in photovoltaic power stations, especially suitable for complex terrains such as mountains and hills.
Key Parameters & Introduction
|
Parameter |
Specification |
|
Model |
TZ-300A |
|
Chassis |
8 ton excavator chassis |
|
Travel motor |
TM10 |
|
Swing angle |
360° |
|
Internal tooth ring diameter |
1 m internal tooth |
|
Hydraulic motors |
Dual hydraulic motor / five star motor |
|
Engine options |
6105 Yuchai power / 4015 Yuchai power |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
3 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |
Chassis & Travel
- It adopts an 8-ton excavator chassis with TM10 travel motor. Travel speed: 2.5–3 km/h.
- The bottom-slewing structure supports 360° rotation, offering excellent flexibility and passability on site, covering a larger working range without frequent repositioning.
- Chassis size: 3000*2200 mm, operating weight: about 5000 kg.
- Stable center of gravity and good anti-overturning performance ensure higher safety on slopes.
Power & Hydraulic System
- Engine options: Yuchai 6105 or Yuchai 4015, reliable, low fuel consumption, easy maintenance with widely available parts.
- Hydraulic system flow: 80–158 L/min, pressure: 20 Mpa.

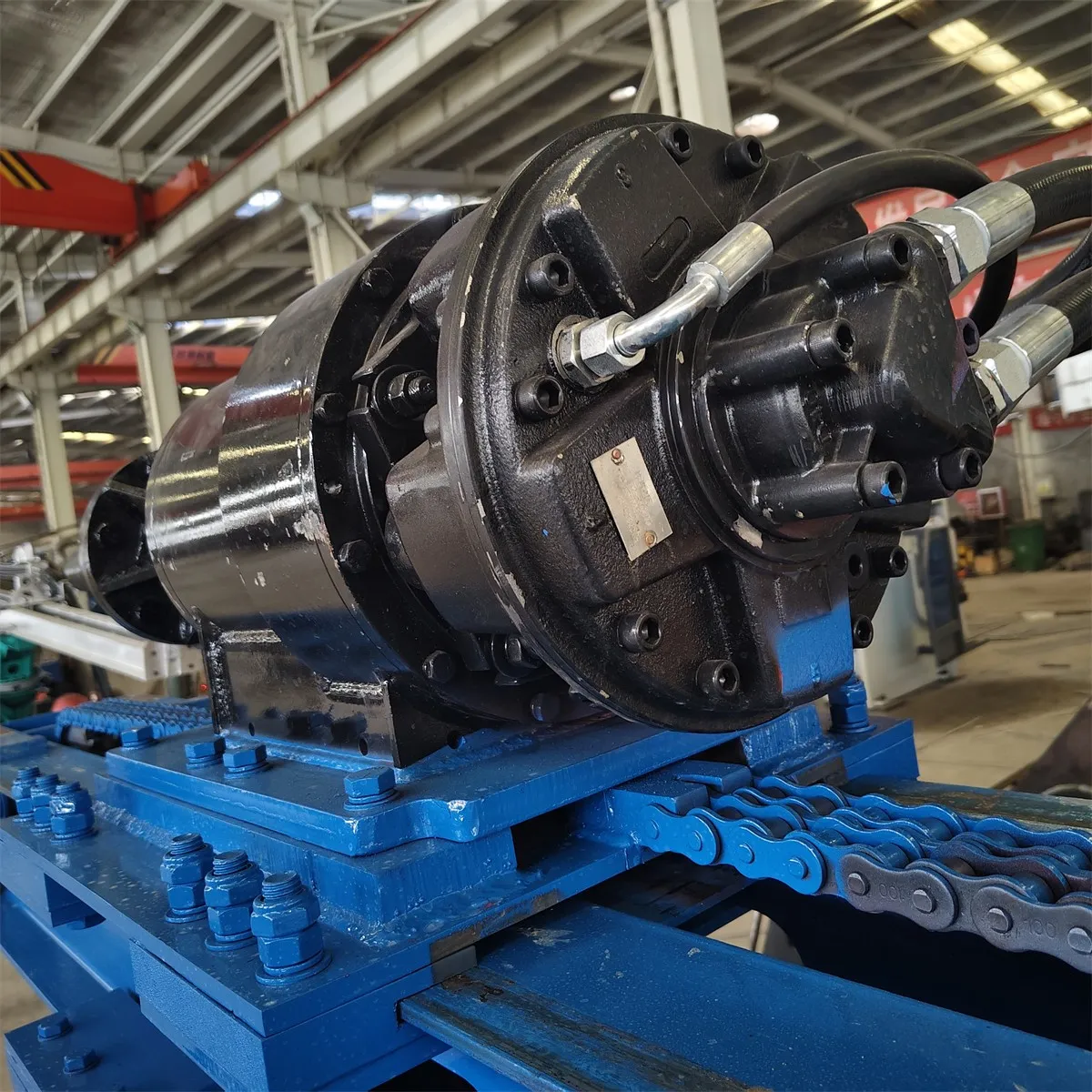

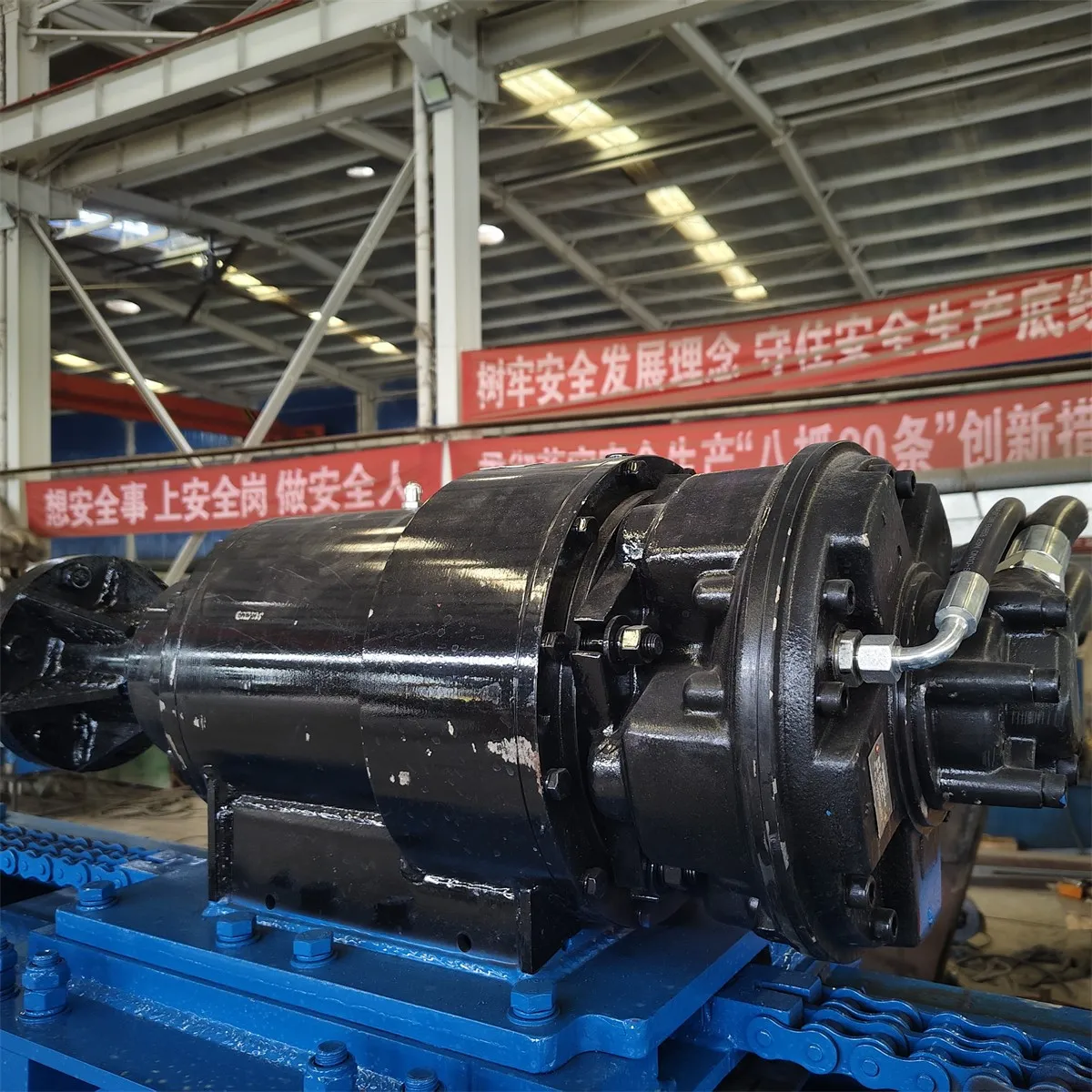

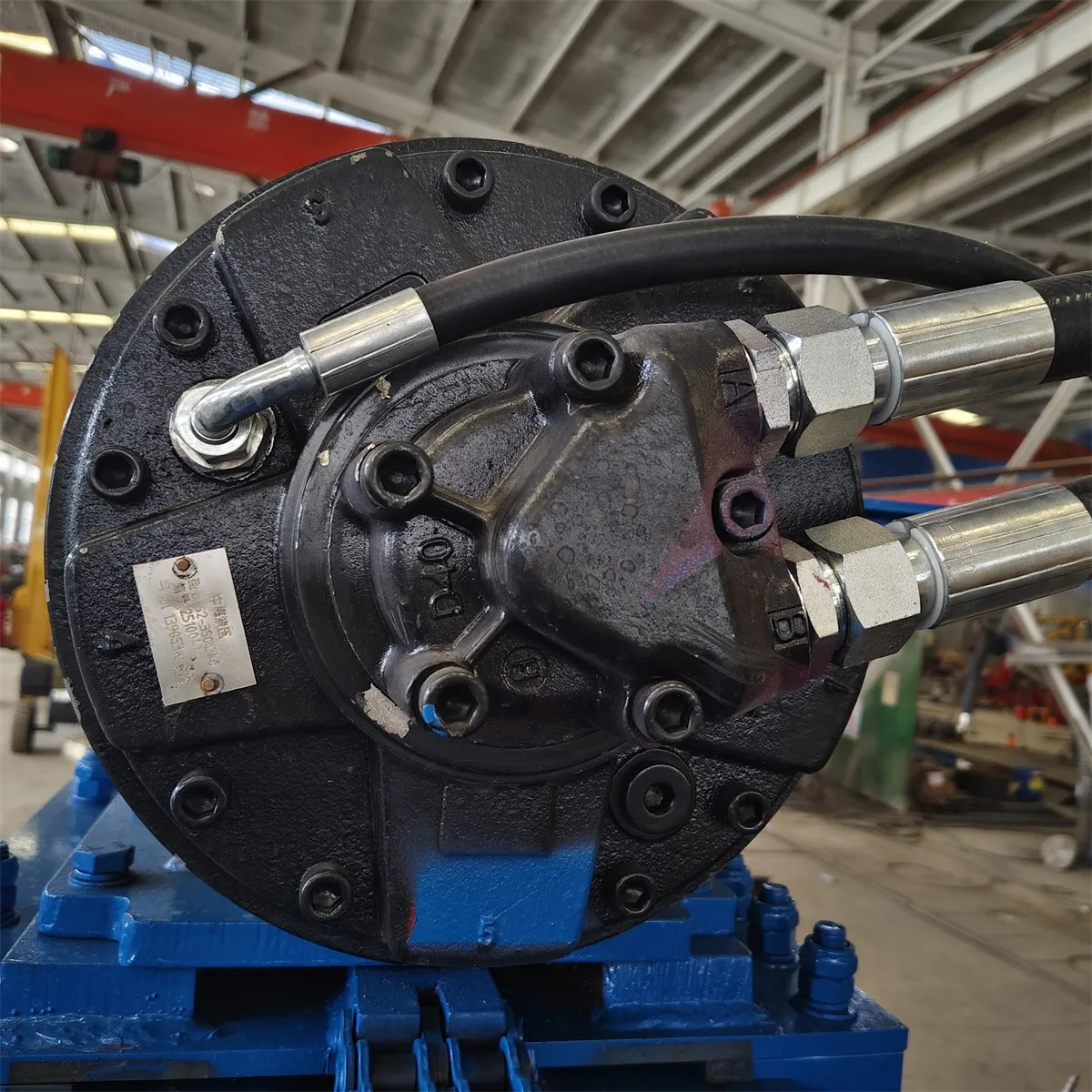

- Equipped with dual hydraulic / five-star motor power head, strong drilling force and high efficiency for various geological conditions.
- Dual electronic hydraulic oil radiator ensures stable performance and no overheating even during long working hours in summer.
Drilling Performance
- Drilling diameter: 300–500 mm
- Drilling depth: 3 meters (customizable)
- Fully meets standard photovoltaic pile construction requirements.
- The boom can be adjusted forward, backward and in angle. With hydraulic pressurization system, it ensures accurate positioning, stable drilling, high-quality holes, and effectively avoids deviation or collapse.
Advantages & Closing
- Strong adaptability: crawler chassis + 360° rotation, efficient even on complex terrain
- Reliable power: Yuchai engine + mature hydraulic system, low failure rate and low maintenance cost
- Stable performance: 3m depth, 300–500mm diameter, suitable for most photovoltaic projects
- Flexible customization: drilling depth can be adjusted according to your project
If you have specific working conditions (such as soil type, daily output requirements),
I can calculate the daily construction efficiency and cost for you.
Would you like to discuss further?
