Products Description

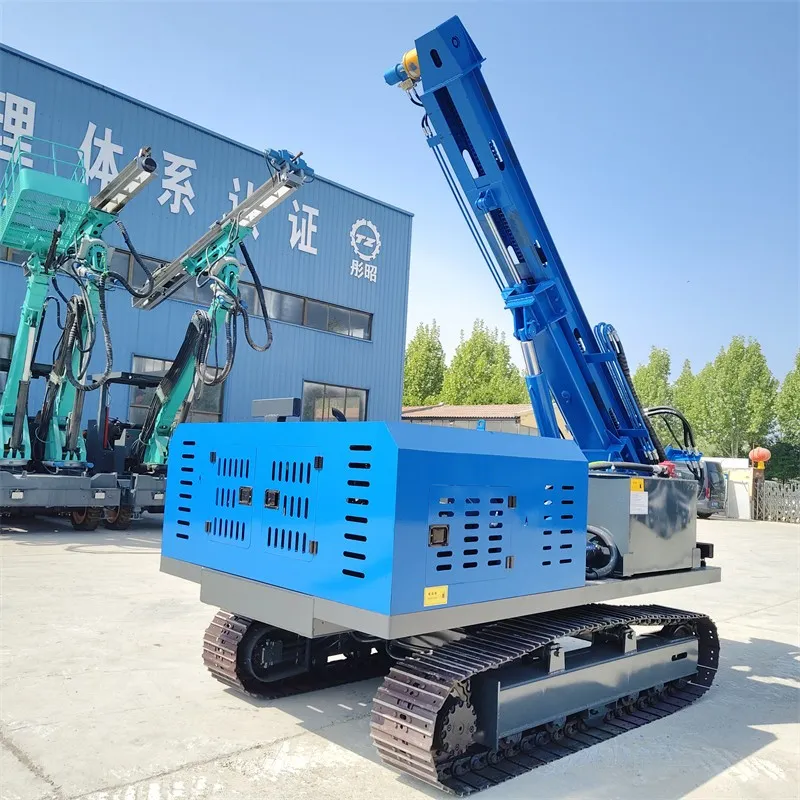

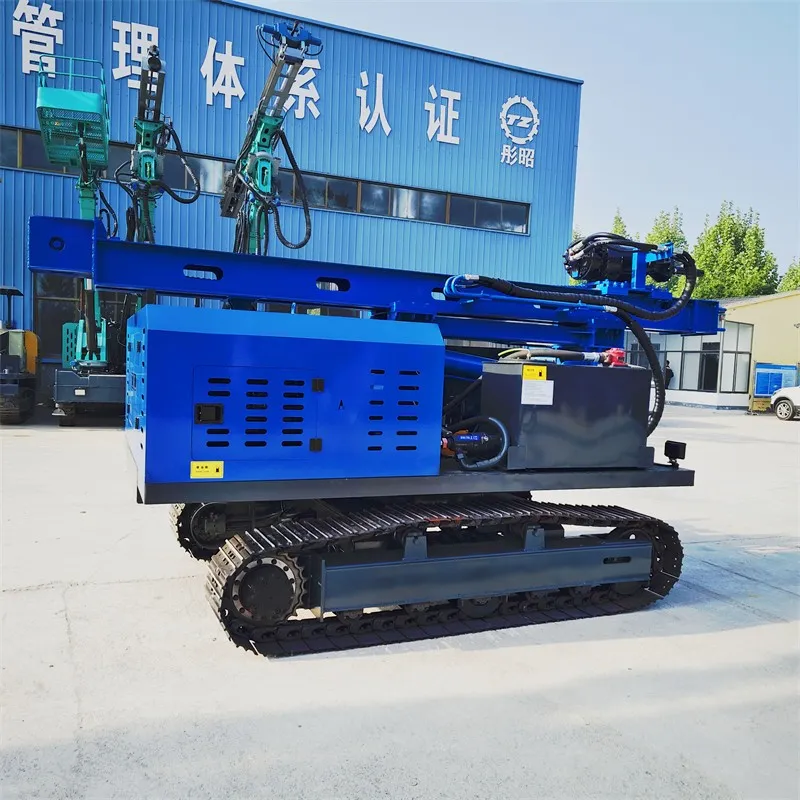

TZ-300B Solar Piling Machine: The "Efficiency Champion" of PV Projects-Stable Drilling, Rapid Relocation
The TZ-300B solar piling machine is engineered specifically for photovoltaic power stations and outdoor foundation construction. Boasting robust power and agile operation, its standout feature is its rugged durability. Today, we'll show you just how "tough" this machine really is!
Powerful Performance: Drilling Without a Hitch
Reliable Engine: Equipped with a Yuchai 6105 or 4015 diesel engine, it delivers stable power output. Whether dealing with soft soil layers or hard gravel, it handles the challenge with ease, ensuring high drilling efficiency.

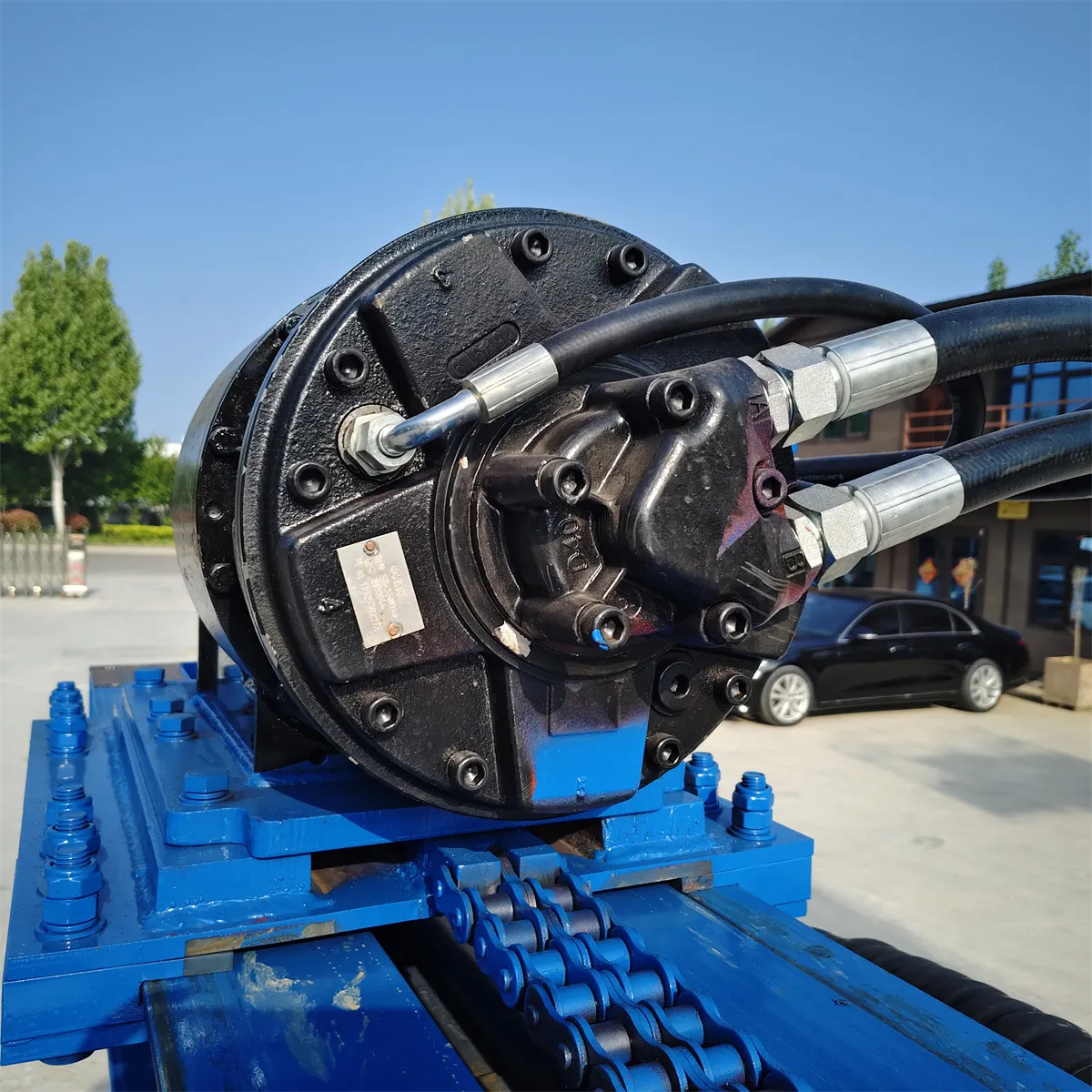

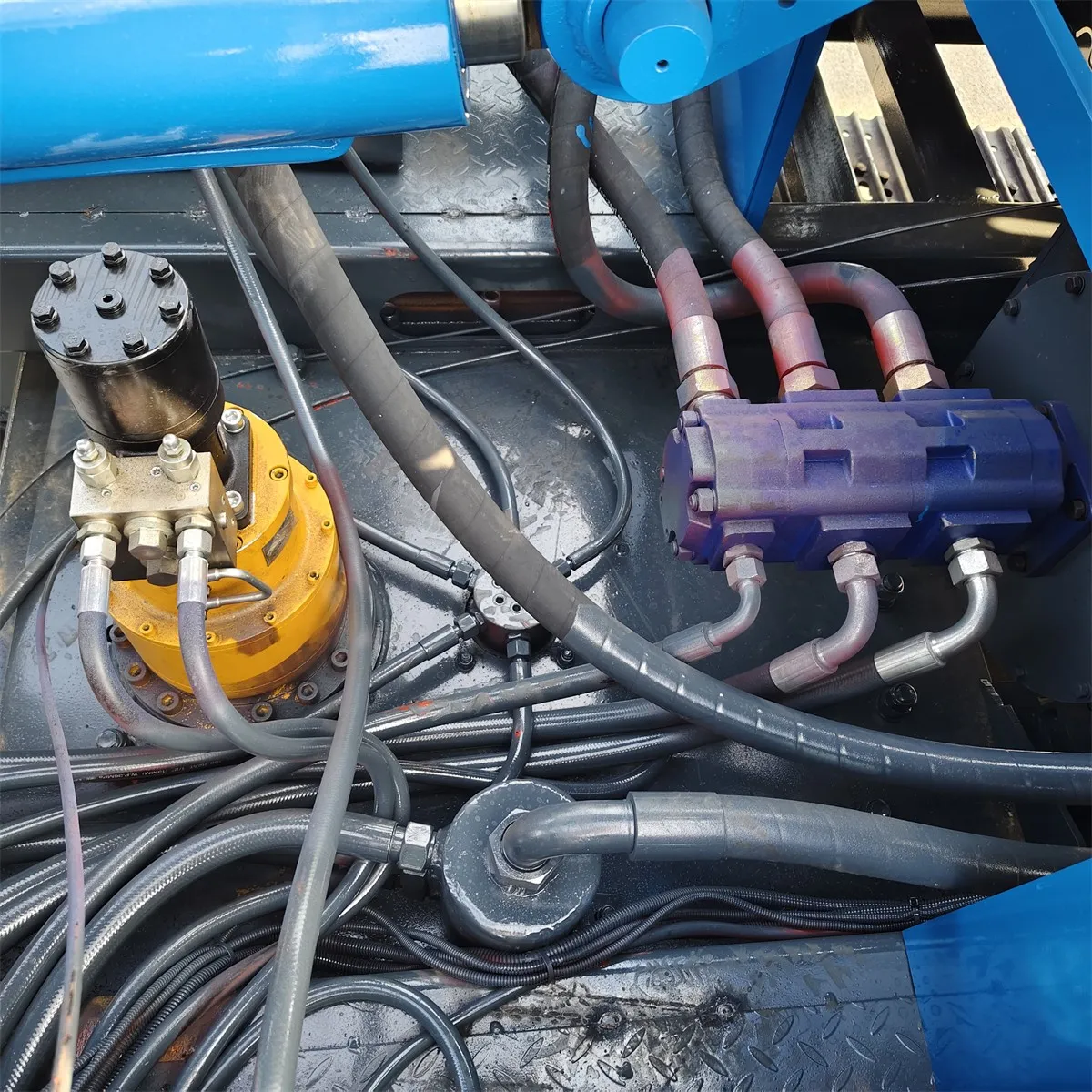

Robust Hydraulic System: The power head is driven by dual hydraulic motors (or a five-star motor). With a hydraulic oil flow rate of 80–158 L/min and a pressure of 20 MPa, it achieves rapid drilling speeds and minimizes the risk of drill bit jamming.
Agile Maneuverability: Navigating Complex Terrain with Ease
Sturdy Chassis: Built upon an 8-ton excavator chassis, it features a large crawler ground contact area for exceptional stability, allowing it to traverse muddy ground and gravel terrain effortlessly. With a travel speed of 2.5–3 km/h, it requires no additional transport for on-site relocation or short-distance moves.

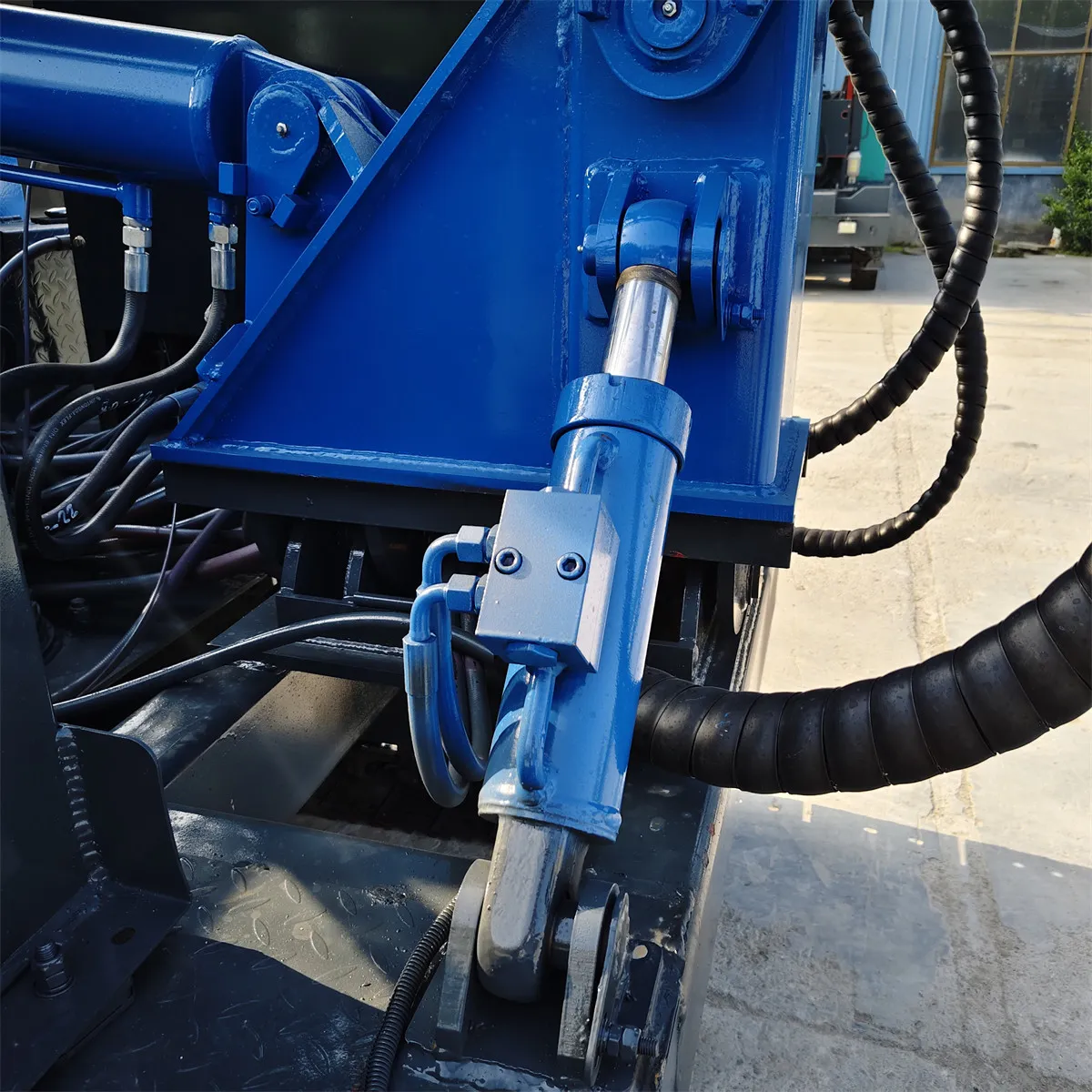

Adjustable Boom: The boom supports both fore-and-aft and angular adjustments, adapting to varying slopes and uneven terrain. This allows for precise alignment with pile positions, enabling the drilling of both vertical and angled holes.
Attention to Detail: Non-Stop Operation for Extended Shifts

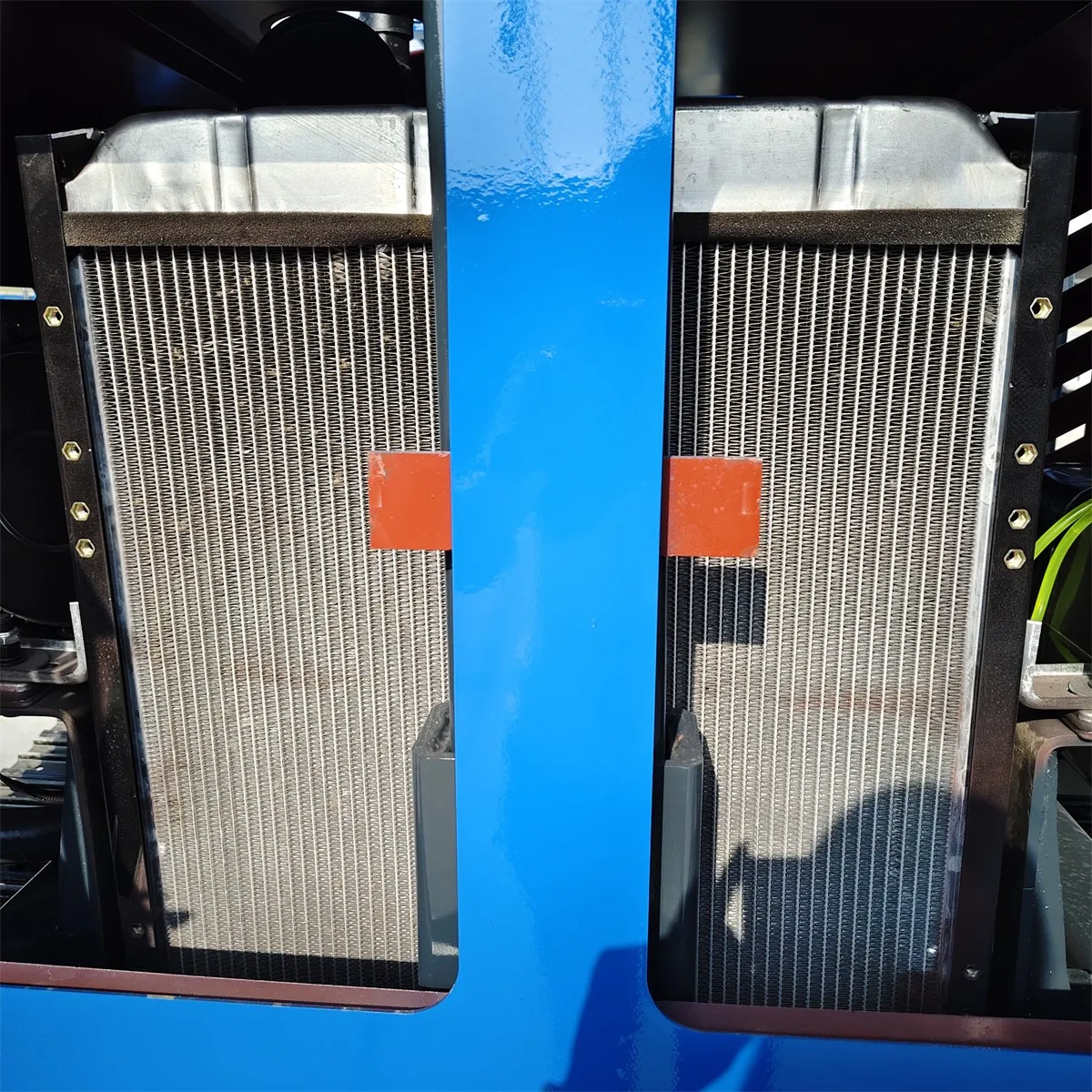

Efficient Cooling: Equipped with dual electronic hydraulic oil coolers, it effectively lowers oil temperatures. This ensures the machine can sustain continuous operation over long periods, significantly reducing the risk of mechanical failure.
Superior Drilling Capability: With a standard drilling depth of 3 meters (customization available) and a hole diameter range of 300–500 mm, it meets a wide variety of construction needs-including solar piles, guardrail posts, and small-scale foundations.
Convenient Transport: Compact and Space-Saving
Weighing approximately 5,000 kg, the machine features a compact structure with a chassis footprint of 3000 × 2200 mm (3000 mm in length). This makes it easy to transport via flatbed truck and ensures agile operation even within confined job sites.
Applicable Scenarios
PV Power Stations: Enables high-volume pile hole drilling with exceptional efficiency and precise positioning, significantly accelerating construction progress.
For example, in the construction of a photovoltaic power station in a mountainous area, Our equipment is particularly well-suited for mountainous and hilly terrain; featuring a low center of gravity and excellent resistance to tipping, it ensures safer operations on slopes.
In a Nutshell: The TZ-300B Solar Pile Driver-powerful, agile, and durable-is the ultimate "efficiency powerhouse" for PV projects and outdoor construction!
