Micro Pile Driver

Jining Tongzhao Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of micro pile driver in China. If you're going to wholesale durable micro pile driver made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

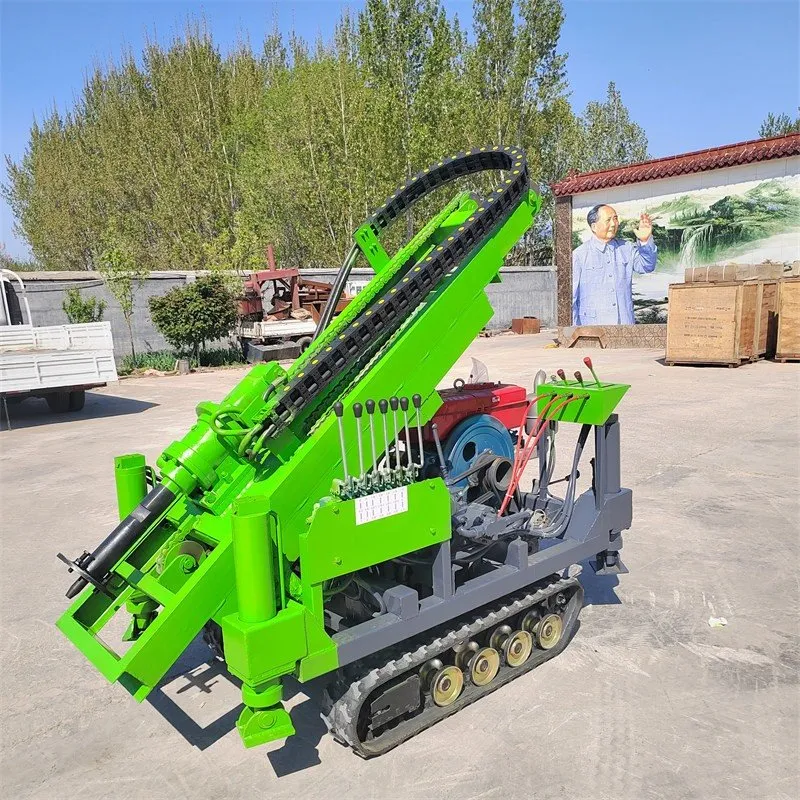

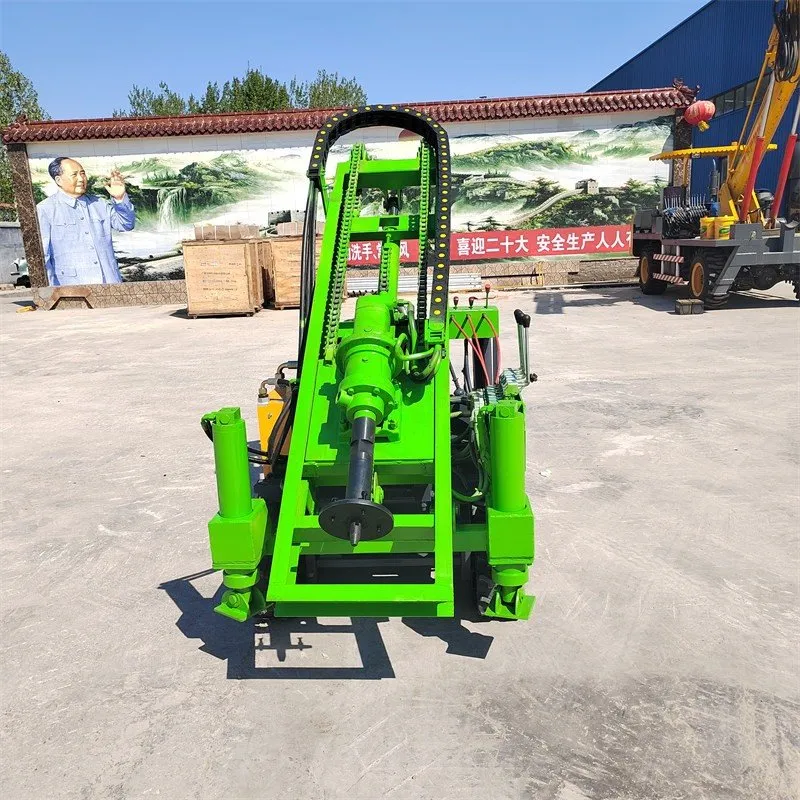

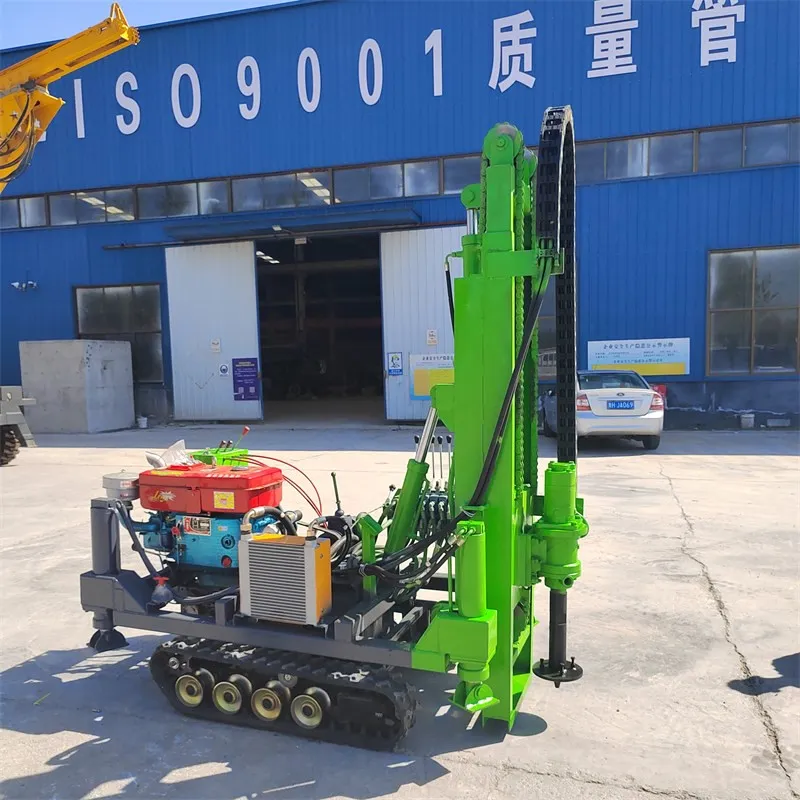

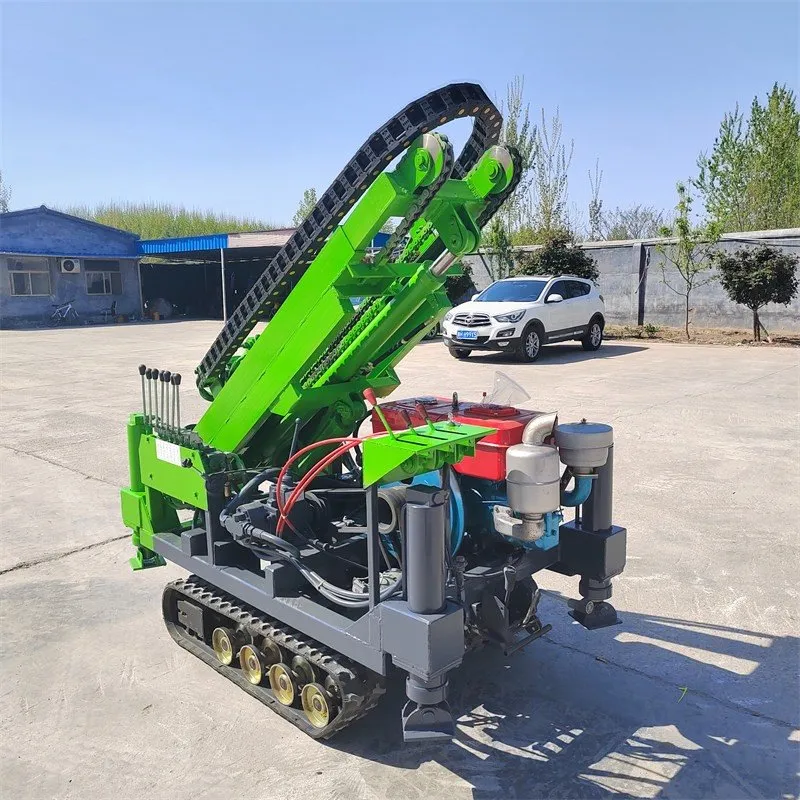

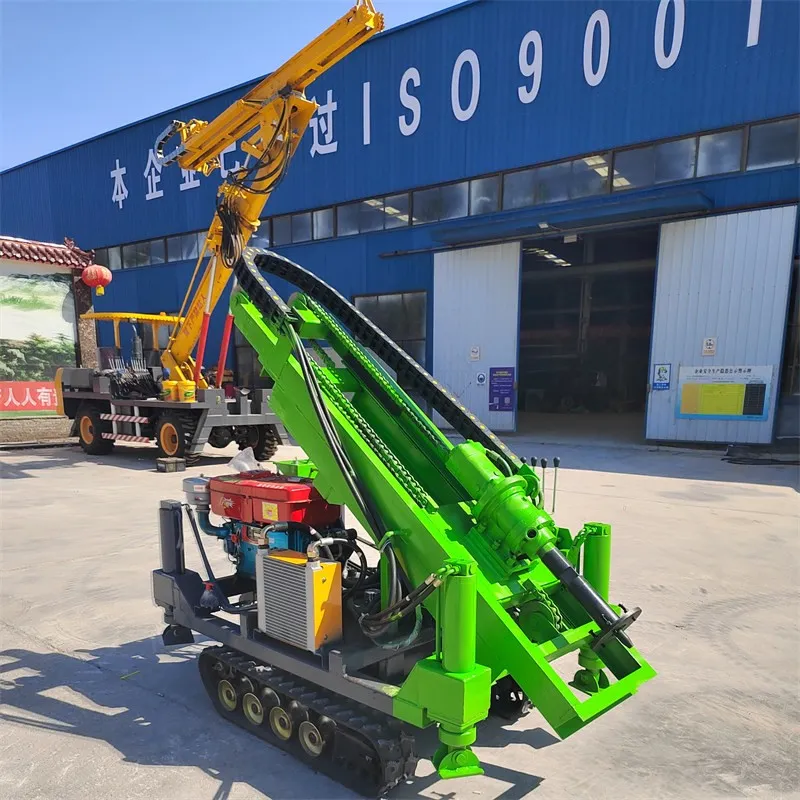

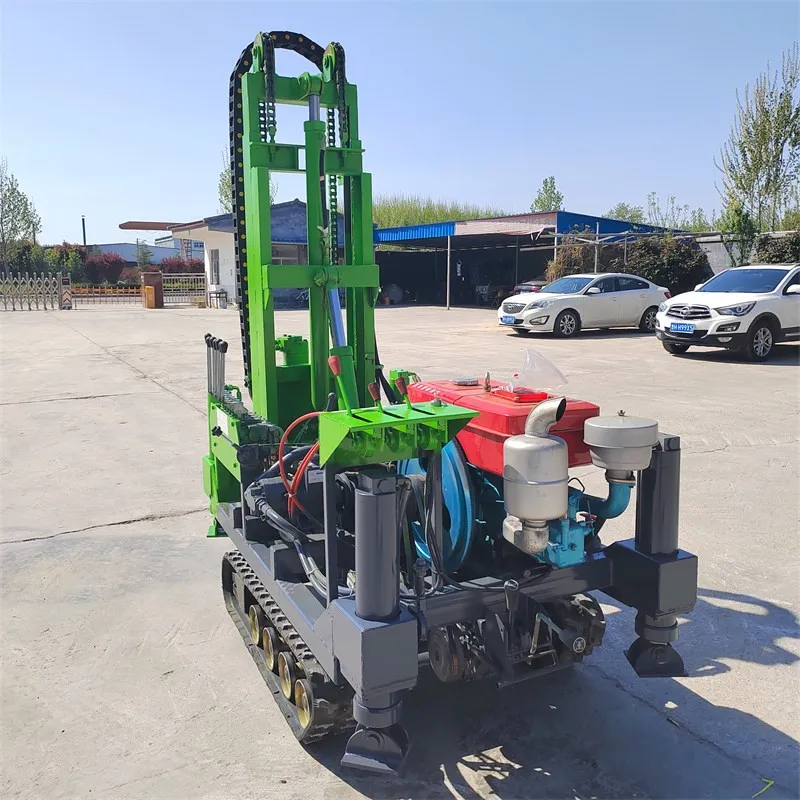

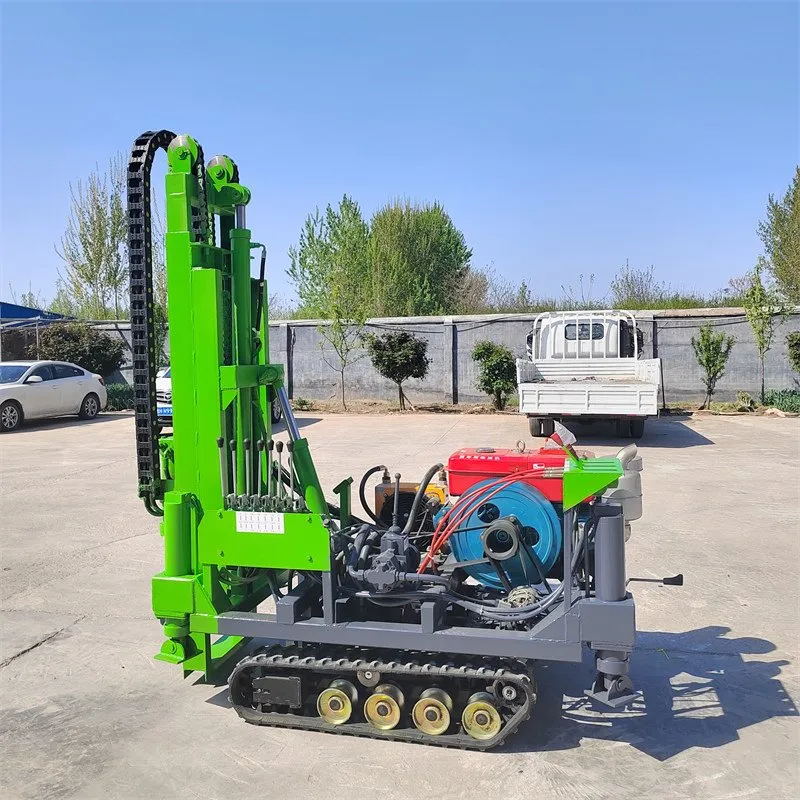

Try This Pile Driver with a 'Hydraulic Punch' What do mountain and hilly photovoltaic projects fear most? Rocks. Ordinary small machines shake violently when they hit rock layers, not only causing holes to misalign but also easily damaging the machine. This TZ fully hydraulic pile driver, although compact in appearance, is fundamentally designed for complex terrain and hard rock.

1. Why is fully hydraulic more suitable for 'hard ground'?



For rock hardness f=6-20, mechanical transmission tends to 'clash', and gears are prone to wear. The fully hydraulic system is different-it transmits power through hydraulic oil, with buffering and overload protection. When the drill bit encounters hard rocks and resistance increases, the hydraulic system pressure rises, but it won't jam instantly; the operator has time to adjust feed pressure, protecting the drill rod from breaking. With 3000N·m of torque and 0-150rpm stepless speed adjustment, you can slowly grind the rock at low speed and high torque, rather than relying on impact to smash it.

2. Mountain adaptability: being stable is key to accurate drilling



Mountain terrain often has slopes. This machine's tracked chassis has a low center of gravity, and the slide frame can adjust pitch forward and backward, allowing operations on 30° slopes while keeping the body stable. Traditional wheeled equipment tends to slip on slopes, but this tracked chassis acts like 'gecko feet', providing strong traction. The minimum ground clearance is 150mm, easily passing over small stones and soil mounds without needing special road construction.

3. Customizable service (screw pile driver)



If you're not drilling holes but driving helical piles (ground anchors), you can opt for a custom screw pile driver. The fully hydraulic power head delivers high torque and allows flexible forward and reverse switching, especially suitable for screw pile operations, making it more versatile than a simple drilling machine.

4. Durable and worry-free, low maintenance costs



Fully hydraulic structure means less component wear and lower failure rates. With a lightweight 1200KG body, transportation is easy; an ordinary truck can carry it without needing special large transport equipment. It also supports customizable screw pile drivers according to needs; whether drilling or directly screwing piles, one machine can handle it all.

Drive the machine in, raise the slide frame, and it can advance 1-2.4 meters at a time. When the diesel engine starts, the hydraulic pump station supplies oil, the power head rotates the drill rod, and when encountering hard spots, advance slowly. The hydraulic system automatically adjusts pressure to protect the machine. After finishing one hole, the tracks reposition the machine at 0-5 km/h for the next point. Weighing 1.2 tons, its ground pressure is low and won't damage the client's concrete floor.
