Products Description

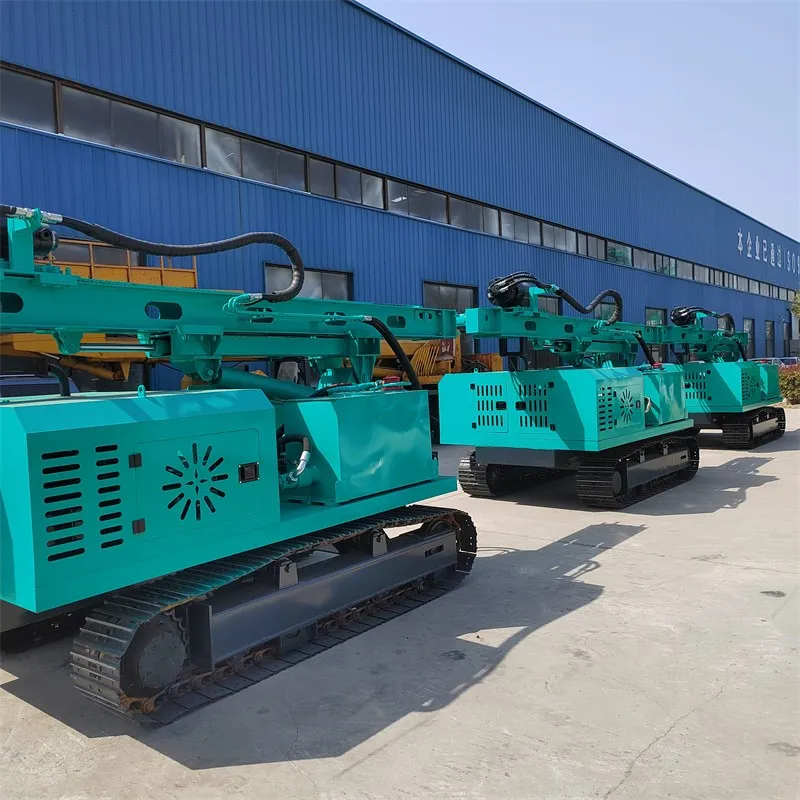

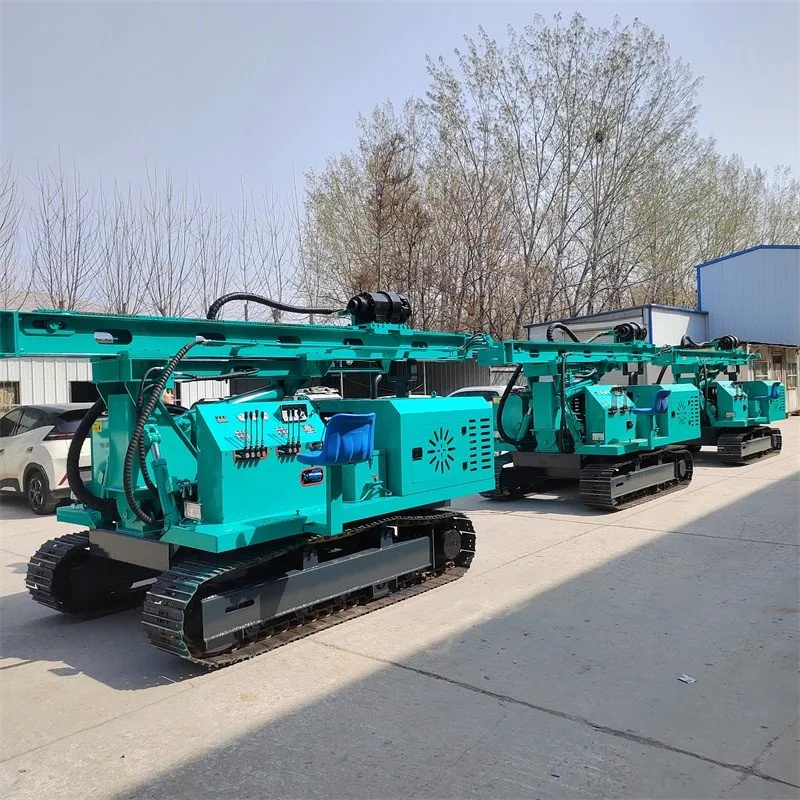

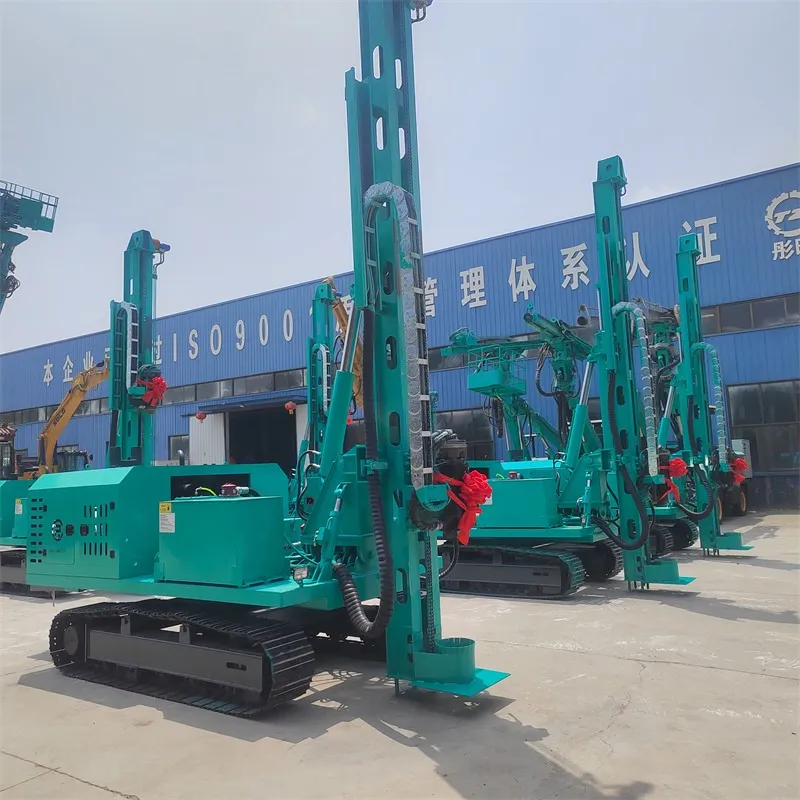

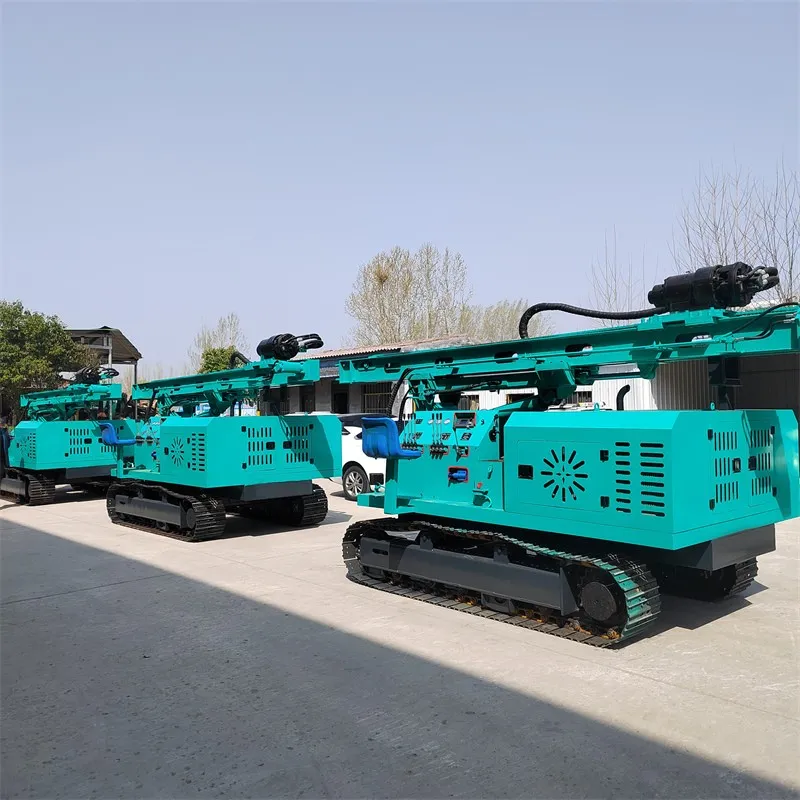

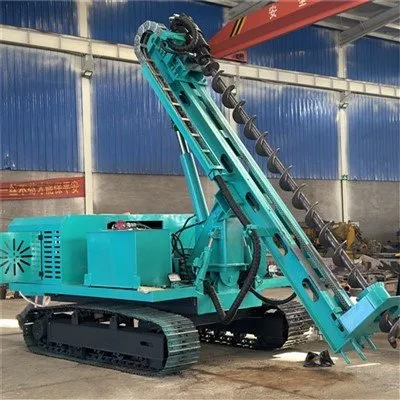

This TZ-series hydraulic mountain PV drilling rig is engineered specifically for "challenging" terrains-such as mountains and hills-that typically stump standard equipment. Even on 30-degree slopes or amidst deep ravines, it can stabilize its chassis perfectly while drilling 10-meter-deep pile holes with both speed and precision.
Attempting to drill PV pile holes on mountains, steep slopes, or uneven construction sites is a futile task for ordinary machinery; they simply cannot maintain stability or penetrate the ground effectively.
The *Mountain PV Drilling Rig* is a hydraulic piling machine designed expressly for these "rough roads, sloped surfaces, and hard-packed soils."
Its most critical asset isn't high travel speed, but rather its ability to self-level, maintain rock-solid stability, and drill deep holes while positioned directly on a mountain slope.
|
Item |
Specification |
|
Chassis |
8-ton excavator crawler chassis |
|
Travel Motor |
TM10 |
|
Travel Speed (km/h) |
2.5-3.0 |
|
Engine Model |
4105 turbocharged |
|
Feed Beam |
Adjustable via front, rear, left and right hydraulic cylinders |
|
Feed Method |
1000 motor with chain drive |
|
Single-pass Drilling Depth |
3-10 m (optional) |
|
Drilling Diameter (mm) |
150-600 (optional) |
|
Feed Beam Compensation (mm) |
800 |
|
Cooling System |
FLJ-136 reinforced |
|
Power Head Torque (N·m) |
Dual hydraulic motor: 5000Five-star motor: 10000 |
Why is it uniquely suited for mountainous terrain?

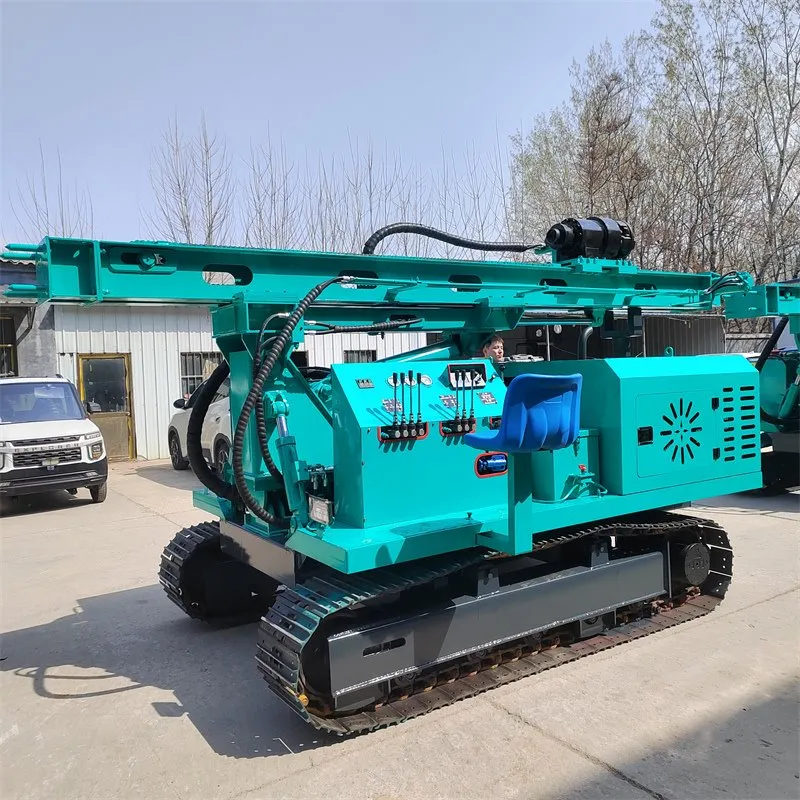

8-Ton Excavator-Style Crawler Chassis + TM10 Travel Motors: This configuration delivers exceptional traction, preventing slippage even on steep slopes. While its travel speed of 2.5–3.0 km/h may not be fast, it ensures far greater safety and stability across mountainous landscapes. For repositioning within a site or making short-distance transfers, the rig can drive itself-eliminating the need to arrange separate transport vehicles.

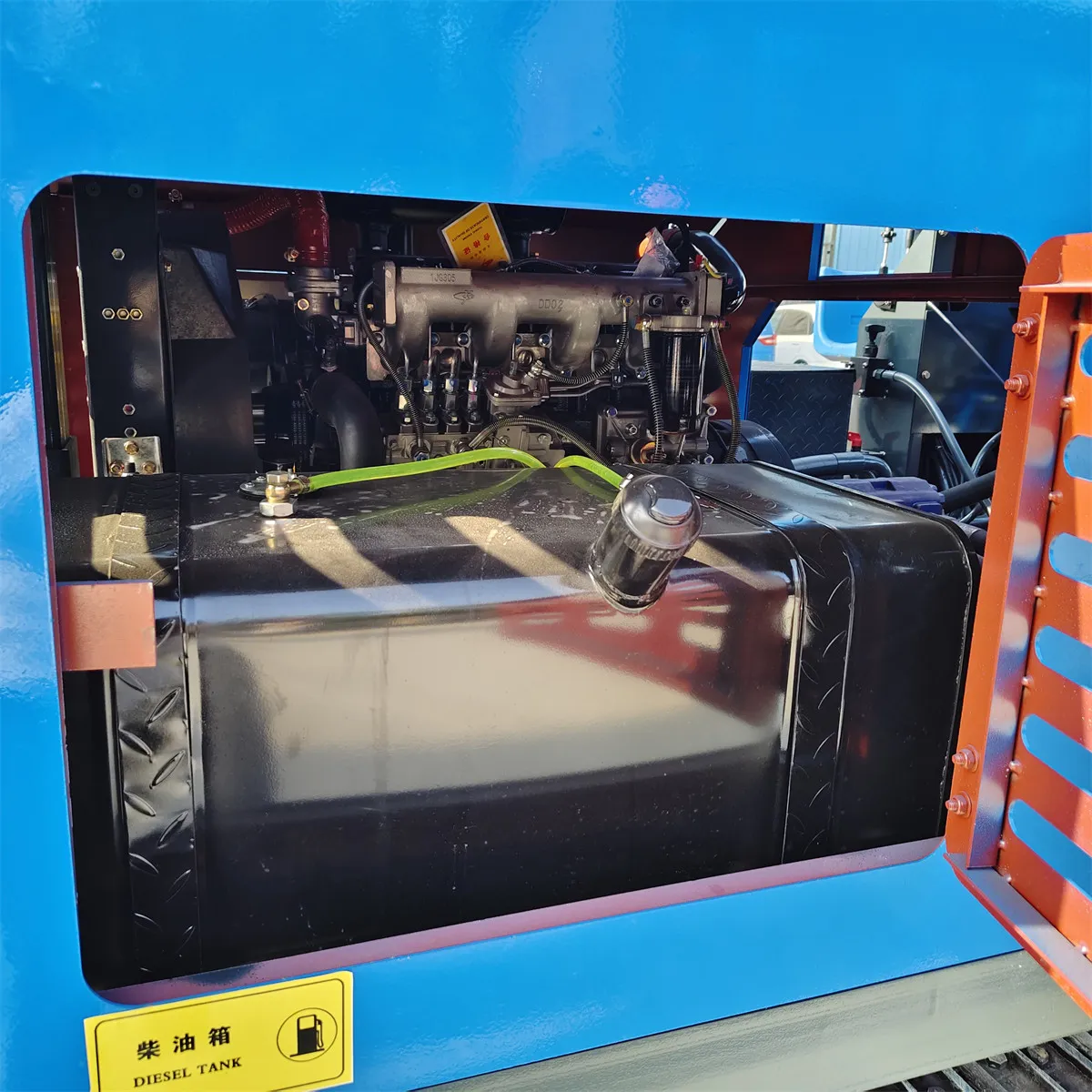

Robust Engine Power: Equipped with a 4105 turbocharged diesel engine, the rig delivers explosive power output. It is capable of drilling through the hard-packed soil layers and weathered rock formations commonly found in mountainous regions, avoiding the "lack of muscle" often experienced with lower-powered machinery.

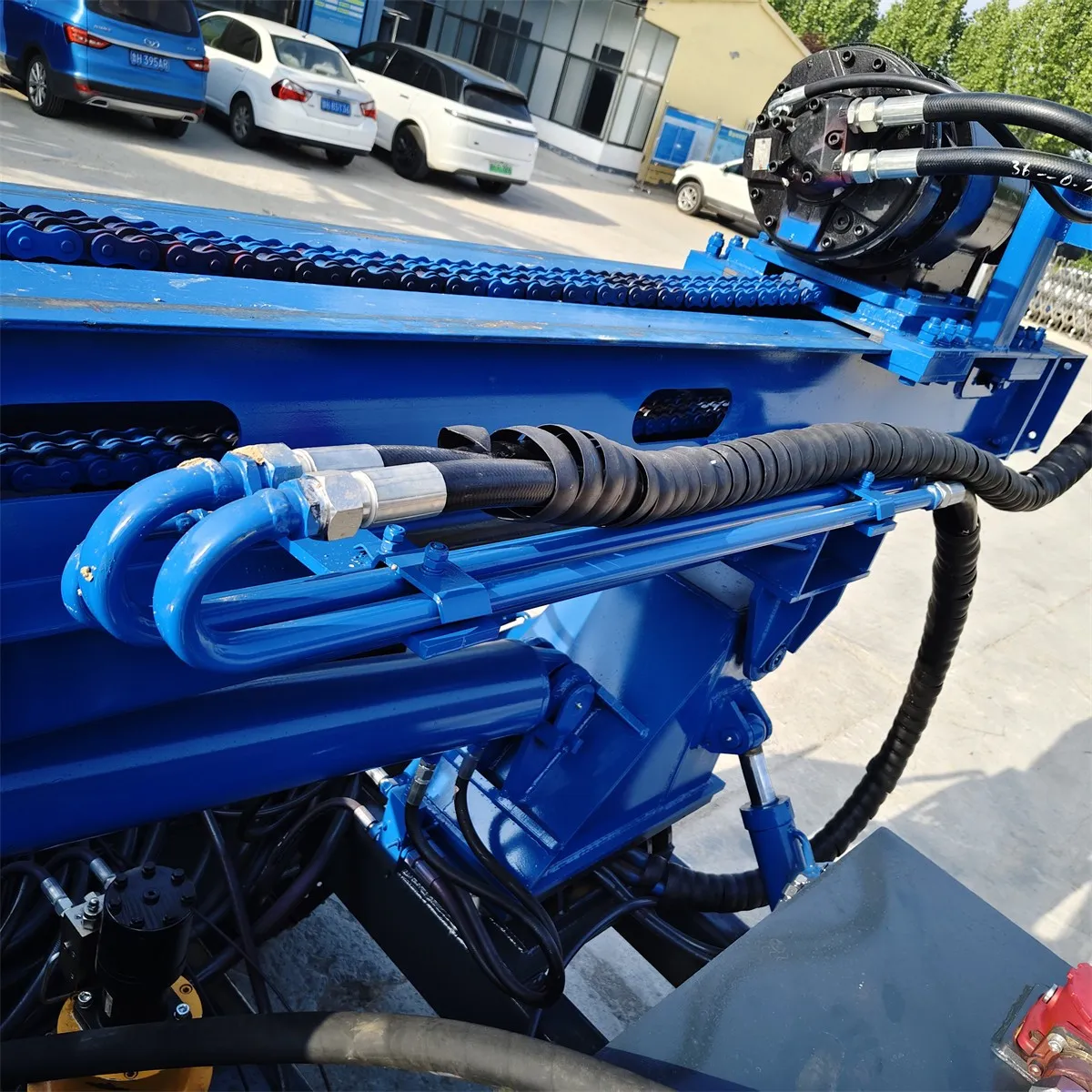

800mm Feed Beam Compensation: When encountering uneven ground or steep angles, the feed beam automatically compensates to ensure the drill bit remains precisely aligned with the designated piling point at all times. Drilling Depth: 3–10 meters-Mountain PV piles often require varying depths; this unit handles them all in a single pass without the need to switch machines.
Drilling Diameter: 150–600 mm-Covers the geological requirements of the vast majority of mountain PV projects.
Real-World Advantages for Mountain Construction
Reduced Vehicle Repositioning: Featuring a feed beam compensation system and hydraulic cylinder adjustment, the rig can drill multiple holes at various angles from a single stationary position.

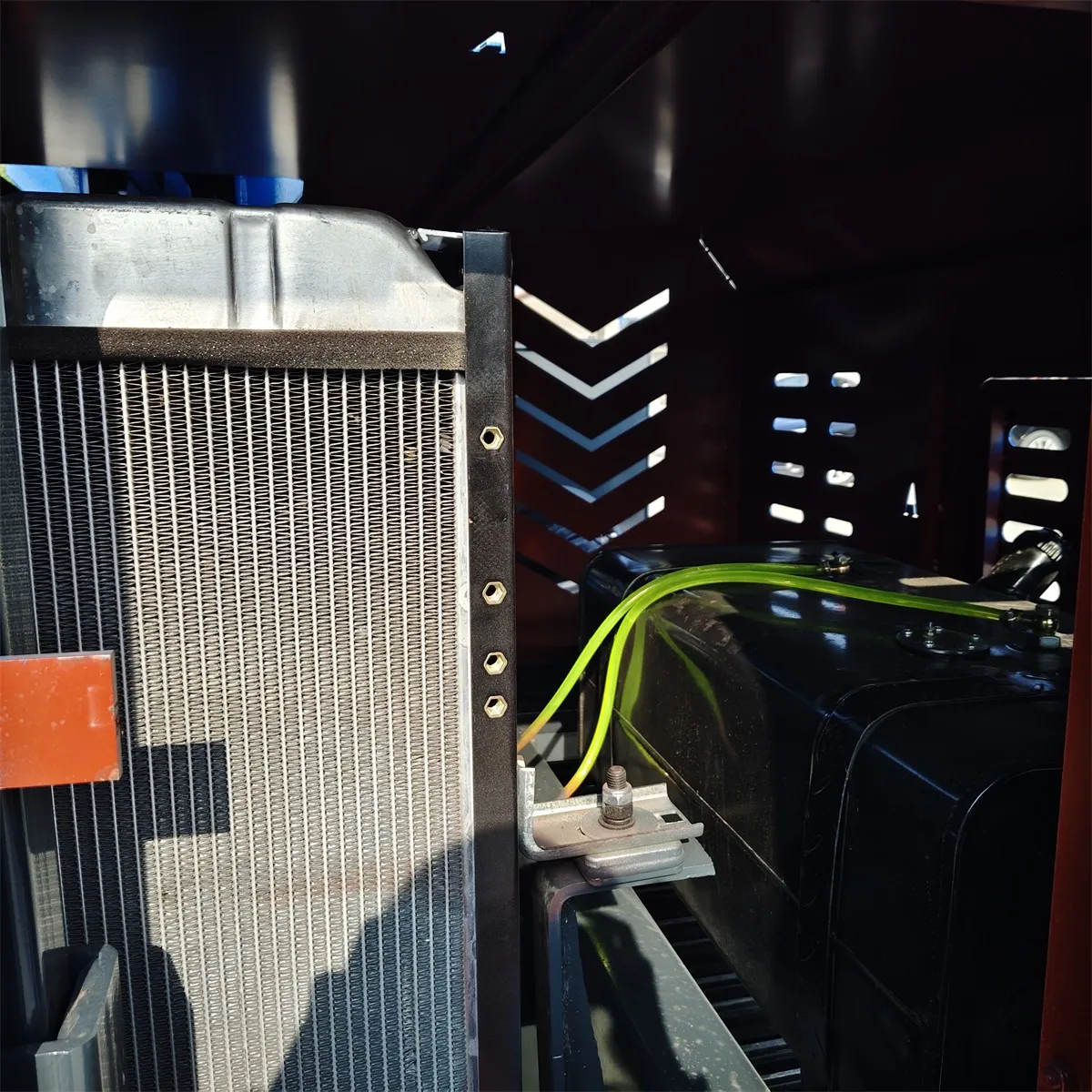

Robust Thermal Management: The FLJ-136 features an enhanced cooling system that prevents overheating, even during continuous uphill travel or prolonged pile-driving operations.
Powerful Torque: Delivering 5000–10000 N·m, the rig maintains rotational power even when encountering gravel, weathered rock, or hard clay.
