Products Description
What is the biggest headache when installing a residential solar power system in your yard? It's not the cost of the panels, but rather whether you can actually drive the ground anchors into the soil. With hard-packed earth, gravel, or even subsurface rock layers, a manual auger simply won't turn-yet renting heavy machinery isn't an option because it won't fit through a standard yard gate.
|
Feature |
Spec |
|
Machine size |
2.5m long, 1.1m wide, 1.8m tall |
|
Track size |
1m wide, 1.2m long |
|
Rock it can handle |
f=6 to 20 (medium to very hard) |
|
Hole diameter |
50 to 150 mm |
|
Normal working depth |
up to 20 meters |
|
Hill climbing |
max 30 degrees |
|
Moving speed |
0 to 5 km/h |
|
Ground clearance |
150 mm |
|
Mast tilt |
90° down, 45° up |
|
Feed per push |
1000 to 2400 mm |
|
Pull/lift force |
up to 2000 N |
|
Rotation torque |
up to 3000 N·m |
|
Rotation speed |
0 to 150 rpm |
|
Air pressure needed |
0.7 to 1.7 MPa |
|
Air flow needed |
5 to 18 m³/min |
|
Engine |
32 HP, single cylinder diesel |
|
Weight |
about 1200 kg |
|
Extra option |
screw pile driver (made to order) |
This machine was built specifically to solve that problem

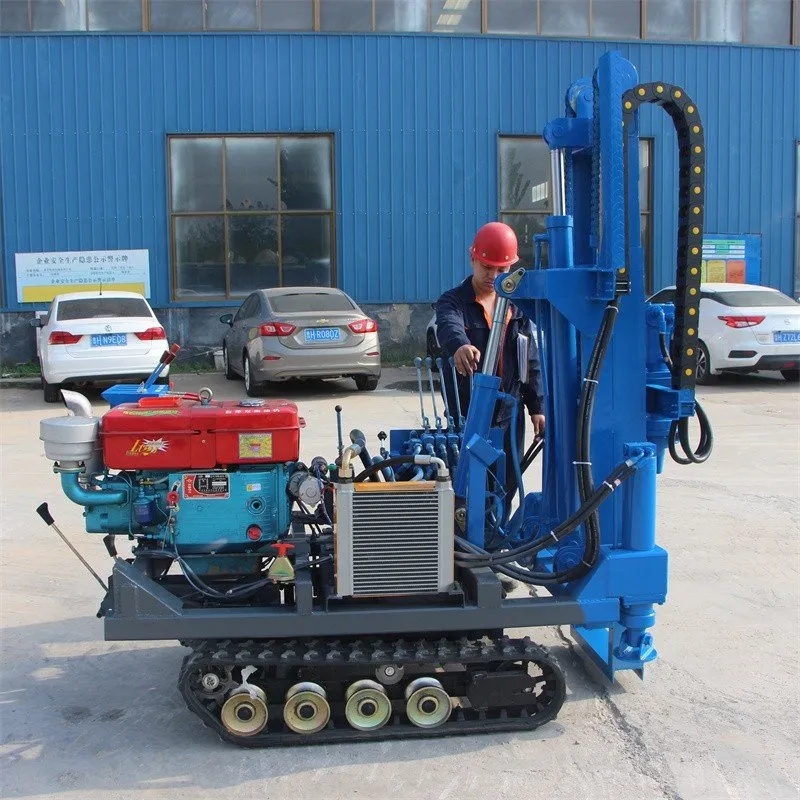

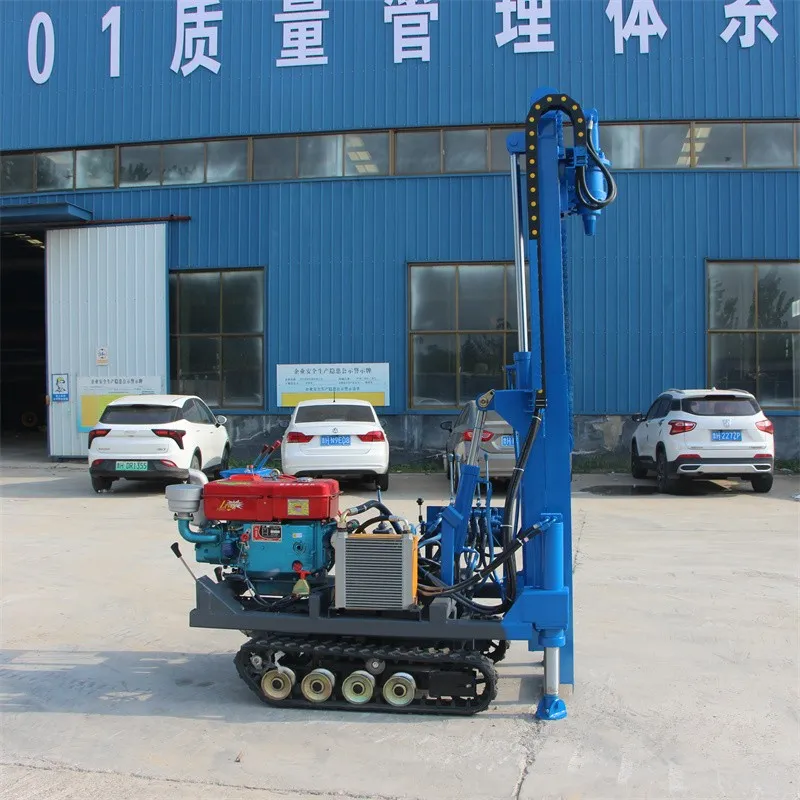

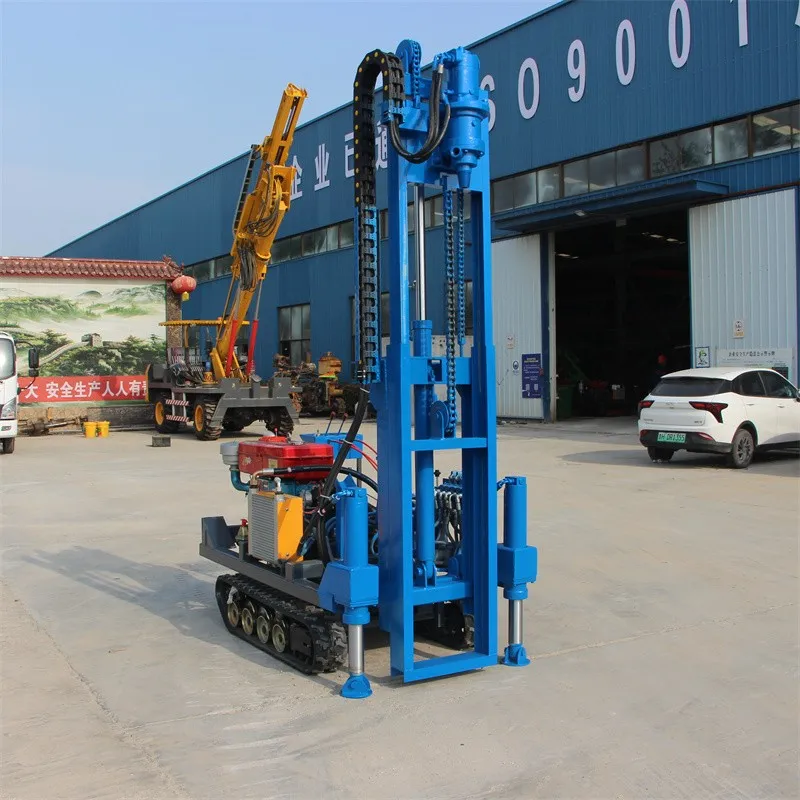

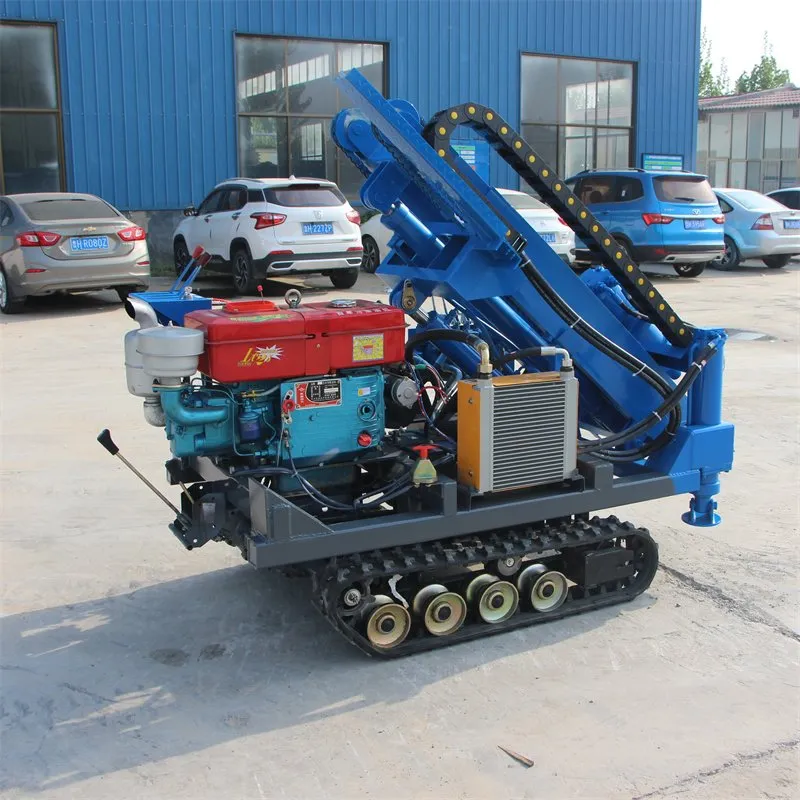

It is compact, featuring narrow tracks that allow it to pass easily through a standard residential gate. Yet, it packs a serious punch. Whether you are dealing with ordinary soil or ground so hard that a pickaxe would strike sparks, this machine can drill right through it. The drilling diameter is highly flexible, accommodating the ground anchors typically used in residential solar installations.
You can rest assured regarding depth. Since residential solar piles typically only need to go a few meters deep, this machine has more than enough reach; there is no need to splice multiple extension rods together, as a single pass provides sufficient depth-saving you the hassle of constantly stopping to swap drill rods.
One of its most practical features is its climbing capability. If your yard has a slope, or if your work site is situated on a hillside, the machine can drive itself up gradients of up to 30 degrees without slipping backward or tipping over while operating. Its travel speed is moderate-neither too fast nor too slow-making it effortless to reposition or back up.

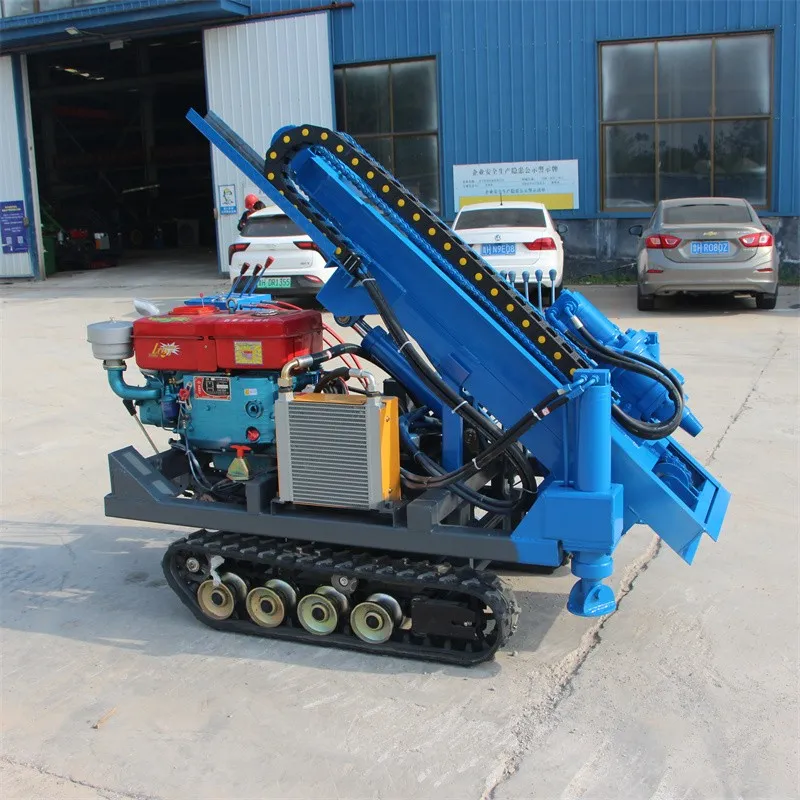

The drilling carriage can be tilted both forward and backward. Whether you need to drive piles at an angle along a boundary or right up against a wall foundation, the machine allows you to adjust the angle accordingly. Unlike some machines that can only drill vertically, leaving you helpless when faced with an off-center position, this unit offers true versatility.
When lifting the drill rod or extracting a pile, the machine generates ample lifting force, ensuring the tool doesn't get jammed in the ground and leave you struggling in frustration. During rotation, it intelligently adjusts its operation: it spins slowly but powerfully when encountering hard strata, and speeds up when drilling through softer soil-eliminating the need for you to constantly tweak the machine's settings manually.

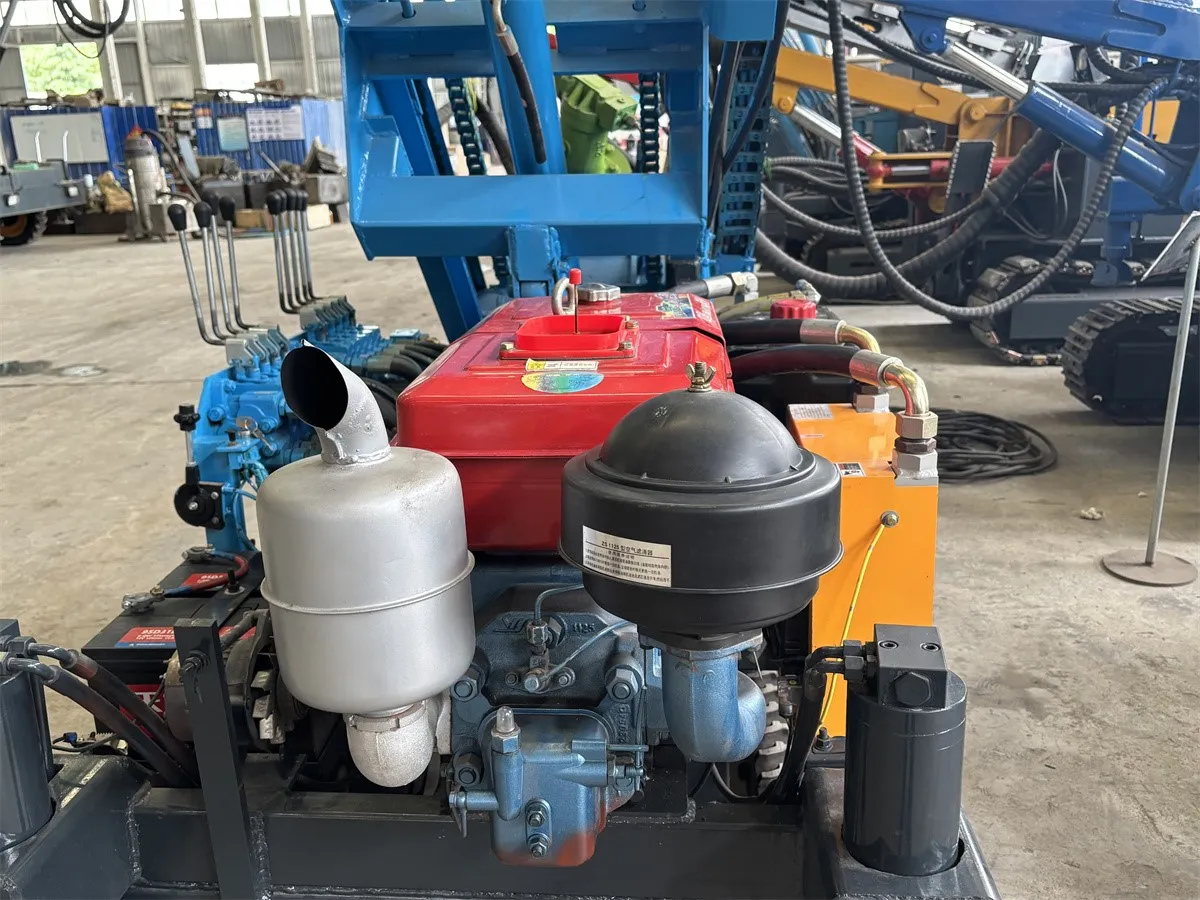

It is powered by a single-cylinder diesel engine with a simple, robust design; consequently, any diesel mechanic in a rural area or on a small construction site can easily handle its maintenance and repairs. The entire machine is lightweight enough to be transported on a standard light-duty truck, eliminating the need to hire a specialized flatbed tow truck.
Best of all, for added convenience, you can also equip it with a pile-screwing attachment. Once the pilot hole is drilled, simply drive in the ground screw-one machine handles both tasks, eliminating the need for constant switching.
The unit is compact, rugged, and unfussy; it simply gets the job done, reliably driving solar ground screws into place.
