Products Description

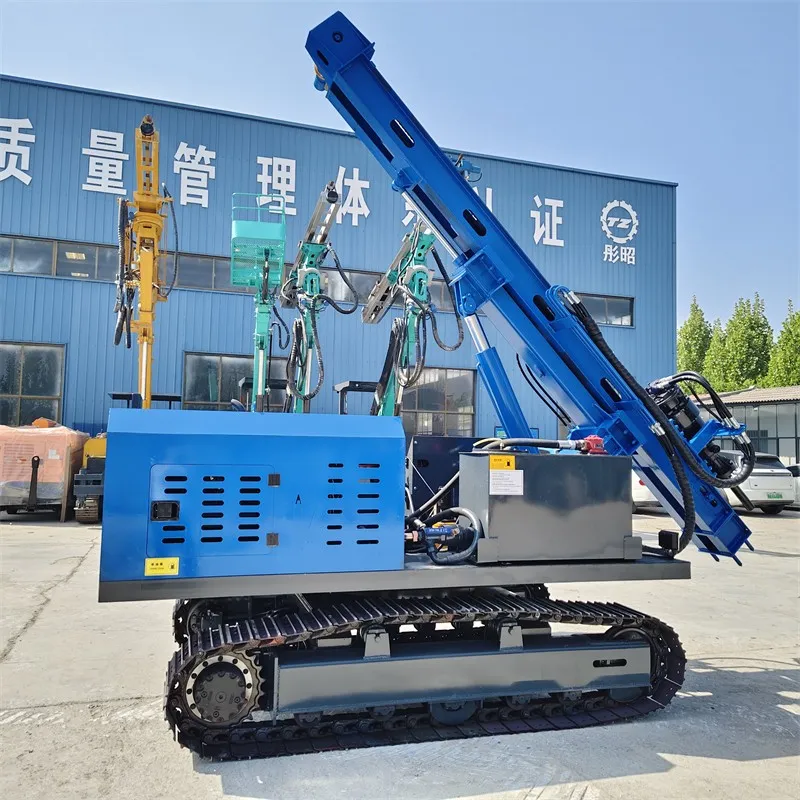

With the increasing trend of installing photovoltaic (PV) systems in rural areas and constructing small power stations on hilly terrain, many people encounter a common challenge: large drilling rigs cannot access the sites, while manual pile driving is both physically exhausting and time-consuming, yielding very little progress in a single day. This specialized hydraulic pile driver for PV applications was designed specifically to resolve these issues. Compact in size yet powerful in performance, it operates effortlessly in courtyards, on hillsides, and across open fields, making it particularly well-suited for small-scale PV projects.
|
Parameter |
Specification |
|
Model |
TZ-400 |
|
Chassis |
8-ton excavator chassis |
|

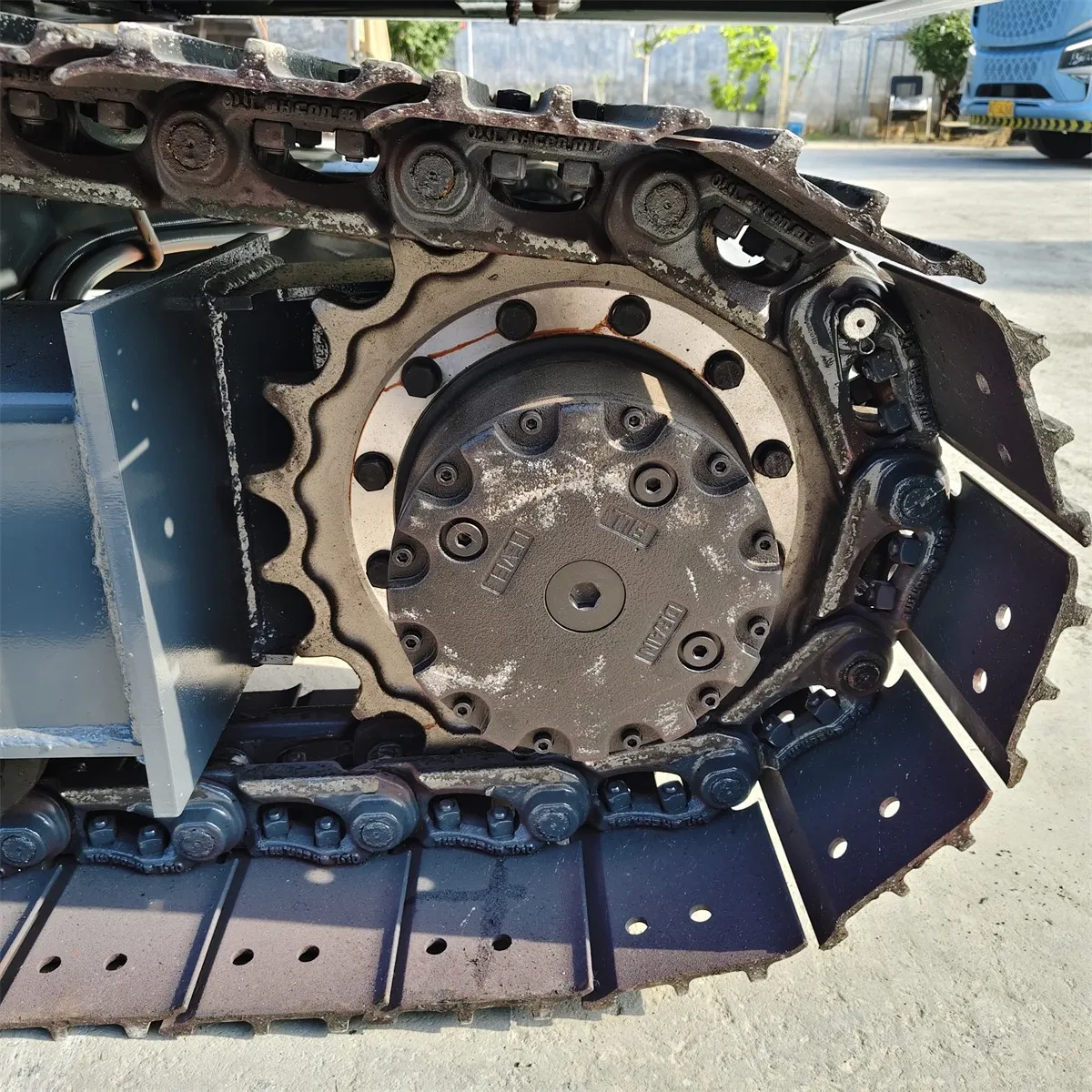

Travel motor |
TM10 |
|
Lower swing angle |
360° |
|
Swing bearing |
1 m internal tooth |
|
Upper swing angle |
45° |
|
Diesel engine (options) |
6105 Yuchai power / 4015 Yuchai power |
|
Hydraulic motors |
Dual hydraulic motor / five-star motor |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
4 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |

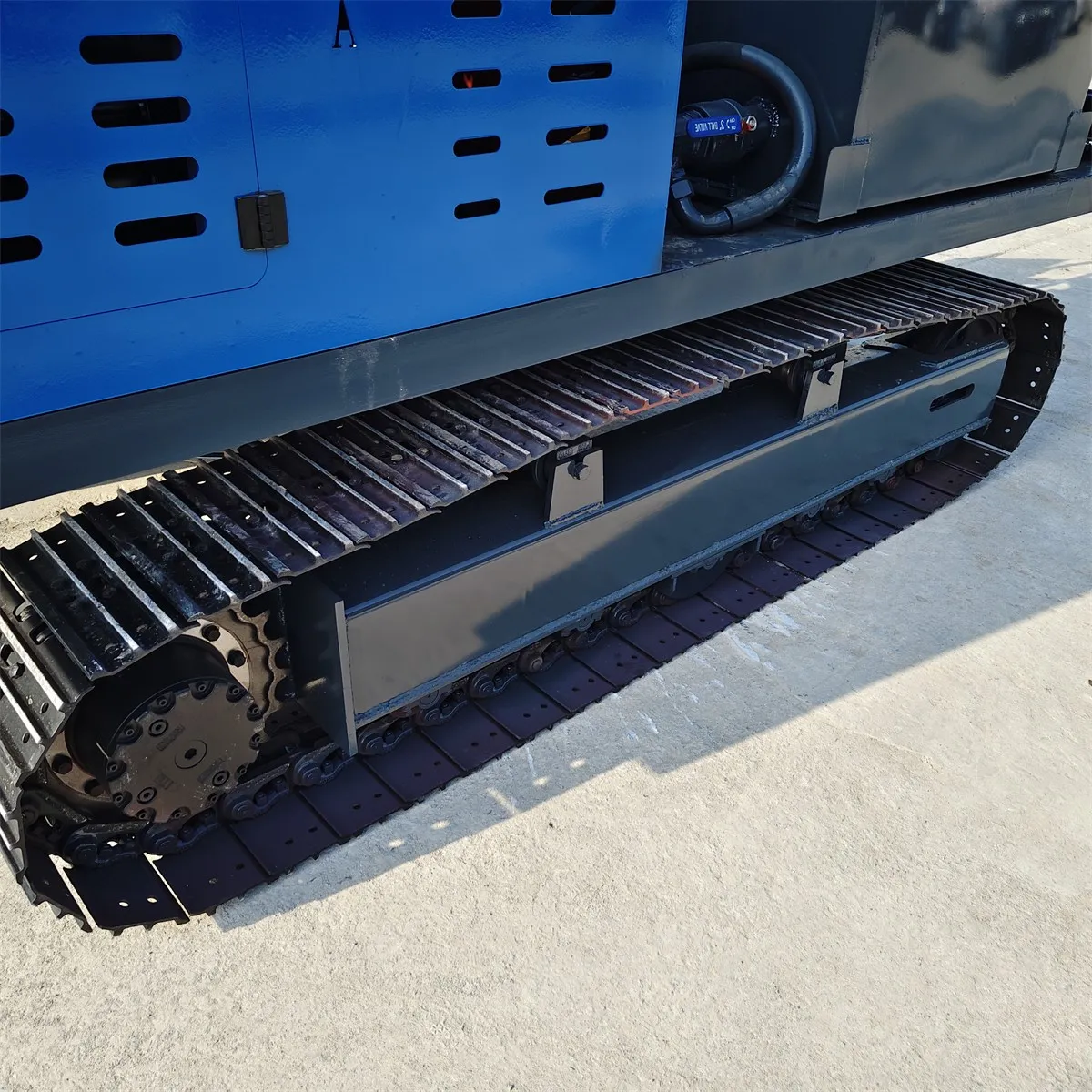

Featuring a crawler-track design, the machine maintains exceptional stability when traversing muddy ground or gentle slopes; it neither slips nor easily gets bogged down. It can easily navigate typical rural paths and open spaces right outside homes, eliminating the need for extensive site clearing or the construction of dedicated access roads for equipment-thereby saving a significant amount of preliminary preparation work. Its climbing capability is more than adequate, allowing it to operate effectively even on hilly PV project sites with moderate gradients.
Operation is remarkably simple, relying entirely on joystick controls; no complex training is required, allowing workers to master the machine quickly. During pile driving, the angle can be adjusted flexibly-whether driving piles vertically downward or drilling at an incline-ensuring precise alignment with the target position without the need to constantly reposition the machine, which saves a considerable amount of time. The single-stroke driving distance is sufficiently long to handle deeper piles with ease, minimizing the need for frequent pile extensions.
Powered by a diesel engine, the machine operates reliably even in remote outdoor locations without access to grid electricity, making it ideal for PV installations in distant rural areas. The unit is relatively lightweight, allowing it to be easily transported between sites using a standard light-duty truck; once a project is completed, moving the equipment to the next location is quick and convenient. Designed with common PV pile dimensions in mind, the machine's drilling range is perfectly matched to standard requirements. It produces neat, uniform holes, resulting in more secure pile foundations and, consequently, a more stable installation for the PV panels themselves.
With a robust and durable overall structure, the machine requires minimal daily maintenance; with standard routine care, it delivers consistent, reliable performance over the long term. For teams specializing in small-scale PV projects or residential courtyard installations, this equipment offers a low cost of ownership combined with high practical utility. It significantly accelerates work progress and reduces labor requirements, making it an exceptionally practical and valuable piece of small-scale pile-driving equipment.
