Products Description

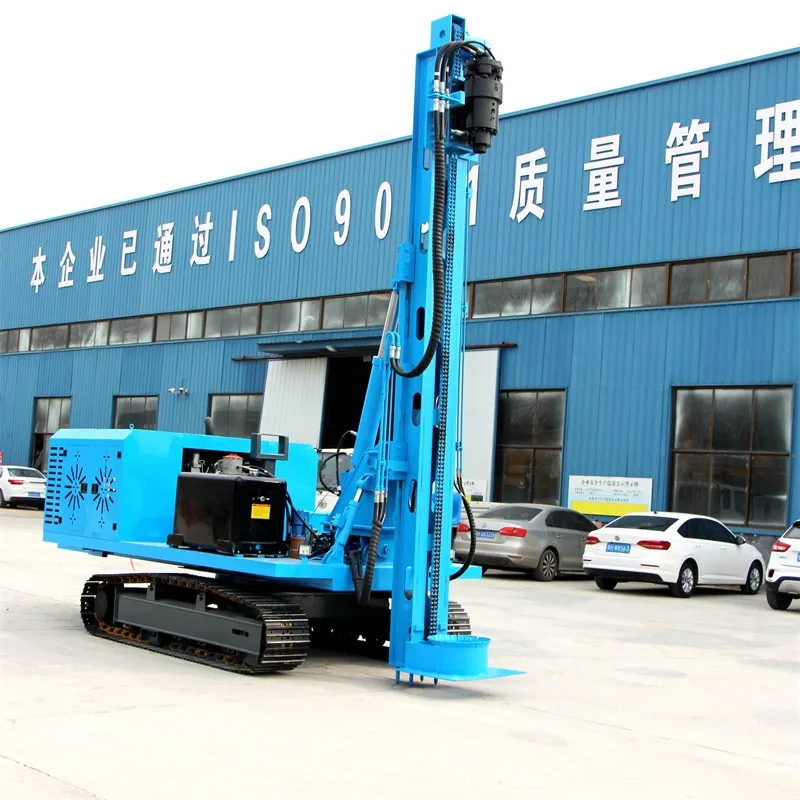

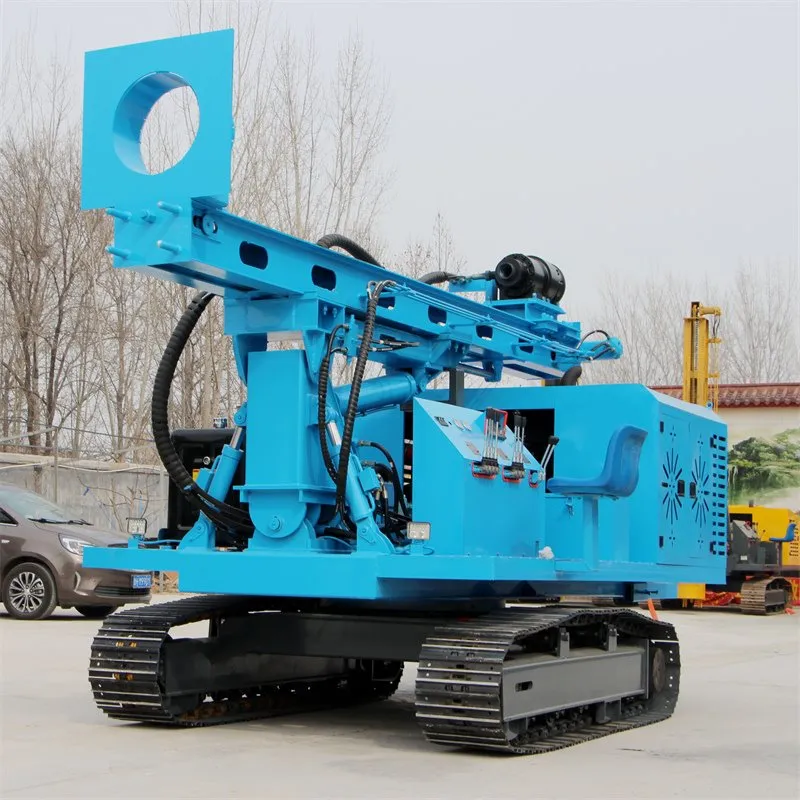

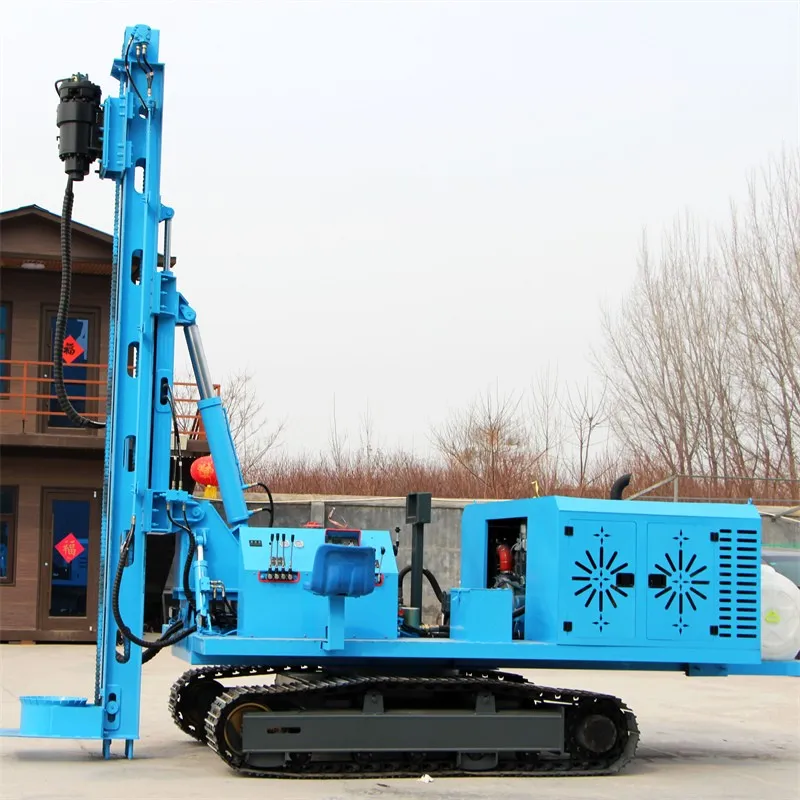

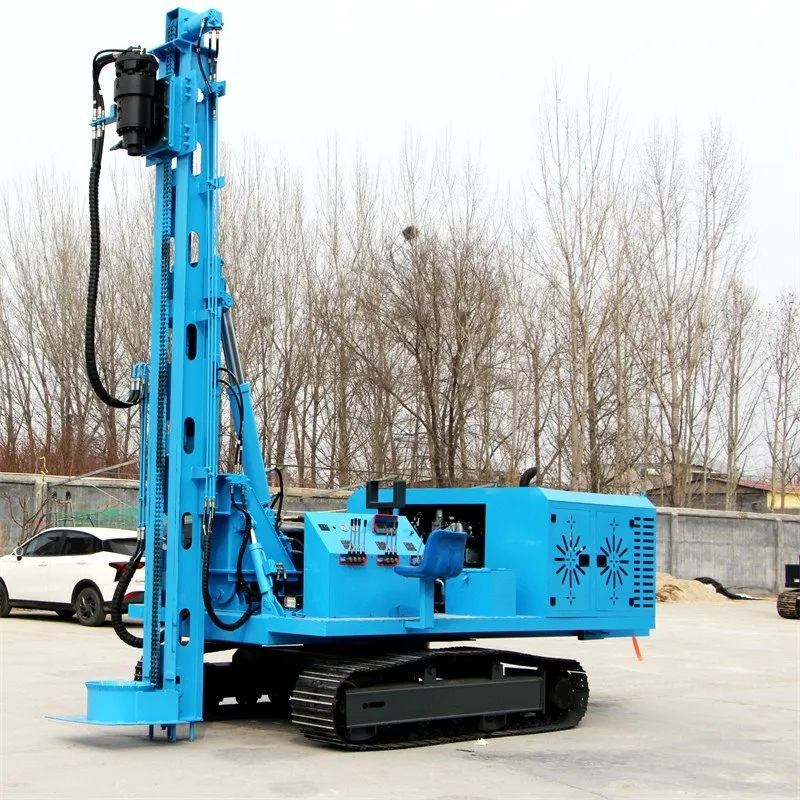

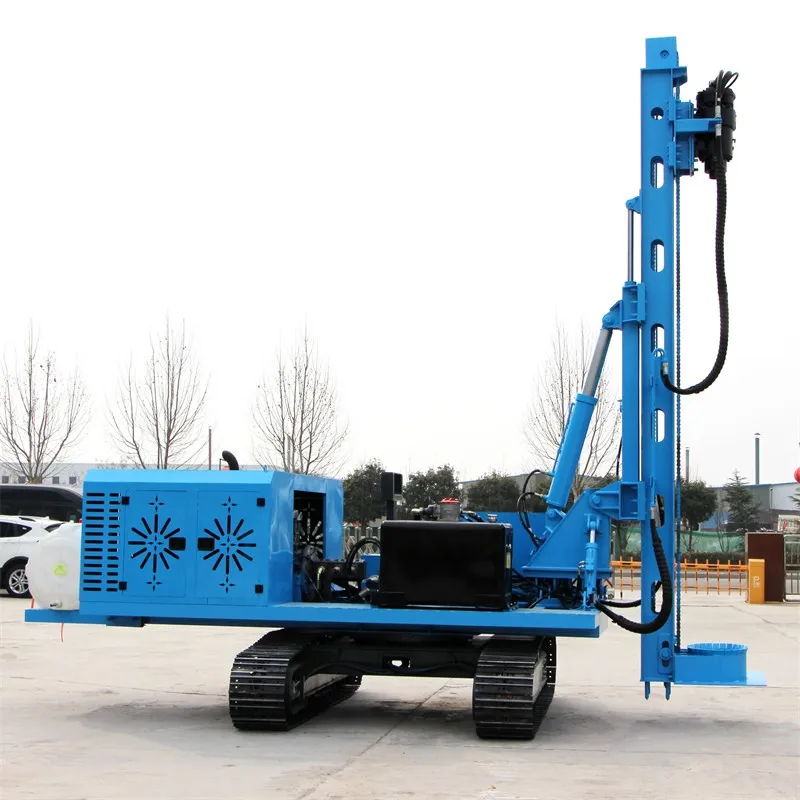

Looking for a piling machine that handles solar farm work without constant breakdowns or tricky maneuvers? The TZ-300A photovoltaic piling machine is built on an 8-ton excavator chassis, so you get stability, power, and 360° swing flexibility in one package. It's made for contractors who need to drill pile holes fast – and then move to the next spot without losing time.
Built for Solar Fields, Ready for Muddy Ground
|
Parameter |
Specification |
|
Model |
TZ-300A |
|
Chassis |
8-ton excavator chassis |
|
Travel motor |
TM10 |
|
Swing angle |
360° |
|
Internal tooth ring diameter |
1 m internal tooth |
|

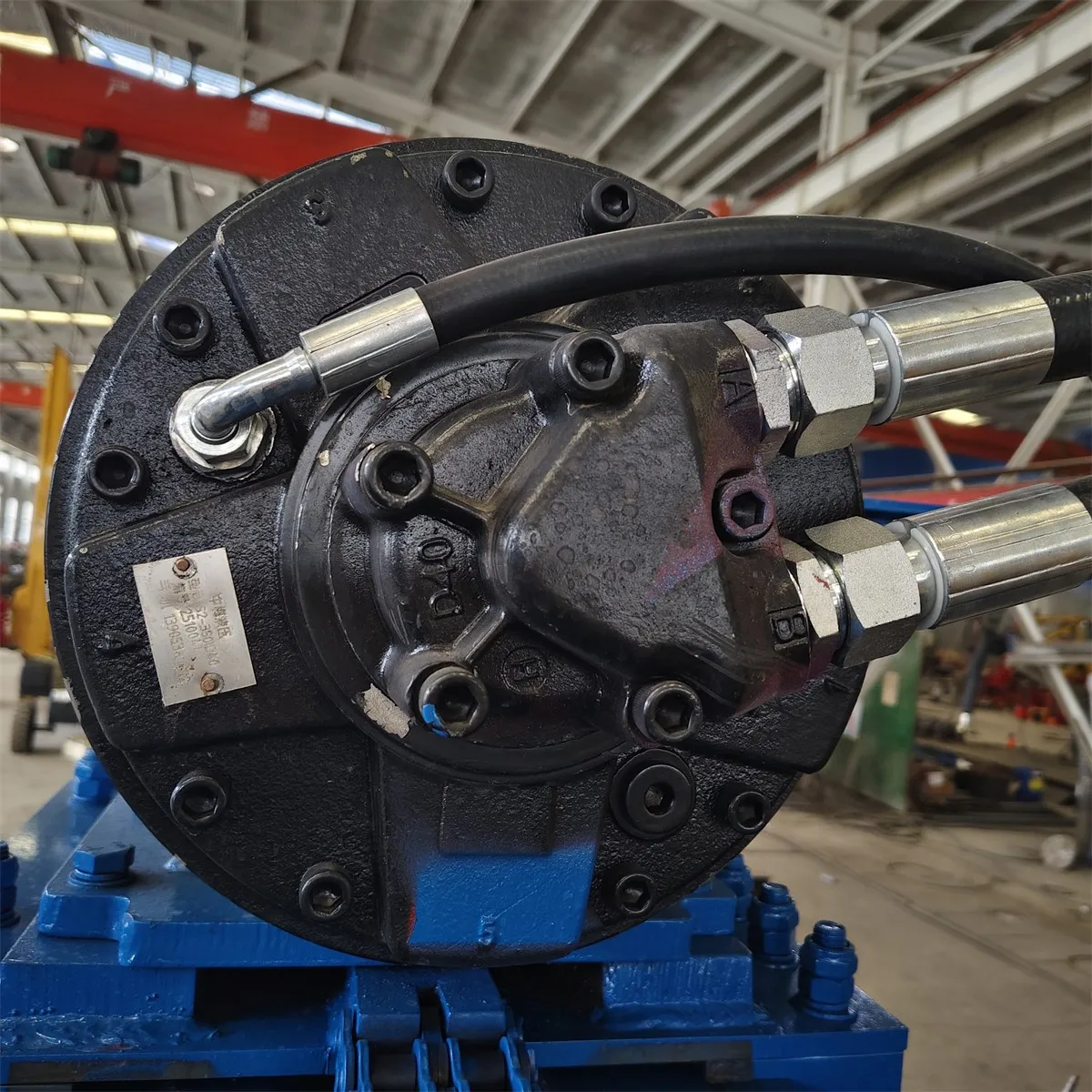

Hydraulic motors |
Dual hydraulic motor / five-star motor |
|
Engine options |
6105 Yuchai power / 4015 Yuchai power |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
3 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |
Photovoltaic installations often happen on uneven, soft, or rocky ground. The TZ-300A uses an 8-ton-class undercarriage with a 3000×2200 mm chassis length and width. That gives you a low ground pressure and a steady platform when the auger bites into hard soil. Total weight sits around 5000 kg – heavy enough to stay planted, but not so heavy that transport becomes a headache.
Easy Movement Between Pile Spots
Travel speed is 2.5–3 km/h. Not a race car, but you're not road-tripping – you're repositioning from one pile location to the next. The TM10 travel motor shifts smoothly, and the front & rear angle adjustment on the boom helps you drill on slopes or uneven pads.
Why the TZ-300A Works for Solar EPCs
One operator, one machine – no separate excavator and piling rig.
360° swing means less track maneuvering around already-placed piles.
Adjustable boom angle helps you drill level on sloped terrain.
Common engine and hydraulic parts – no waiting weeks for specialty spares.
If you're bidding on a solar farm and want to keep piling days predictable, take a hard look at the TZ-300A. It's not over-engineered, it's not under-powered – it's a workhorse that matches what photovoltaic ground mounting actually needs.
