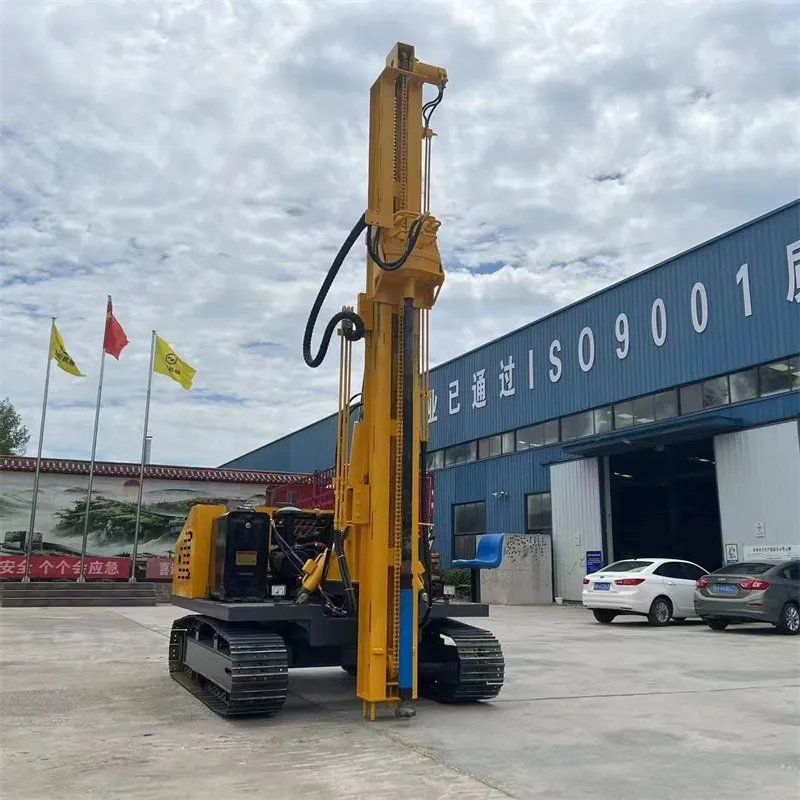

Products Description
If you've ever worked in the solar energy sector, you know the drill: climbing up and down hills every day, driving piles row after row. If your machinery breaks down, the whole day is a total waste.
|
Parameter |
Specification |
|
Model |
TZ-300B |
|
Chassis |
8-ton excavator chassis |
|
Travel motor |
TM10 |
|
Engine |
Yuchai Power(options: 6105 Yuchai / 4015 Yuchai) |
|

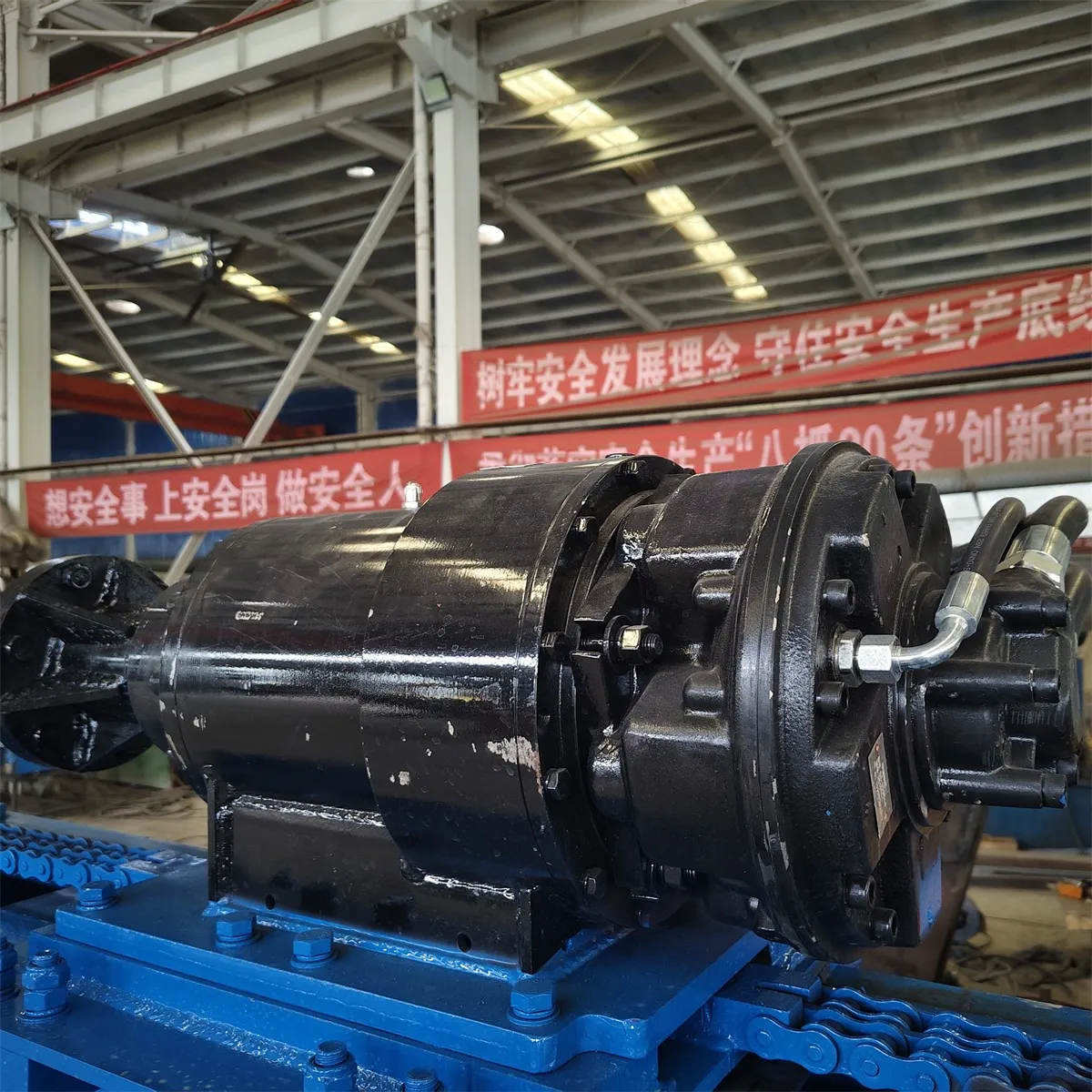

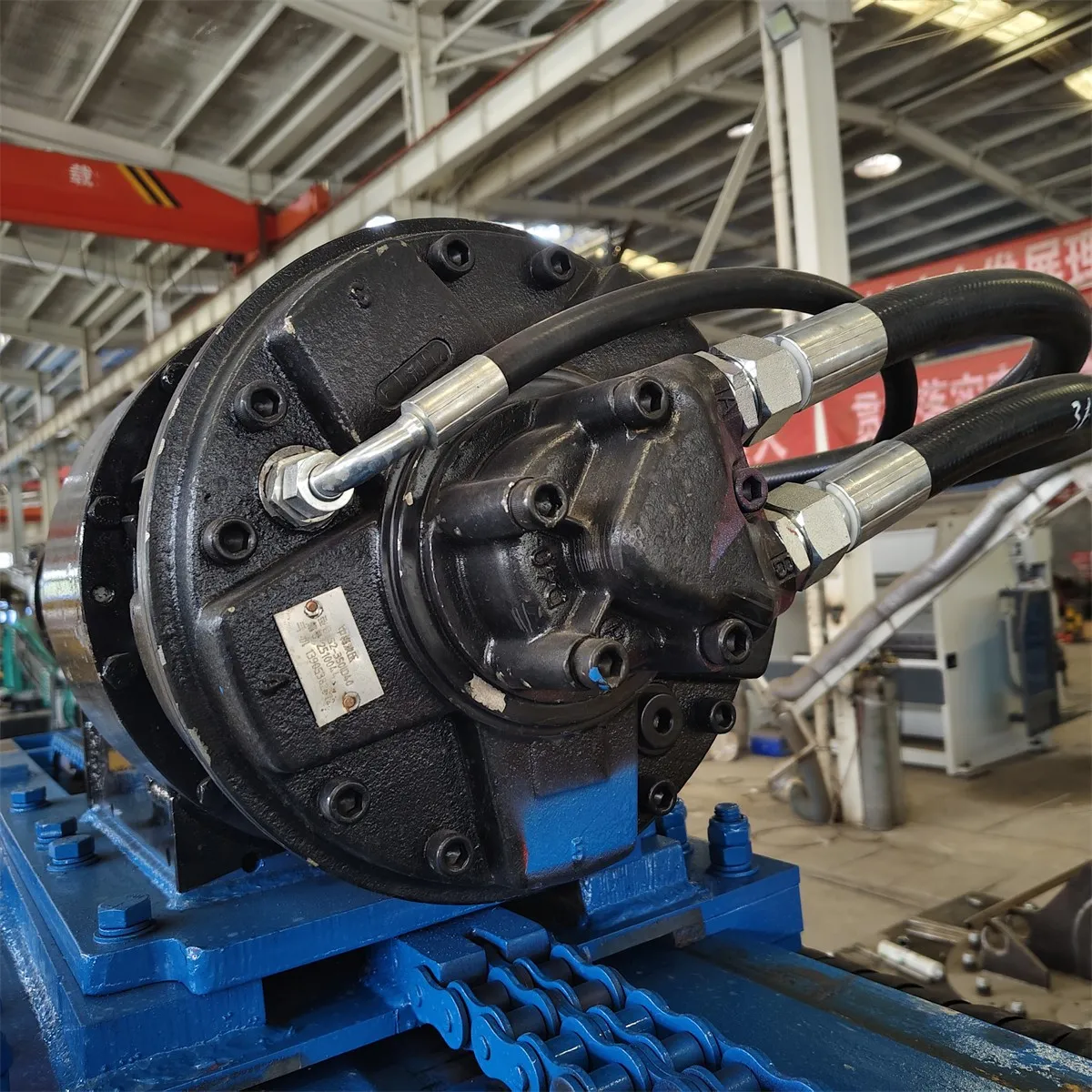

Hydraulic motors |
Dual hydraulic motor / five-star motor |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
3 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |
So, let's talk about how this specific machine performs on a solar construction site.
Traversing Slopes: The access roads at solar power plants are typically nothing but steep inclines and potholes. This machine can climb a 30-degree slope-just a touch of the throttle and it powers right up. Its maximum travel speed is 5 kilometers per hour-neither too fast nor too slow-making it just right for maneuvering around a busy construction site. With a ground clearance of 15 centimeters, it can easily clear rocks and earthen mounds without scraping its undercarriage. The tracks measure2.2meter in width and 3meters in length, ensuring a firm grip so the machine doesn't slip when parked on a slope.
Pile Driving: Solar piles require precise positioning and sufficient depth. This machine can drill holes ranging from 5 to 30 centimeters in diameter-covering every standard specification required for solar installations. It can reach a maximum depth of 20 meters; while most solar projects only require depths of a few meters, having this extra capability ensures you won't be caught off guard by any unique project requirements. Each drilling stroke can advance 3meters-meaning you can drive the pile all the way down in a single push without having to stop and attach extensions, saving you valuable time.
What about hard soil or weathered rock? This machine is designed to handle rock hardness levels ranging from 6 to 20-capable of tackling the vast majority of geological strata encountered on solar construction sites. With a torque of 10000 Newton-meters and a rotational speed of 150 RPM, it packs enough punch to drill through even the hardest ground.
Power Source: It is driven by a 132-horsepower, 4-cylinder diesel engine. Since high-quality fuel isn't always available on remote solar sites, this machine is built to be rugged and non-discriminating when it comes to fuel quality. The entire unit weighs 5000 kilograms-relatively lightweight-yet its chassis remains exceptionally stable, ensuring the machine operates without any wobbling or instability.

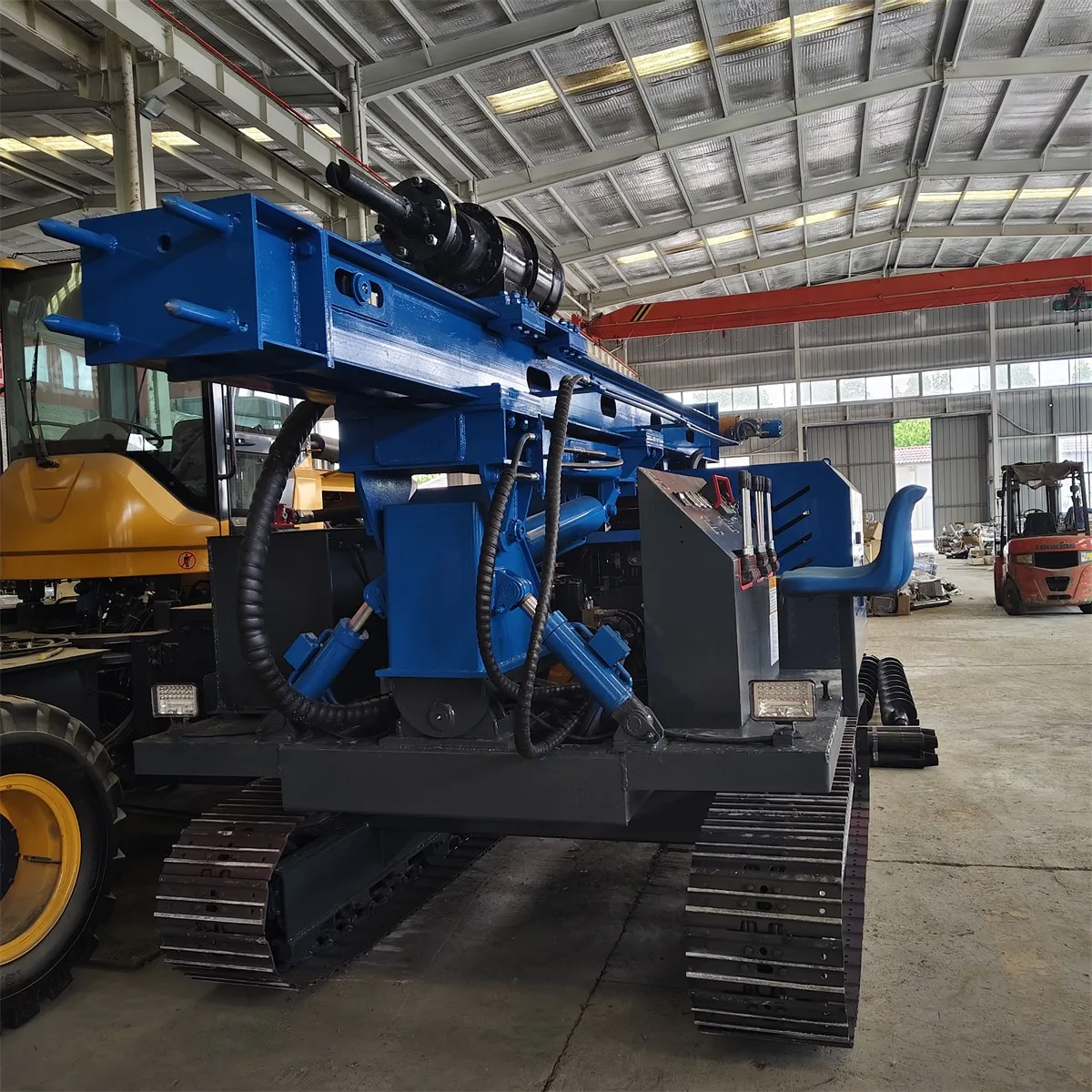

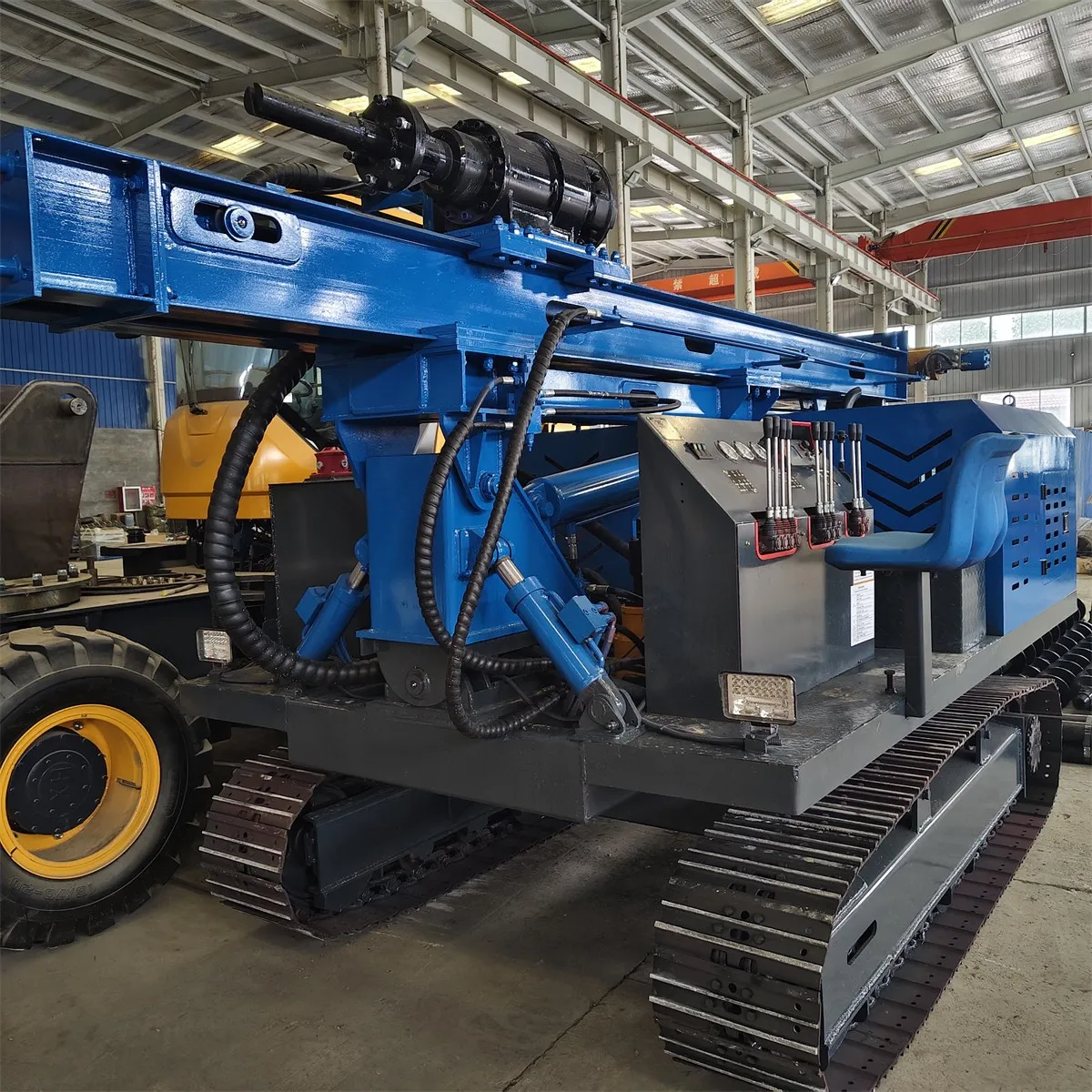

Adjustable Mast: The drilling mast features an adjustable angle mechanism. Since solar pile designs sometimes call for angled installations, you simply need to adjust the mast-eliminating the need to constantly reposition and turn the entire vehicle. This feature makes working on steep hillsides particularly efficient and hassle-free.
Pneumatic Operation: This machine operates using pneumatic power, so it requires a compatible air compressor. It works perfectly with standard, off-the-shelf air compressors available on the market-meaning you won't need to invest in any specialized or custom-made auxiliary equipment.
Optional Pile Screwer: If your project requires screwing piles into the ground rather than driving them, the manufacturer can custom-fabricate a specialized pile-screwing attachment for you upon request. To sum up my experience working in the PV sector: this machine is fearless on steep slopes, drives piles quickly, handles hard soil with ease, and is rugged and reliable-it rarely breaks down. Using it on a solar construction site allows us to drive a significant number of piles in a single day, making the job completely hassle-free.
