Jining Tongzhao Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of pv power station pile machine in China. If you're going to wholesale durable pv power station pile machine made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Products Description

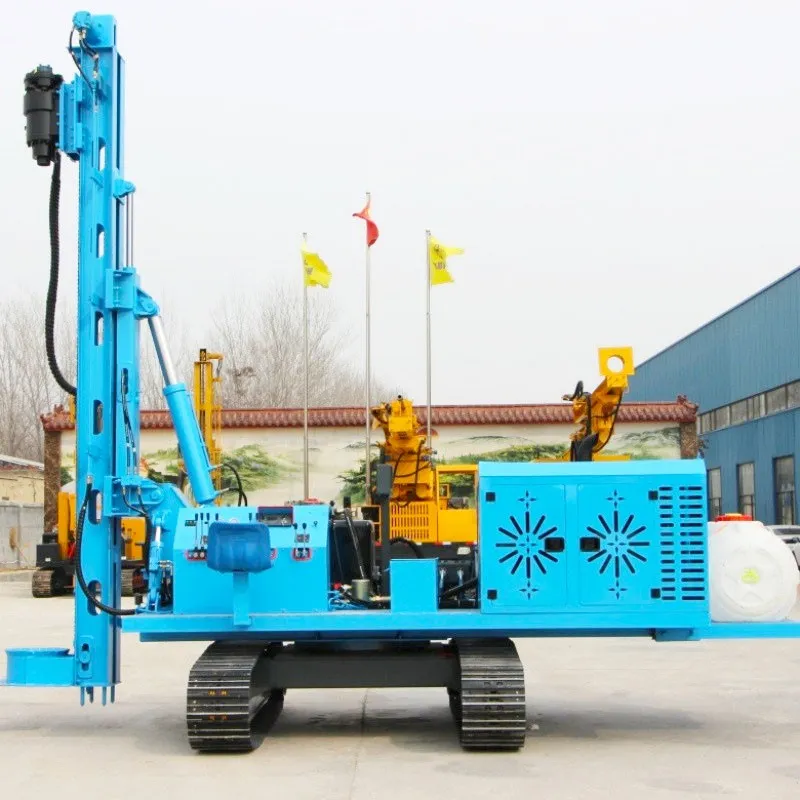

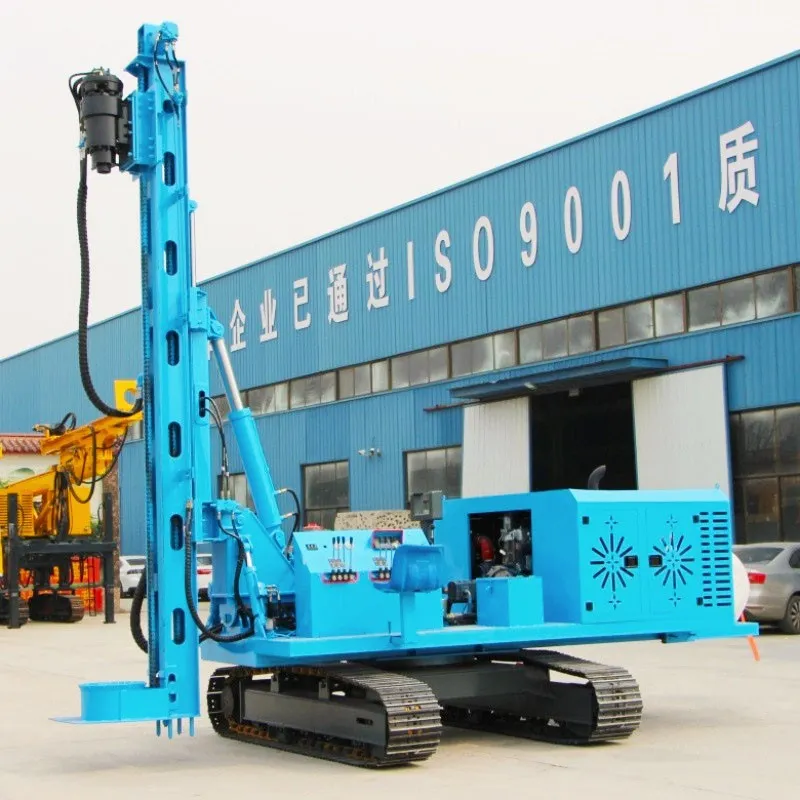

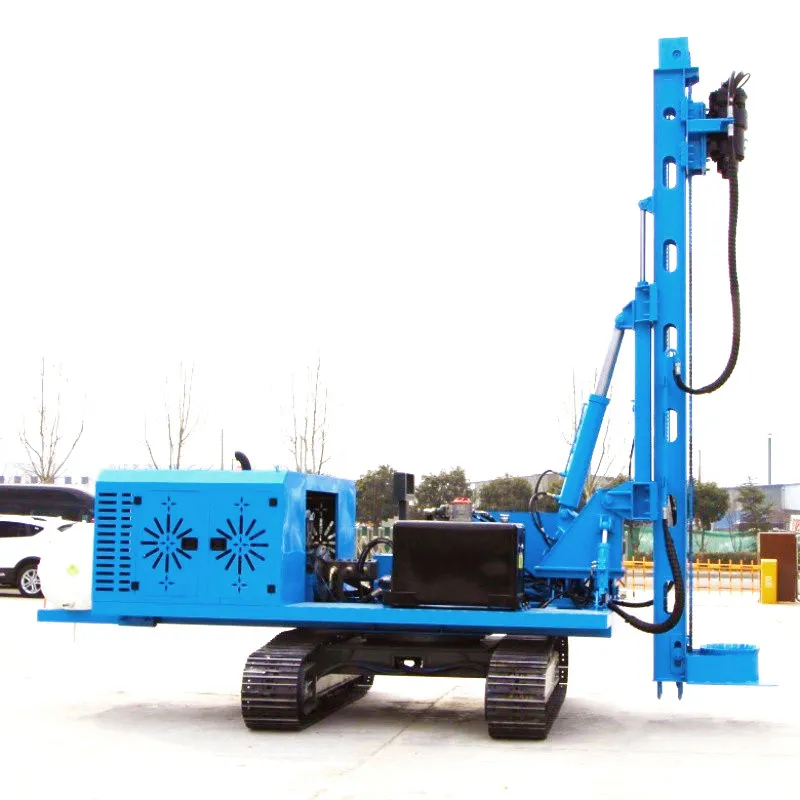

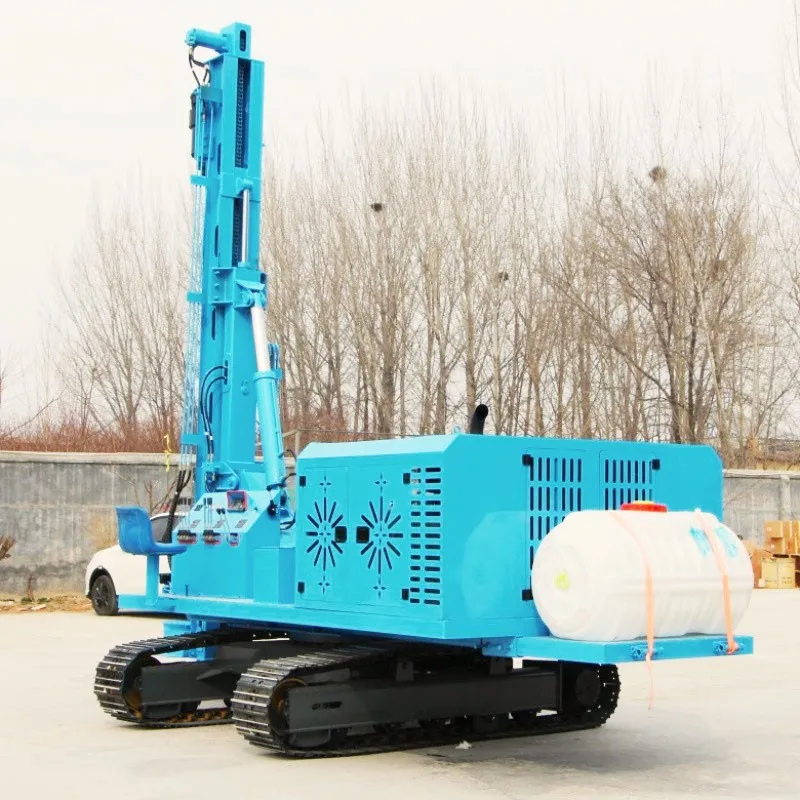

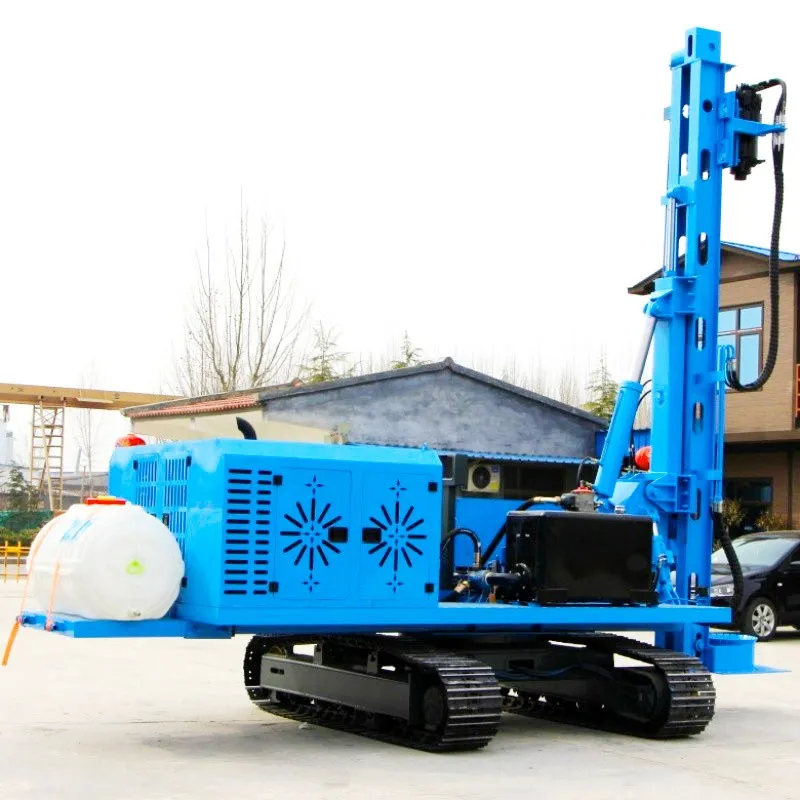

Anyone who has ever built a photovoltaic power station understands that pile foundation construction is often the critical bottleneck in the project schedule. Given the vast land areas, the sheer number of pile points, and the potential for varying geological conditions, selecting the wrong equipment can easily lead to significant project delays. The PV Power Station Pile Machine was engineered specifically to meet the demands for "speed, stability, and high volume" in power station piling operations; its design focus is not merely on drilling a single hole, but rather on how to efficiently complete thousands-or even tens of thousands-of holes.
|
Parameter |
Specification |
|
Model |
TZ-400 |
|
Chassis |
8-ton excavator chassis |
|
Travel motor |
TM10 |
|
Lower swing angle |
360° |
|
Swing bearing |
1 m internal tooth |
|
Upper swing angle |
45° |
|
Diesel engine (options) |
6105 Yuchai power / 4015 Yuchai power |
|

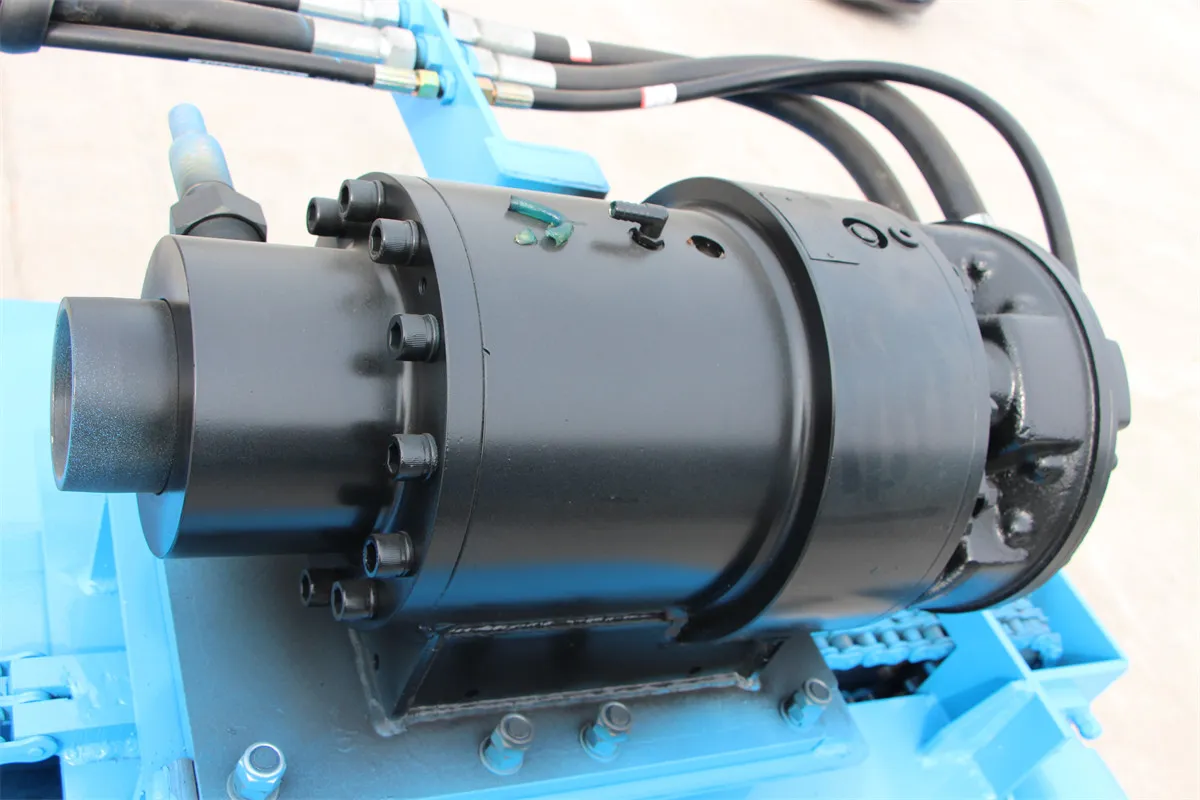

Hydraulic motors |
Dual hydraulic motor / five-star motor |
|
Flow rate |
80–158 L/min |
|
Hydraulic oil pressure |
20 MPa |
|
Boom |
Front & rear angle adjustment |
|
Pressurization system |
Hydraulic motor |
|
Travel speed |
2.5–3 km/h |
|
Cooling system |
Dual electronic hydraulic oil cooler |
|
Drilling depth |
4 m (customizable) |
|
Drilling diameter |
300–500 mm |
|
Total weight |
Approx. 5000 kg |
|
Chassis length |
3000 mm |
|
Chassis dimensions (L×W) |
3000 × 2200 mm |

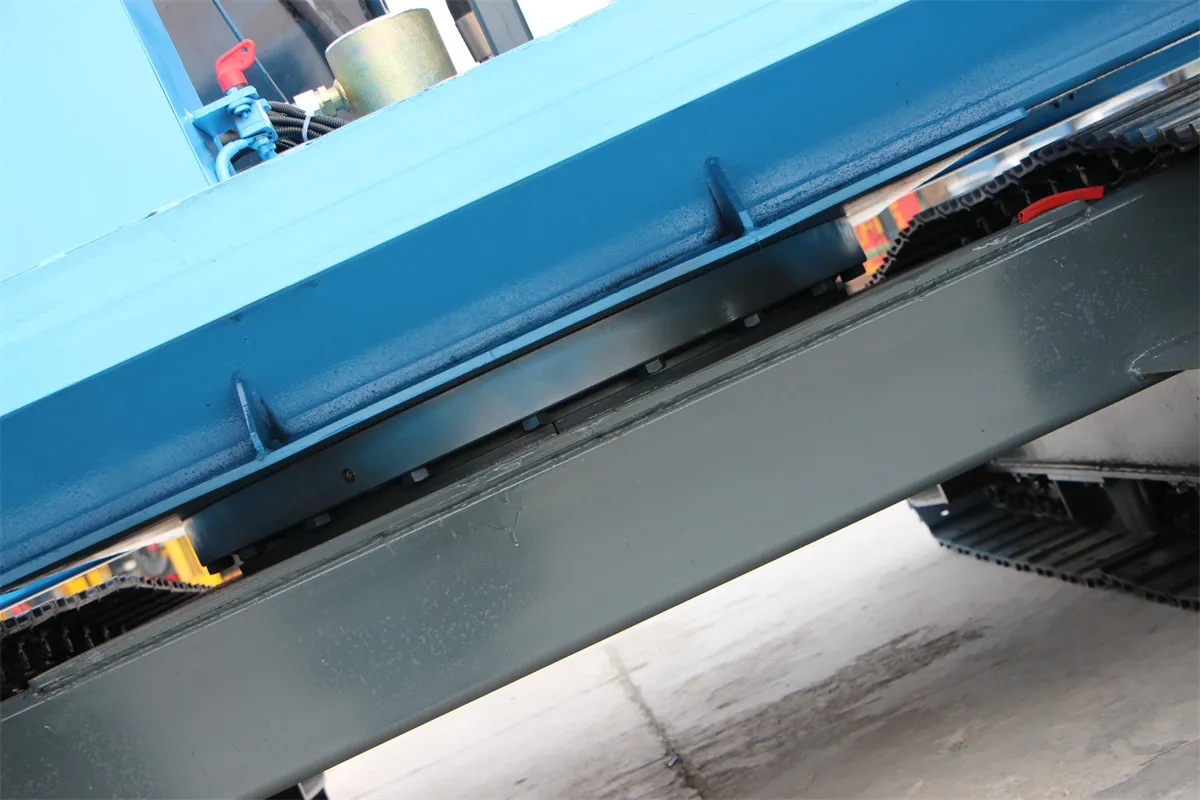

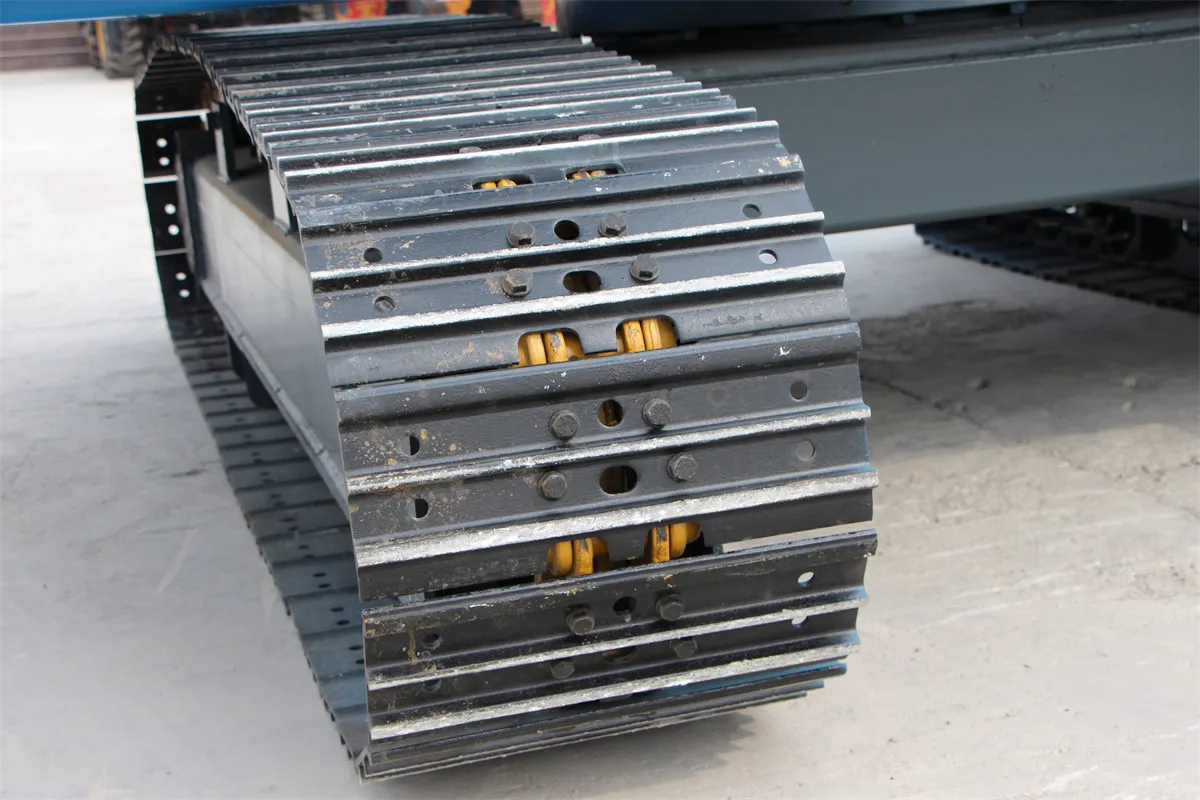

Stable Crawler Chassis: No Getting Stuck on Site. The crawler chassis features a large ground contact area, making it highly resistant to sinking in soft soil, sandy terrain, or backfilled ground, thereby ensuring smooth and stable movement. Site transitions require neither cranes nor manual towing; the machine can simply drive itself to the next pile location, making it ideally suited for continuous operations across large-scale photovoltaic sites.
Full Hydraulic System: The Fusion of Power and Precision.Piling for power stations demands not only speed but, more importantly, precision. The vertical alignment of the pile holes directly impacts the efficiency of subsequent mounting bracket installations and the overall structural integrity of the facility. Here, the full hydraulic system demonstrates its absolute superiority:

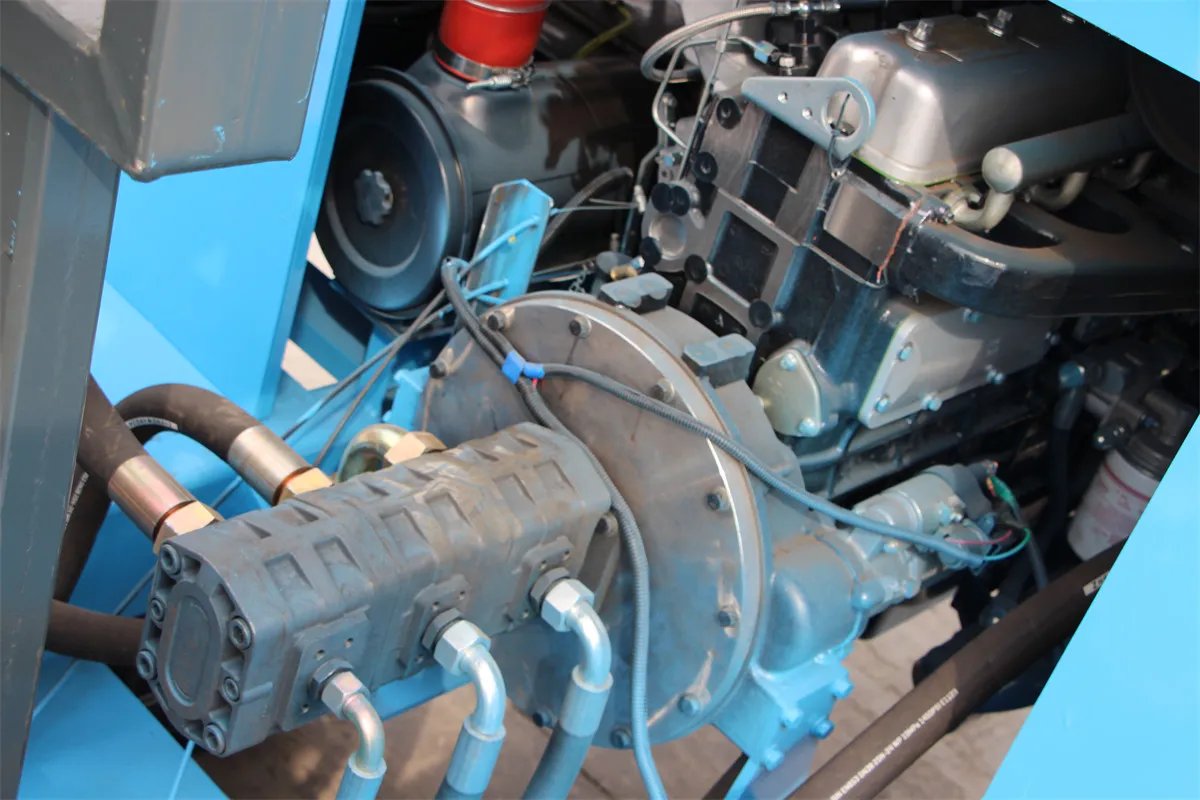

Powerful and Sustained Performance: A 4-cylinder diesel engine provides a reliable power source, while the hydraulic system transmits this power smoothly and consistently. Performance remains undiminished even during prolonged, continuous operation-perfectly matching the high-intensity work rhythm of power stations, where operations typically run from "sunrise to sunset."
Multi-functional Versatility: By utilizing optional attachments (such as a custom screw-pile driver), the machine can rapidly switch between drilling mode and screw-pile installation mode. This adaptability accommodates various power station foundation schemes, thereby minimizing overall equipment investment requirements.
Adaptability to Complex Slopes: Stability Enables High-Intensity Work.Power station sites are frequently located on undeveloped land or hilly terrain. This machine boasts a climbing capability of up to 30°, allowing it to effortlessly handle the sloping terrain typical of most power station sites. Furthermore, a minimum ground clearance of 150 mm is sufficient to clear field ditches, ridges, and other minor ground obstacles. With a travel speed ranging from 0 to 5 km/h, the machine maneuvers nimbly within the power plant site, minimizing downtime spent waiting for tow trucks and enabling a highly efficient, assembly-line-style workflow-characterized by a seamless "drill a section, move to the next" operation.
A Scene from the Field: Across the vast expanse of a photovoltaic farm, this machine advances steadily along the designated layout lines. From the comfort of the operator's seat, the user leverages the hydraulic system's precise controls to rapidly position the unit, verify vertical alignment, and initiate drilling. Should the drill encounter a localized hard stratum, the system automatically increases torque to cut through it smoothly. Upon completing a single hole, the crawler tracks inch forward a few meters to the next designated point, and the work continues. By the end of the day, hundreds-even thousands-of compliant pile holes have been completed with high efficiency, clearing the most significant obstacle for the subsequent construction phases.
