Products Description
Rock bolting is the backbone of modern tunnel support systems. Together with shotcrete, rock bolts form the primary support mechanism that keeps underground excavations stable and safe.
|
13-15 meters double-arm tunnel parameter table |
|
|
Vertical Height (m) |
13–15 (including 4 m stroke slide frame) |
|
Diesel Engine Model |
Four-cylinder Yuchai |
|
Engine Power / Speed |
75–130 kW / 2600 r/min |
|
Electric Motor |
55 kW |
|
Motor Pump |
K3V90-45 |
|
Pump Head |
120 |
|
Upper Swing |
17-inch 360° |
|
Lower Swing |
360° rotation |
|
Lower Turntable (m) |
1 |
|
Operation Mode |
Dual lower operation, lower cab operation, and blue frame remote control operation |
|
Support Arm |
2-section single boom |
|
Working Platform Arm |
2-section single boom |
|
Power Head Type |
Dual hydraulic power head / hydraulic rock drill (optional) |
|
Drilling Angle |
Drills horizontal / inclined / vertical holes |
|
Chain-type Slide Frame |
4 m per drill |
|
Pressurizing Motor |
1000 |
|
Drilling Diameter (mm) |
42–89 |
|
Travel Motor |
TM22 |
|
Track (mm) |
4000–2600 |
|
Track Shoe Width |
400 |
|
Engine Oil Pump |
High-pressure pump 63/32/32 |
|
Outriggers |
Four fixed hydraulic outriggers |
|
Enclosure |
Full enclosure (including engine cover) |
|
Oil Pressure (MPa) |
20 |
|
Radiator |
Heavy-duty dual fan FLJ-136 Jintai |
A specialized tunnel rock bolting rig is not a generic drilling machine. It is an engineered solution purpose-built for one critical task: installing rock bolts efficiently, accurately, and safely in underground environments. Unlike standard drill rigs adapted for bolting work, a dedicated rock bolting jumbo integrates drilling, bolt handling, and sometimes mesh installation into a single, streamlined operation.
This comprehensive guide covers everything you need to know about specialized tunnel rock bolting rigs: what they do, what features matter most, how they are used across different projects, and what to look for when making a purchasing decision.

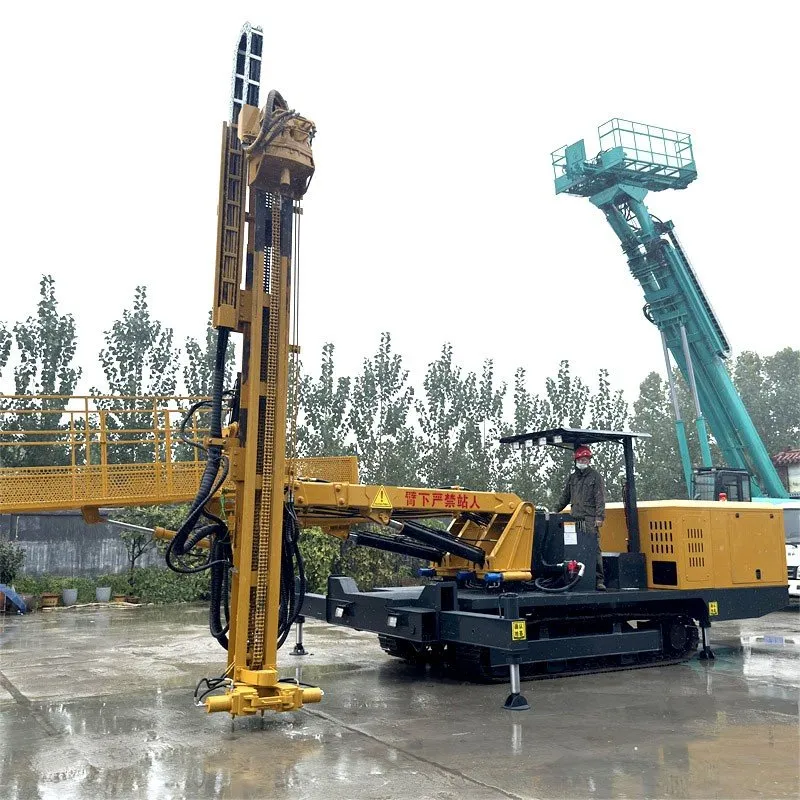

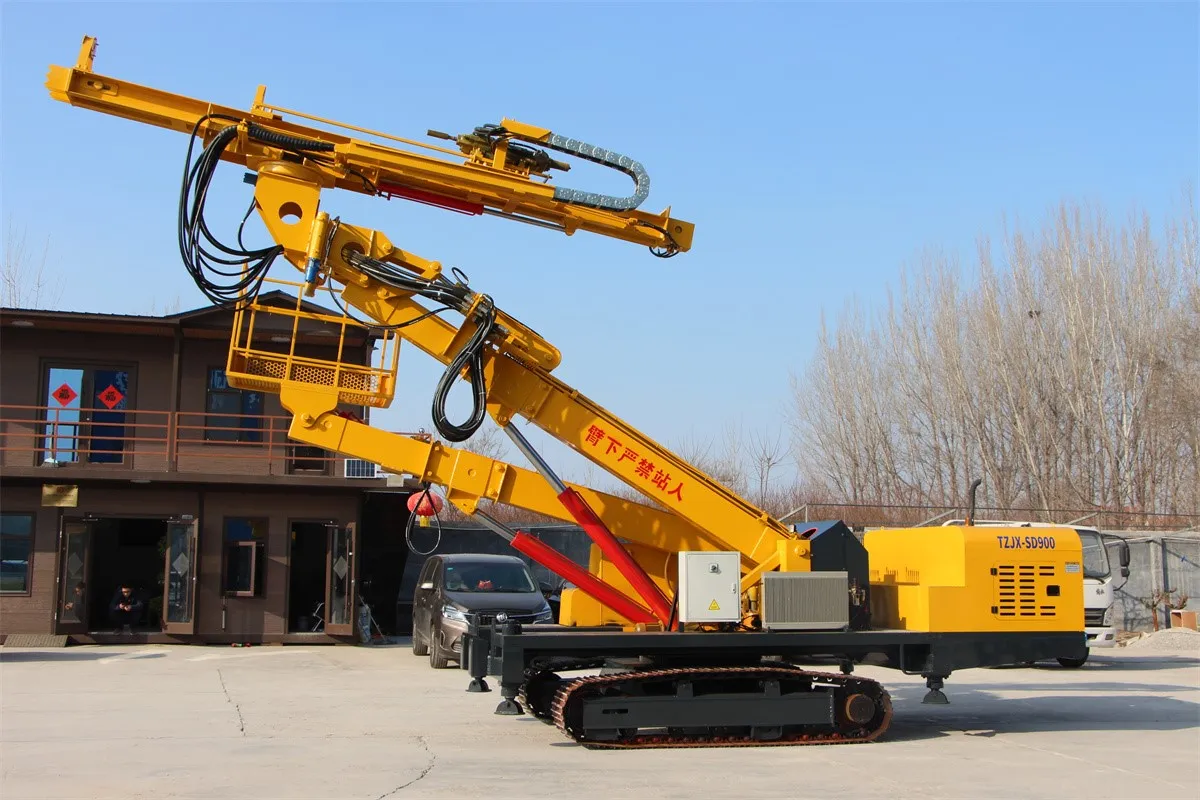

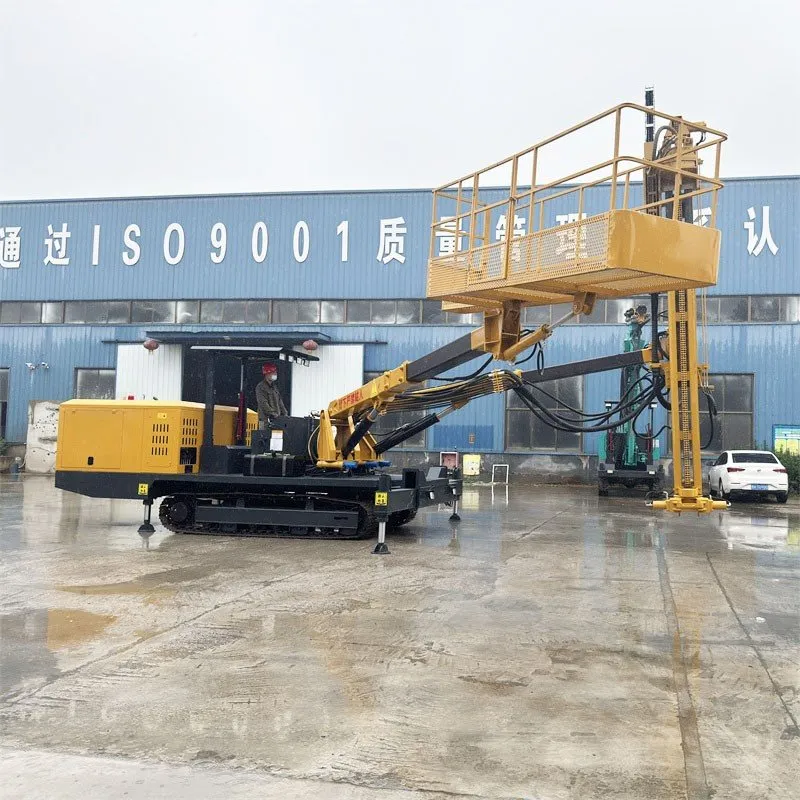

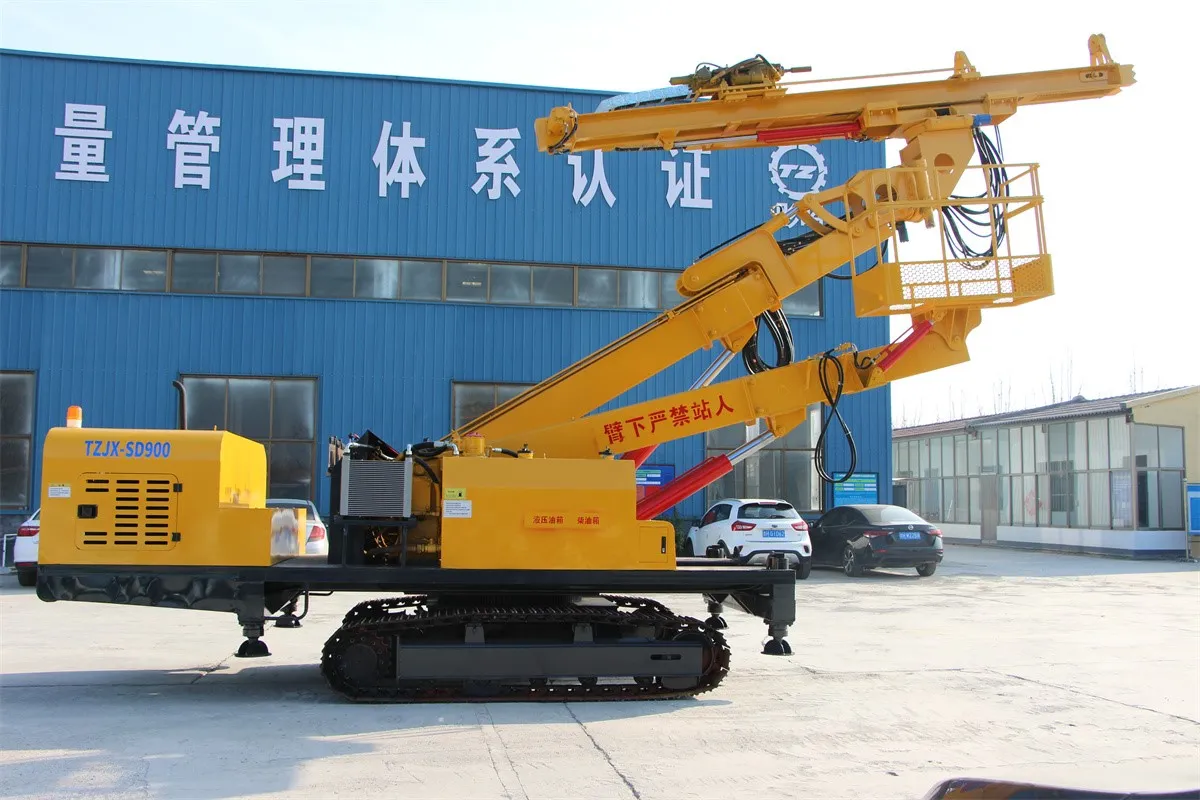

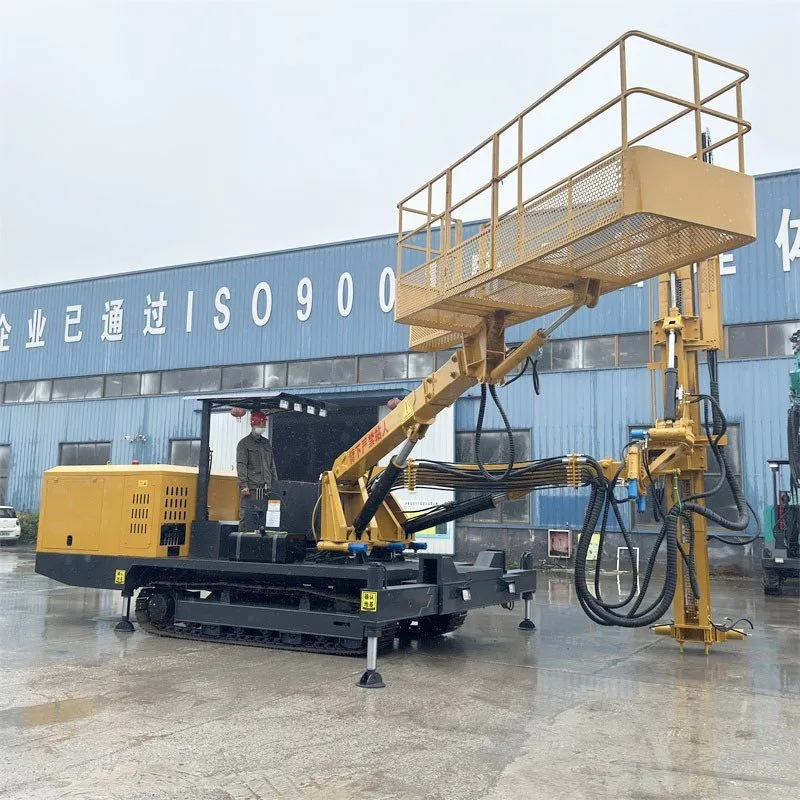

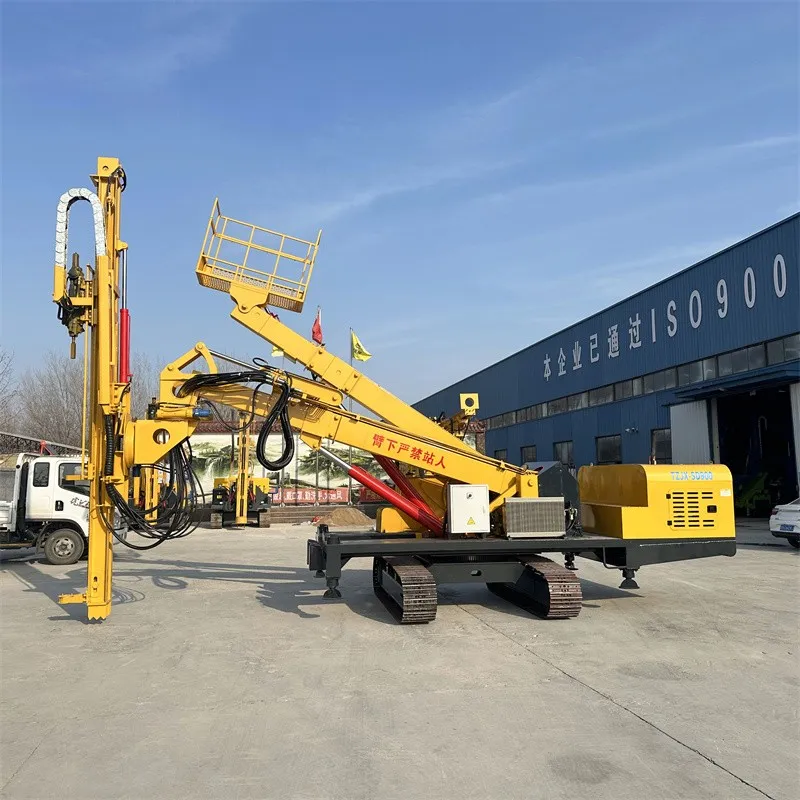

A tunnel rock bolting rig - often referred to as a bolting jumbo - is a mobile, self-propelled machine designed specifically for drilling bolt holes and installing rock bolts in underground tunnels and mines. These machines are typically mounted on crawler tracks or wheels and equipped with:
- Hydraulic rock drills for precise hole drilling
- One or multiple drilling booms for positioning flexibility
- Bolt handling systems for automated or semi-automated bolt installation
- Hydraulic power systems that drive all machine functions
- Operator cabins with ergonomic controls for safe, efficient operation
