Jining Tongzhao Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of two boom tunnel jumbo drill in China. If you're going to wholesale durable two boom tunnel jumbo drill made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Products Description
In tunnel construction, time is money. This is especially true for large-section main tunnels, where single-boom machines are too slow to maneuver, and manual labor simply cannot keep pace with the schedule. That is precisely when you need this dual-boom tunnel drilling jumbo; it is literally equipped with two "arms"-both fully operational-maximizing efficiency to the absolute limit.
|
Parameter |
Value |
|
Vertical Height (including feed) |
8-15 m (customizable) |
|
Engine |
Yuchai Power (customizable) |
|
Motor (x2) |
55 KW |
|
Hydraulic Pump (x2) |
K3V112S-112R-32 |
|
Water Pump Head (x2) |
90 m |
|
Upper Rotation (x2) |
360° continuous |
|
Boom Swing (Left/Right) |
±45° |
|
Operation Method |
Dual Lower Operator Stations |
|
Working Boom (x2) |
Two-stage single boom |
|
Power Head |
PD-200L (Hydraulic rock drill, optional) |
|
Drilling Angle |
Full coverage |
|
Feed Type (x2) |
Feed Slide (x2) |
|
Single Feed Length |
4 m per rod (customizable) |
|
Propulsion Motor (x2) |
Hydraulic feed |
|
Drilling Diameter |
38-76 mm |
|
Travel System |
Closed-loop Hydraulic System |
|
Drive System |
4-Wheel Drive |
|
Brake System |
Air-cut Brake |
|
Front/Rear Axle |
WL96-H2A-Q2A |
|
Torque Converter |
Model 340 |
|
Tire |
880.295-20/7.5 |
|
Engine Oil Pump |
40/40 High-pressure Oil Pump |
|
Max Travel Speed |
10 Km/h |
|
Coverage |
Full-body guard (including engine hood) |
|
System Oil Pressure |
20 MPa |
|
Stabilizer Legs |
4 hydraulic outriggers (front, left, right extendable) |
|
Radiator (x2) |
FLJ-136 (Jintai Brand) |

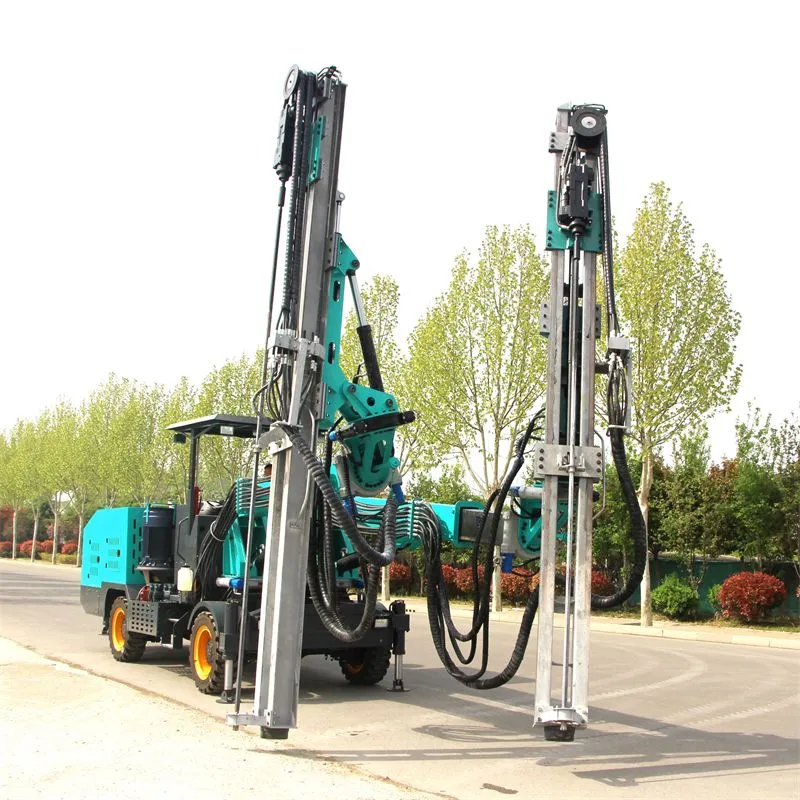

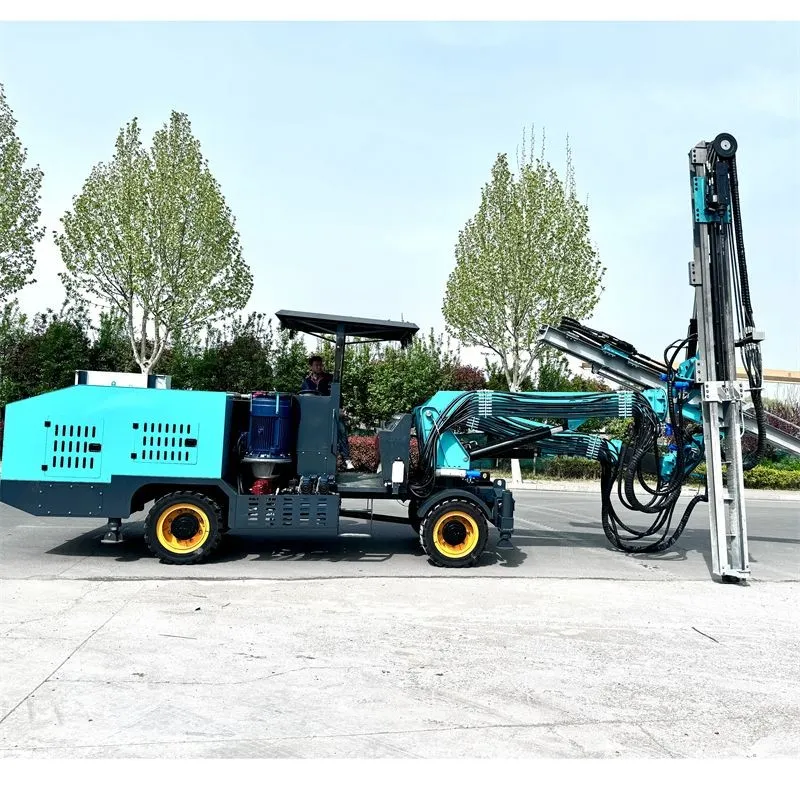

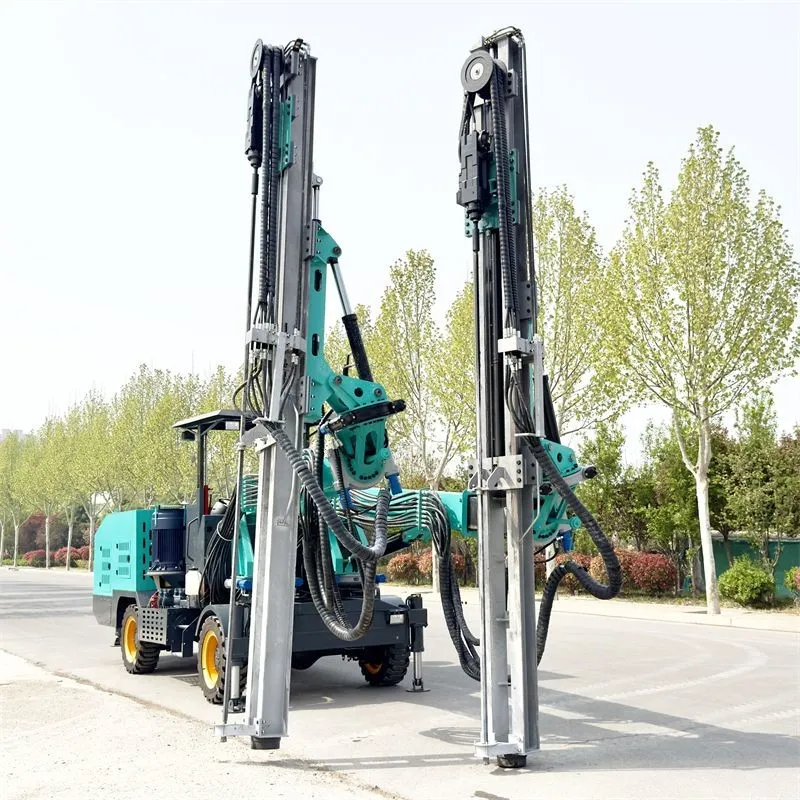

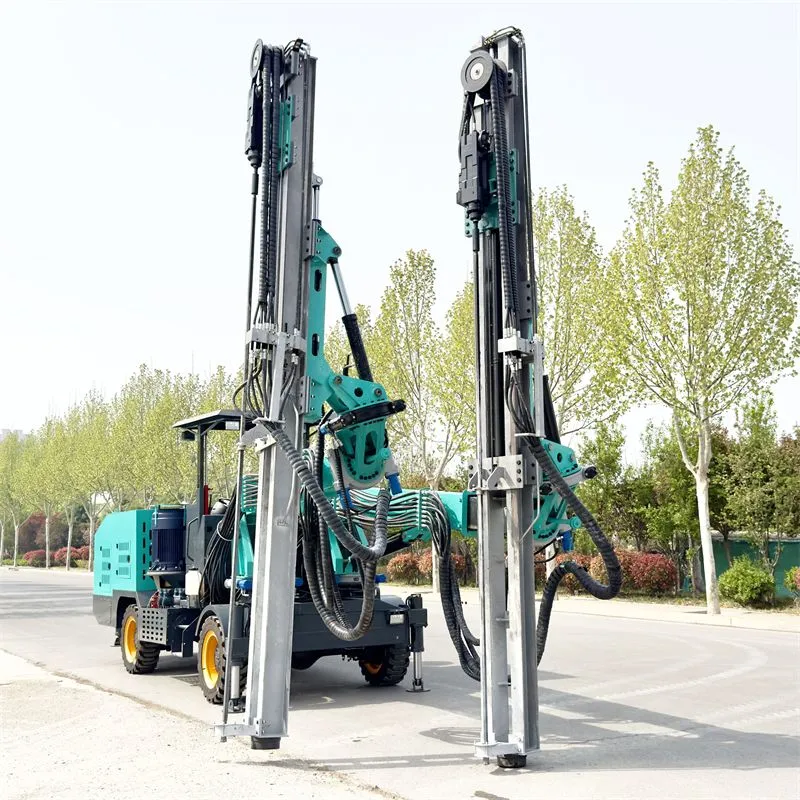

Two Arms, Working in Perfect Harmony

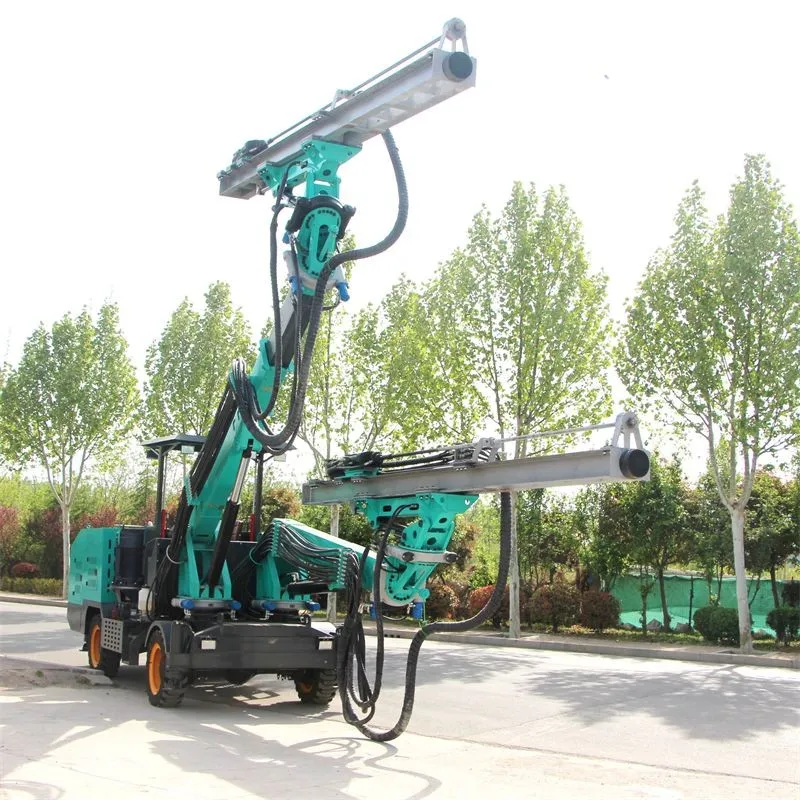

The most striking feature of this machine is its dual-boom design. Each boom consists of a two-section articulated arm, offering exceptional flexibility. Crucially, these two arms operate independently; each is capable of a full 360-degree rotation and can swing 45 degrees to the left or right. Whether overhead, underfoot, or along the sides, there is virtually no blind spot or inaccessible corner it cannot reach. Furthermore, it offers "all-directional" drilling capabilities, allowing you to drill exactly where and how you need to.
Drill to Full Depth-No Constant Rod Coupling Required
Each of its feed beams utilizes a telescopic design, capable of drilling a single-pass hole up to 4 meters deep (with options for even longer lengths via customization). What does this mean in practice? Previously, drilling a deep hole required multiple stops to couple additional drill rods; now, the machine can drive 4 meters straight in with a single thrust. This significantly reduces downtime during the drilling process and minimizes the risk of the drill bit getting jammed. It covers a drilling diameter range of 38 to 76 millimeters-whether for blast holes or precision anchor bolt holes, this machine handles them all with ease.
Dual Power Systems: A Robust Heartbeat
Don't be fooled by the additional drill arm - the internal core of this machine has been completely redesigned and upgraded. It is equipped with independent motor-pump assemblies, each delivering an output power of up to 55 kW, and features a heavy-duty hydraulic pump (model K3V112S-112R-32). Under coordinated system operation, the hydraulic pressure remains steadily maintained at 20 MPa, allowing it to easily penetrate even the hardest rock strata. Furthermore, it retains a Yuchai diesel engine as its power drive source, ensuring uninterrupted work progress even under power loss conditions.
The "Agile Giant" of the Jobsite
Despite its rapid work pace, this machine is far from cumbersome. It features a closed-loop hydraulic system and a four-wheel-drive powertrain. Coupled with a Model 340 torque converter, it can reach a top travel speed of 10 kilometers per hour-making it a surprisingly agile performer for a machine of its size. It is equipped with 880/295-20/7.5 wide-profile engineering tires, and-bolstered by the safety assurance of an air-cut brake system-it runs both steadily and swiftly within tunnels. When in operation, the four hydraulic outriggers extend to provide support, while the vehicle's fully enclosing protective covers are lowered into place, ensuring both safety and dust prevention.
