Jining Tongzhao Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of small four wheel pile driver in China. If you're going to wholesale durable small four wheel pile driver made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.
Products Description
Small four wheel pile driver– Detailed Introduction

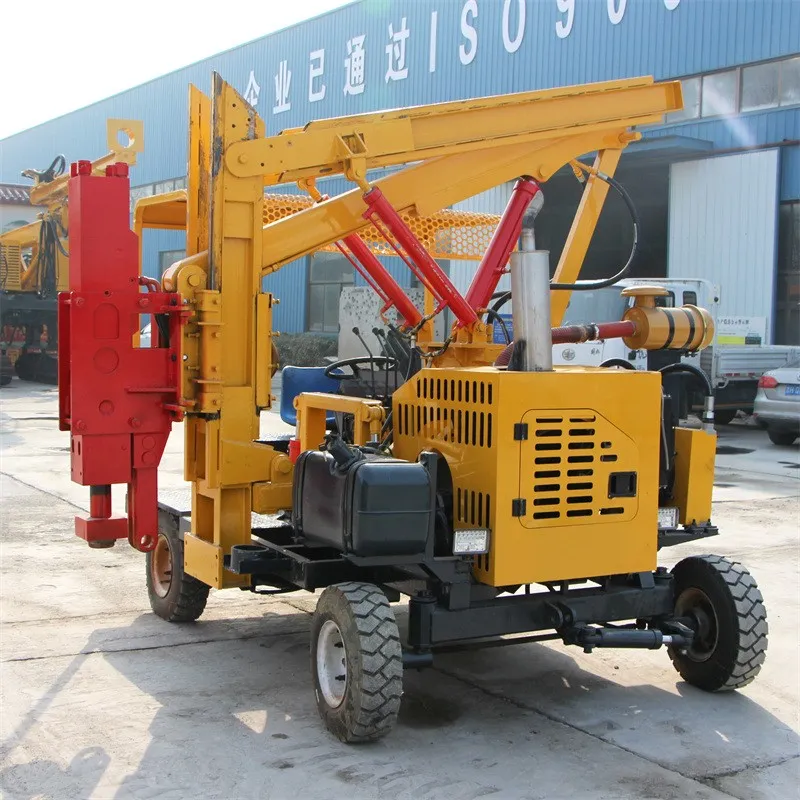

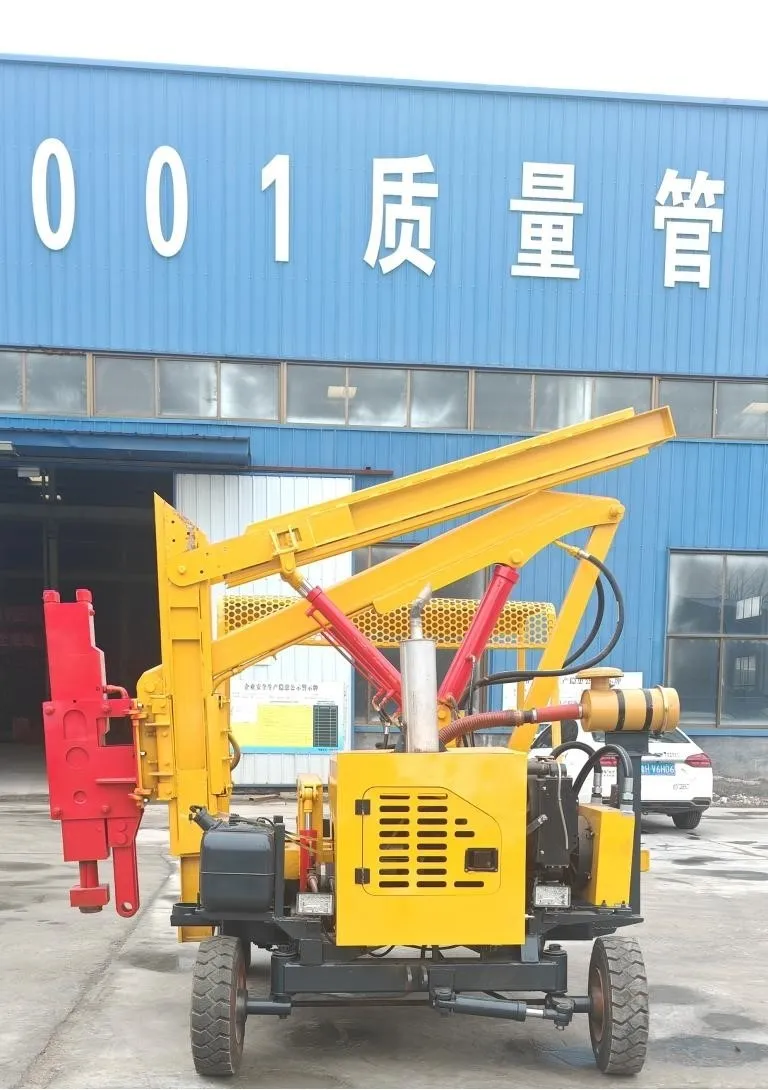

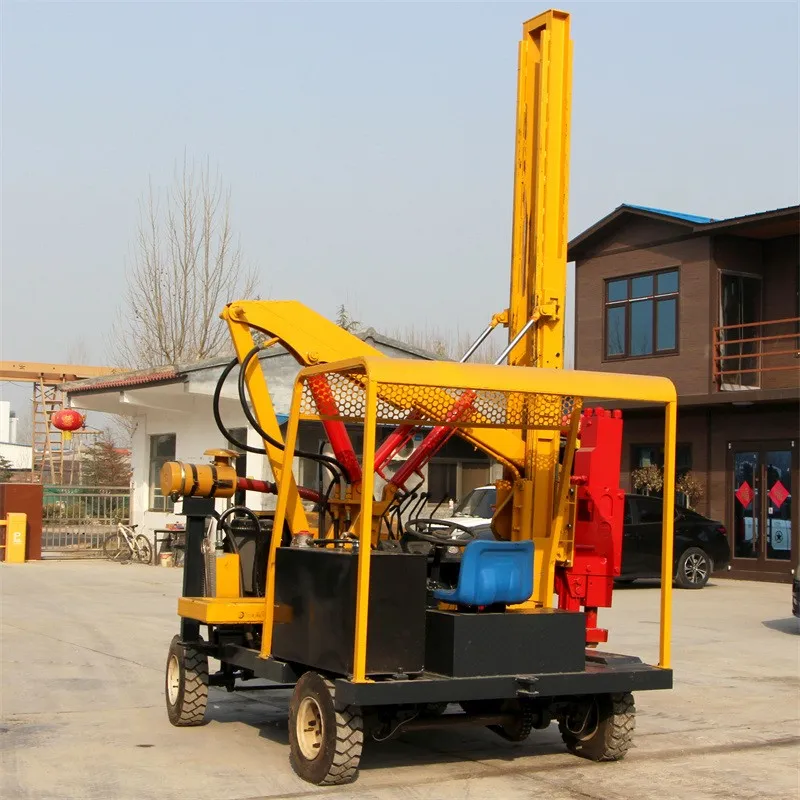

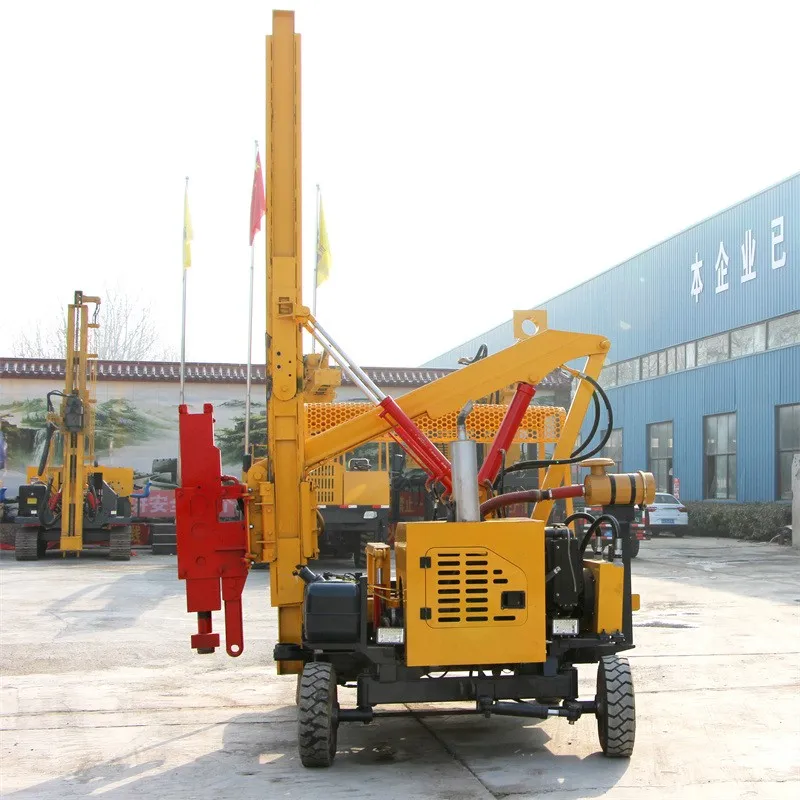

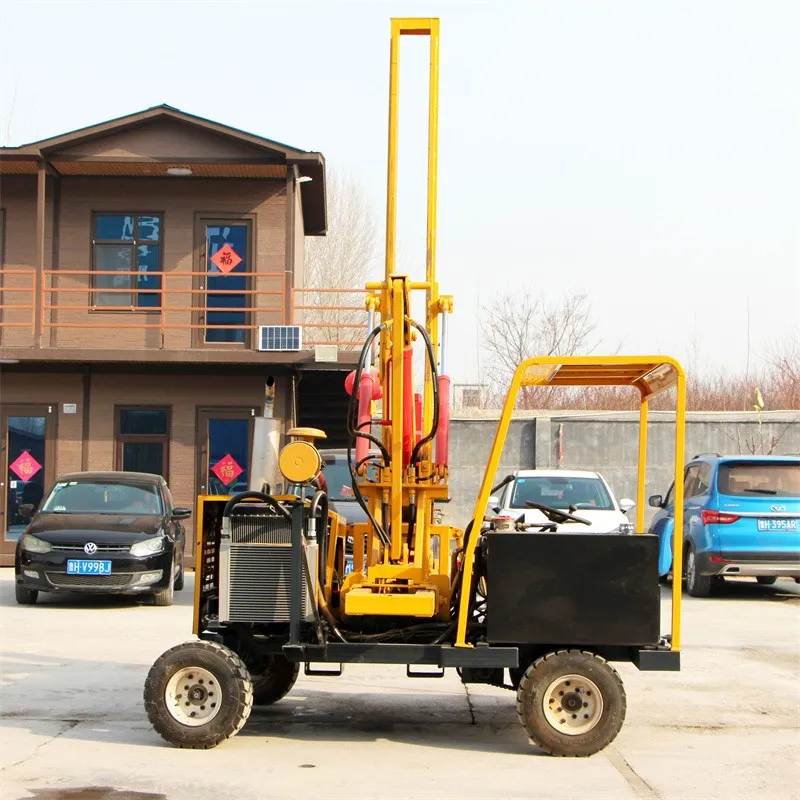

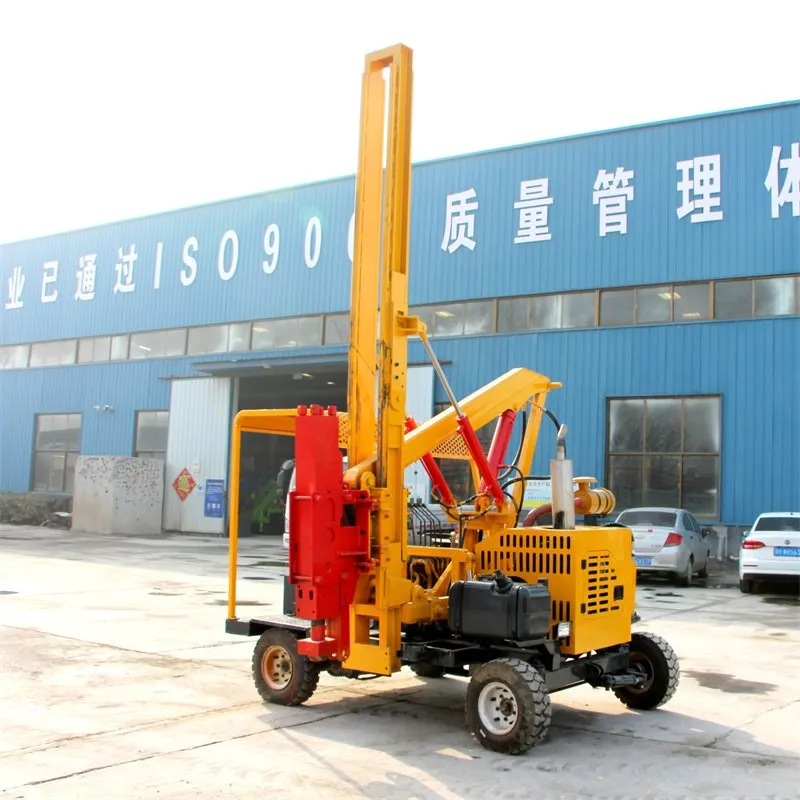

The small four-wheel simple pile driver is an entry-level small guardrail pile driver. It features a four-wheel chassis, diesel engine power, and a simple hydraulic direct hammer structure. With a small size, narrow body, and lowest price, it is specifically designed for rural roads, county and township roads, scattered supplementary piling, and small-scale projects for individual contractors.
The whole machine is compact. It requires no license plate, no tow truck, and can run short distances on its own. It can be operated by one person. It is primarily used for piling, with a simple structure and extremely low failure rate.
|
Four-wheel pile driver |
|
| Pile driver | Self-Made Four-Wheeled Integrated Guardrail Pile Driver and Extractor |
|
Engine model |
490(Yuchai) |
|
Rated speed (r/min) |
2400 |
|
Brake system |
Fuel Cut-off Braking |
|
Hydraulic travel |
|
|
Oil pump model |
High strength 40/40 |
|
Pressure (pma) |
16 |
|
Railway track model |
125 I-beam steel |
|
Hydraulic operating valve |
15 |
|
Hydraulic operating valve pressure (pma) |
16 |
|
The tubing is made of multi-layer steel wire high-pressure tubing. |
|
|
Hammer head model Operating System |
75/85 |
|
Hammer head function |
Mechanical type |
|
You can call 114 or 140 to order round piles and 130 for square piles. |
|
|
Overall dimensions (mm) |
3000*2300*2700 |
|
Overall machine weight |
2.8T |
The Small Four-Wheel Pile Driver is a compact, self-propelled engineering machine designed for efficient pile driving across a wide range of construction applications. Powered by a reliable diesel engine and equipped with a full hydraulic transmission system, this machine combines mobility, versatility, and power in a small-footprint package. Unlike large, stationary piling rigs that require external towing and extensive setup time, the small four-wheel pile driver can move independently across job sites and begin working immediately upon arrival.
The unit features a rugged four-wheel chassis with hydraulic motor drive, a robust hydraulic piling system with adjustable impact force, and a versatile power head that supports multiple drilling and driving modes. Whether you need to install highway guardrails, set foundation piles for solar farms, or drill holes for fencing and agricultural projects, this machine delivers consistent performance in diverse ground conditions-from soft sandy soils to hard rocky strata.
Why This Pile Driver Is Right for Your Fleet
For contractors and project managers seeking to expand their equipment fleet, the small four-wheel pile driver offers an exceptional return on investment. The three-in-one functionality eliminates the need to purchase separate piling, drilling, and extraction machines, while the compact wheeled design avoids the expense of separate transport trailers or low-boy trucks. Fuel-efficient diesel engines and high-efficiency hydraulic systems keep operating costs low, while durable construction reduces maintenance requirements and extends service life. With the ability to handle highway guardrails, solar farm foundations, agricultural fencing, and municipal infrastructure projects-all with a single machine-you maximize utilization across multiple job types and revenue streams.
