Wave Shaped Guardrail Piling Machine

Jining Tongzhao Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of wave shaped guardrail piling machine in China. If you're going to wholesale durable wave shaped guardrail piling machine made in China, welcome to get pricelist from our factory. All customized products are with high quality and competitive price.

In projects involving highway safety upgrades, the construction of new national and provincial roads, and the improvement of rural road networks, contractors frequently encounter a range of pain points: soft soil conditions that prevent direct pile driving; hard rock layers that resist penetration; the laborious task of extracting old piles; and the logistical hassle of relocating external air compressors between sites. Traditional split-system equipment-which requires separate trailers to transport multiple units such as air compressors, drilling rigs, and pile drivers-suffers from slow site entry, high labor requirements, excessive fuel consumption, and poor operational workflow continuity.

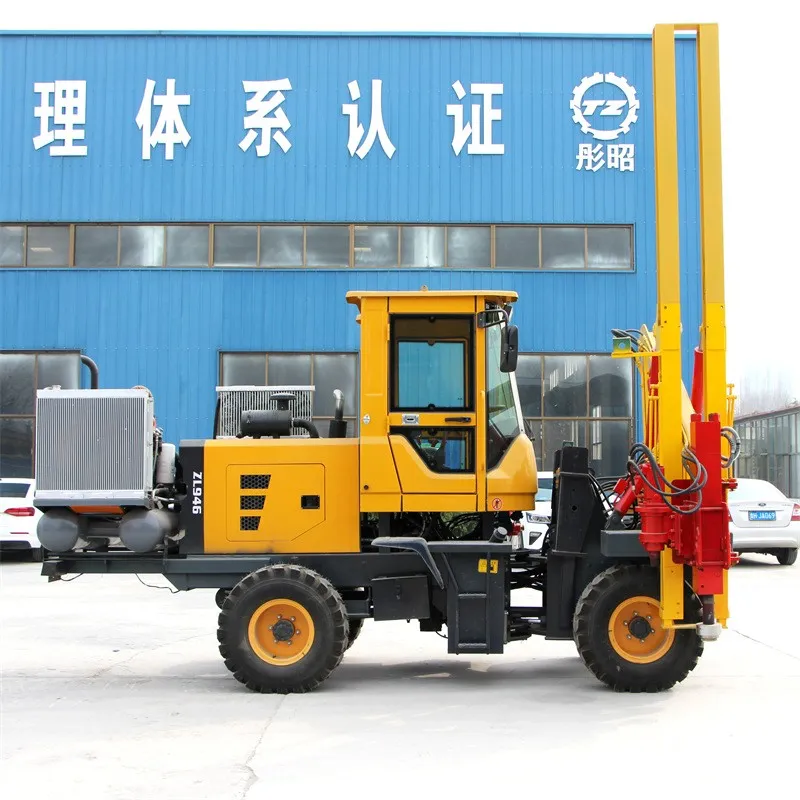

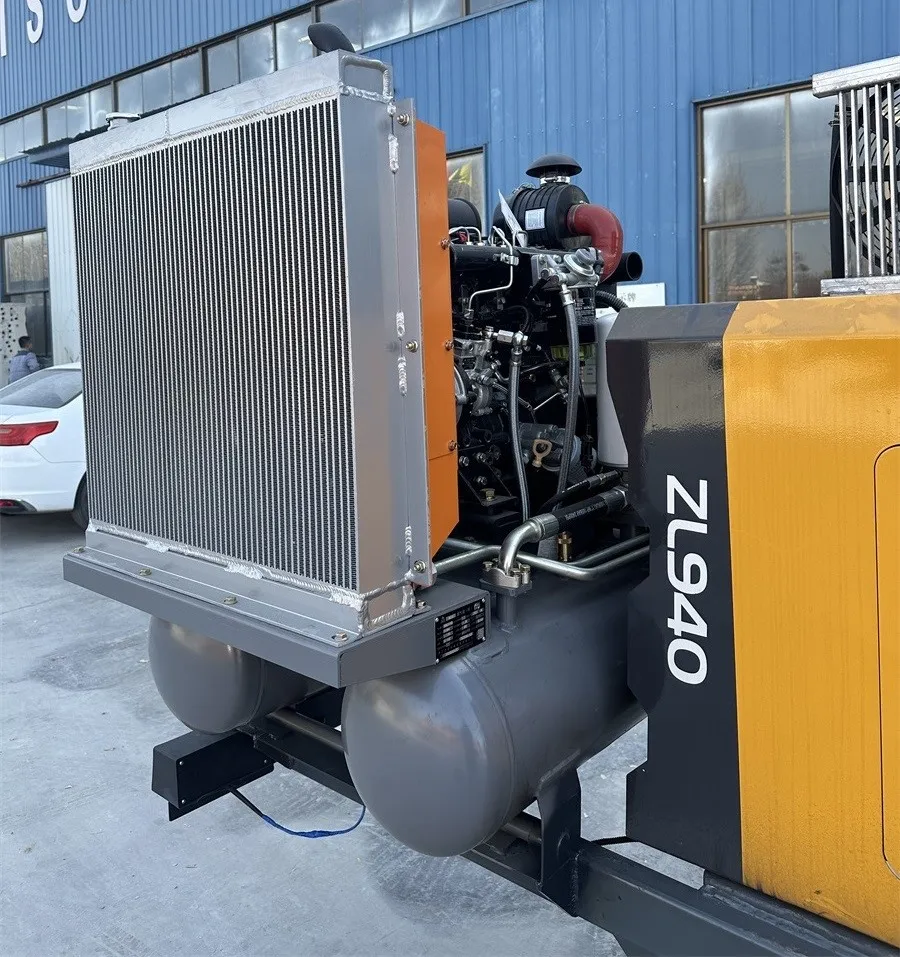

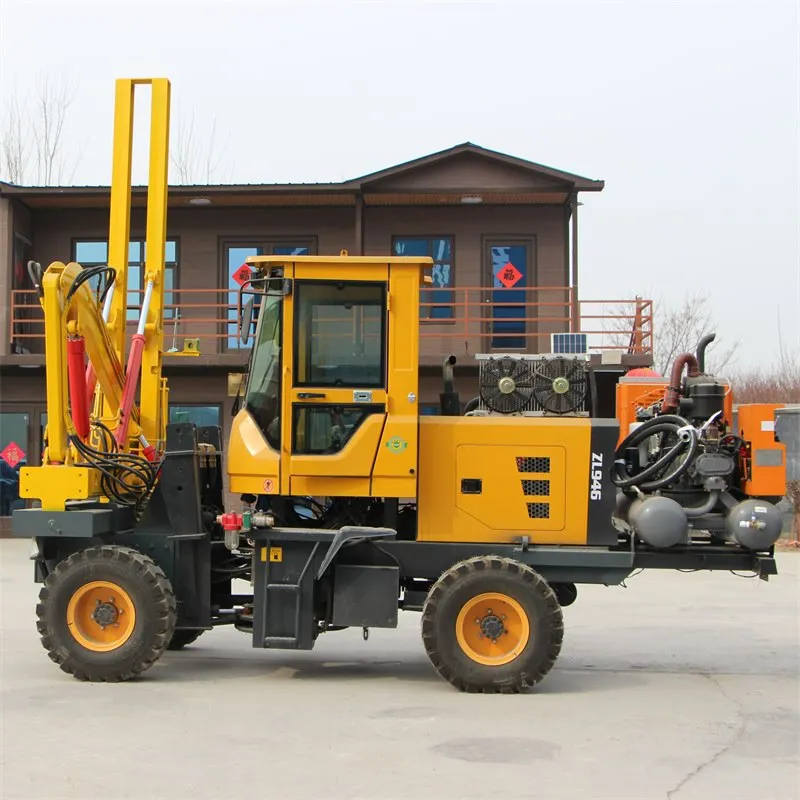

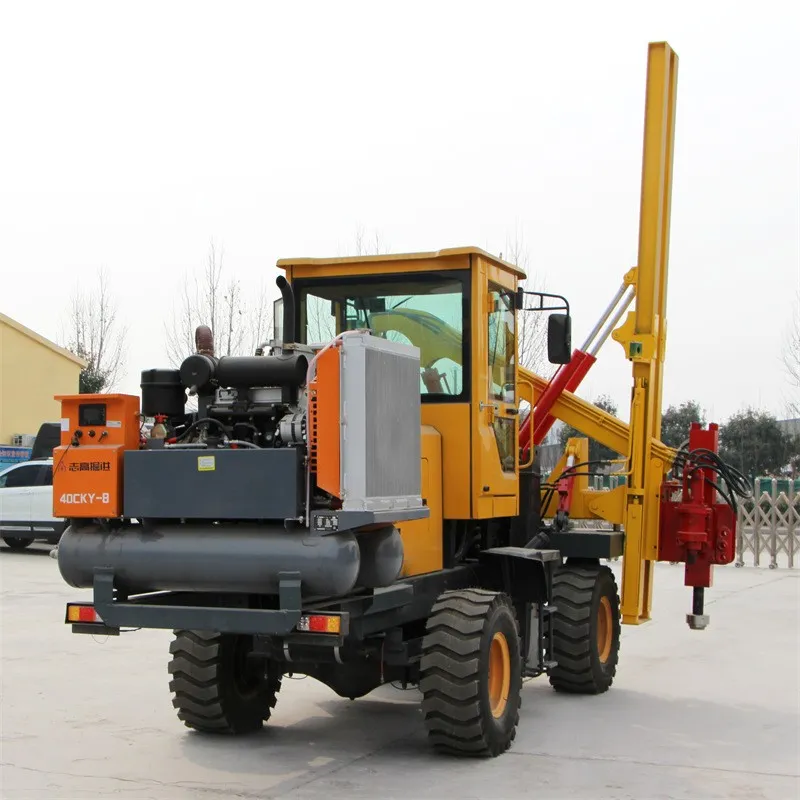

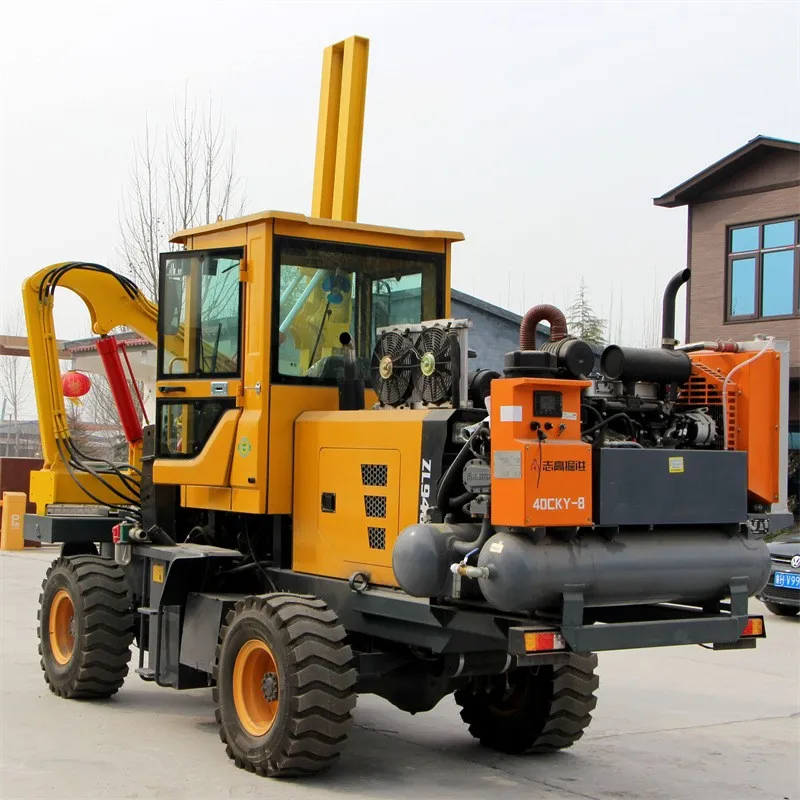

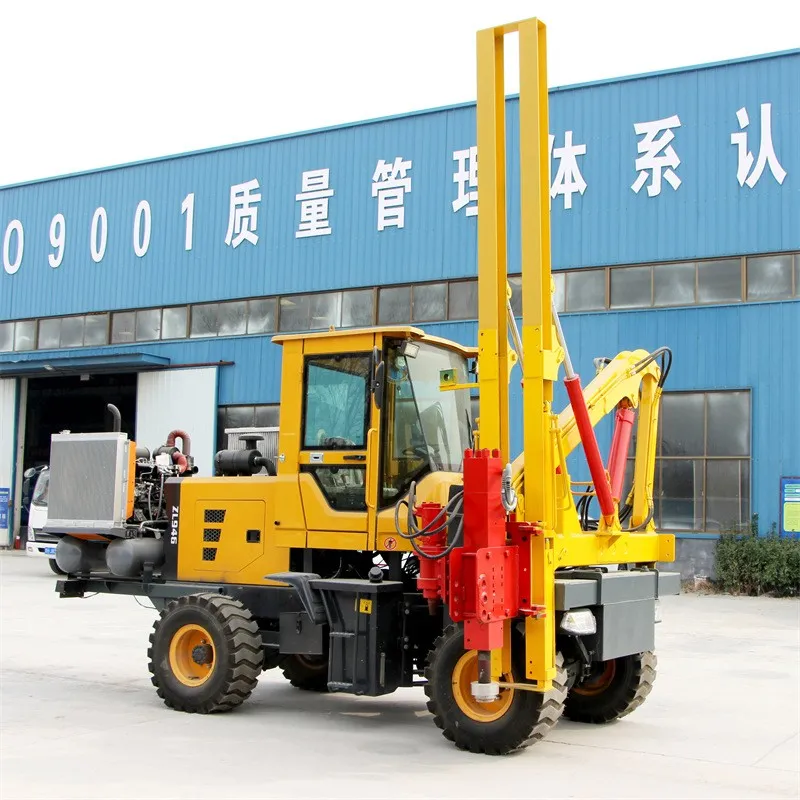

The Integrated Loader-Mounted Guardrail Pile Driver, Extractor, and Drill (featuring a self-contained air compressor) is a smart, all-in-one construction machine custom-engineered specifically for highway guardrail projects. It seamlessly combines four core functions-loader-style mobility, hydraulic pile driving, hydraulic pile extraction, and pneumatic drilling-into a single unit. With a screw-type air compressor integrated directly into the chassis, the machine requires no external power sources or auxiliary attachments; a single unit is sufficient to handle every step of the guardrail piling process. It currently stands as the leading high-efficiency equipment choice for highway guardrail construction, emergency repairs, and expansion projects.

Loader-Style Chassis Design: Unrestricted Mobility, High Efficiency, and "Work-on-the-Go" Capability



The equipment utilizes a proven, purpose-built loader chassis featuring four-wheel drive and ample power. Equipped with a heavy-duty drivetrain, it is capable of rapid transit across diverse jobsite terrains-including dirt roads, gravel paths, steep slopes, and muddy surfaces. In contrast to the limitations of crawler-type equipment-which suffers from slow transit speeds and the mandatory requirement for trailer transport-this loader-style model possesses its own independent motive power. It boasts rapid site-to-site transfer speeds, is unconstrained by road conditions, and eliminates the need for tow trucks. Whether shifting between adjacent road sections or undertaking short-distance transfers, the machine can drive itself directly to the new location, thereby significantly reducing transportation costs and minimizing waiting times.

The entire machine is outfitted with an air-brake system, ensuring responsive braking and secure parking-a critical safety feature for construction operations on slopes or in rugged outdoor environments. The enclosed operator cabin offers an expansive field of view, while the control console features a centralized, integrated design with a logical layout of buttons and hydraulic valves. The controls are intuitive and easy to master; even novice operators can quickly get up to speed and perform independent operations, minimizing fatigue during long shifts. This design makes the machine perfectly suited for the high-frequency, multi-point, and geographically dispersed work scenarios typical of modern construction sites. II. 3-in-1 Functionality: Driving, Extracting, and Drilling-One Machine Does the Work of Three, Covering Every Step of the Process.



This equipment breaks away from traditional single-function construction models, truly realizing multi-purpose utility and comprehensive process coverage. It independently handles the entire workflow-from driving piles for new construction to extracting piles from old roads and drilling through hard ground layers-without the need to switch equipment or utilize auxiliary machinery.

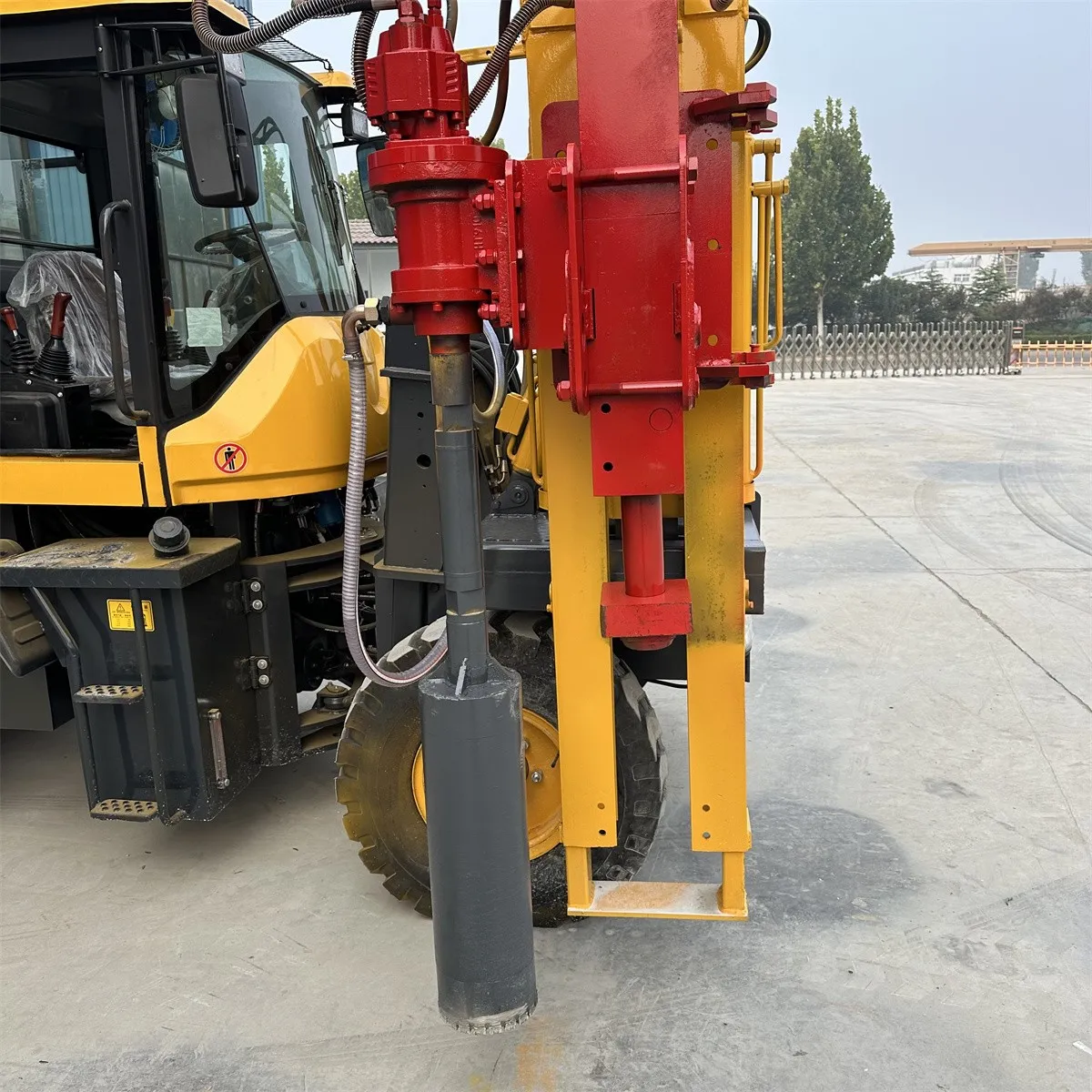

Leveraging a high-flow hydraulic system, the machine delivers ample impact force and stable frequency. It enables rapid and precise pile driving for standard-compliant corrugated guardrail piles-including round tubes, square tubes, and galvanized steel pipes. Equipped with adjustable vertical guide rails and auxiliary support legs, it effectively compensates for ground slope variations. This ensures that pile verticality, spacing, and penetration depth meet national acceptance standards, resulting in tightly embedded, highly stable piles. It completely eliminates issues such as loose, tilted, or shallow piles, offering exceptional efficiency for large-scale construction projects.

Designed for scenarios involving guardrail upgrades on aging roads, the replacement of damaged piles, and project rework or rectification, this equipment features a dedicated hydraulic pile extraction mechanism. It delivers strong clamping force and smooth lifting action, allowing for the complete extraction of old guardrail piles-even those that are rusted, deformed, or tilted-without damaging the roadbed or pavement surface. Compared to manual prying, excavation, or demolition via crushing,
